92-08BF01 (B-81) - Toro Lawn Tractor (1979) 6-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

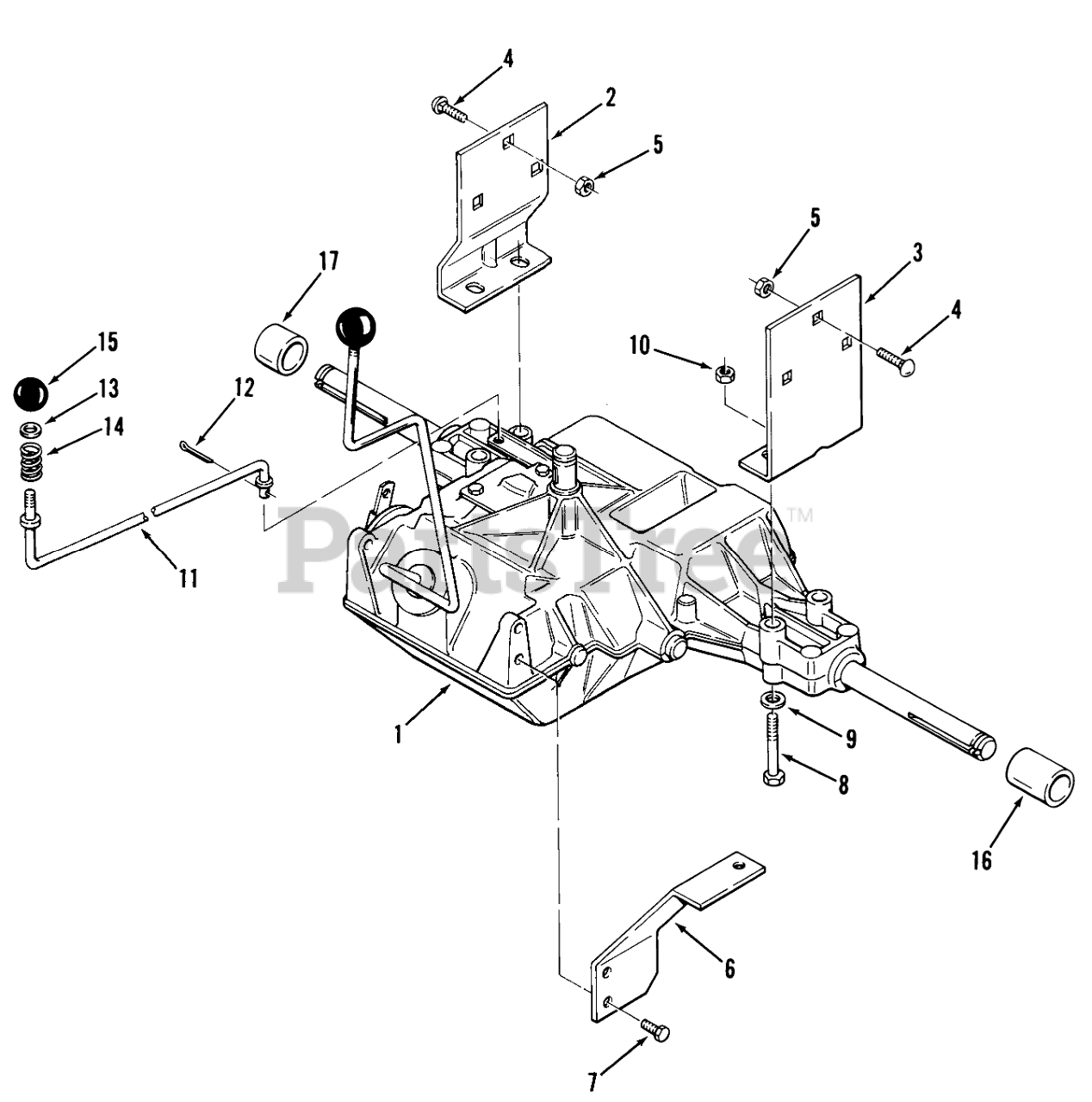

6-SPEED TRANSMISSION Parts Diagram

  • Title

1

Toro 107972

Transmission-Foote Model 4000-5

$

$

Not available

2

Toro 107970

Bracket-Rear Axle RH

$

$

Not available

3

Toro 107971

BRK-TRANS MTG LH

$

$

Not available

4

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

6

Toro 107786

Torque Strap

$

$

Not available

7

Toro 926696

Bolt
(Superseded to 9266964)

$7.99

$

Usually ships in 3-6 days

0

8

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 14

0

9

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

11

Toro 107974

ROD-HI/LO SHIFT

$

$

Not available

12

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 6390

Spring

$

$

Not available

15

Toro 8706

Knob

$

$

Not available

16

Toro 107503

Axle Spacer LH

$

$

Not available

17

Toro 107504

Axle Spacer RH
(Superseded to 110201)

$

$

Not available
