92-8948 - Toro Traction Pedal, ProLine/Groundsmaster 118 SOFT TRACTION PEDAL Parts Diagram

Traction Pedal, ProLine/Groundsmaster 118

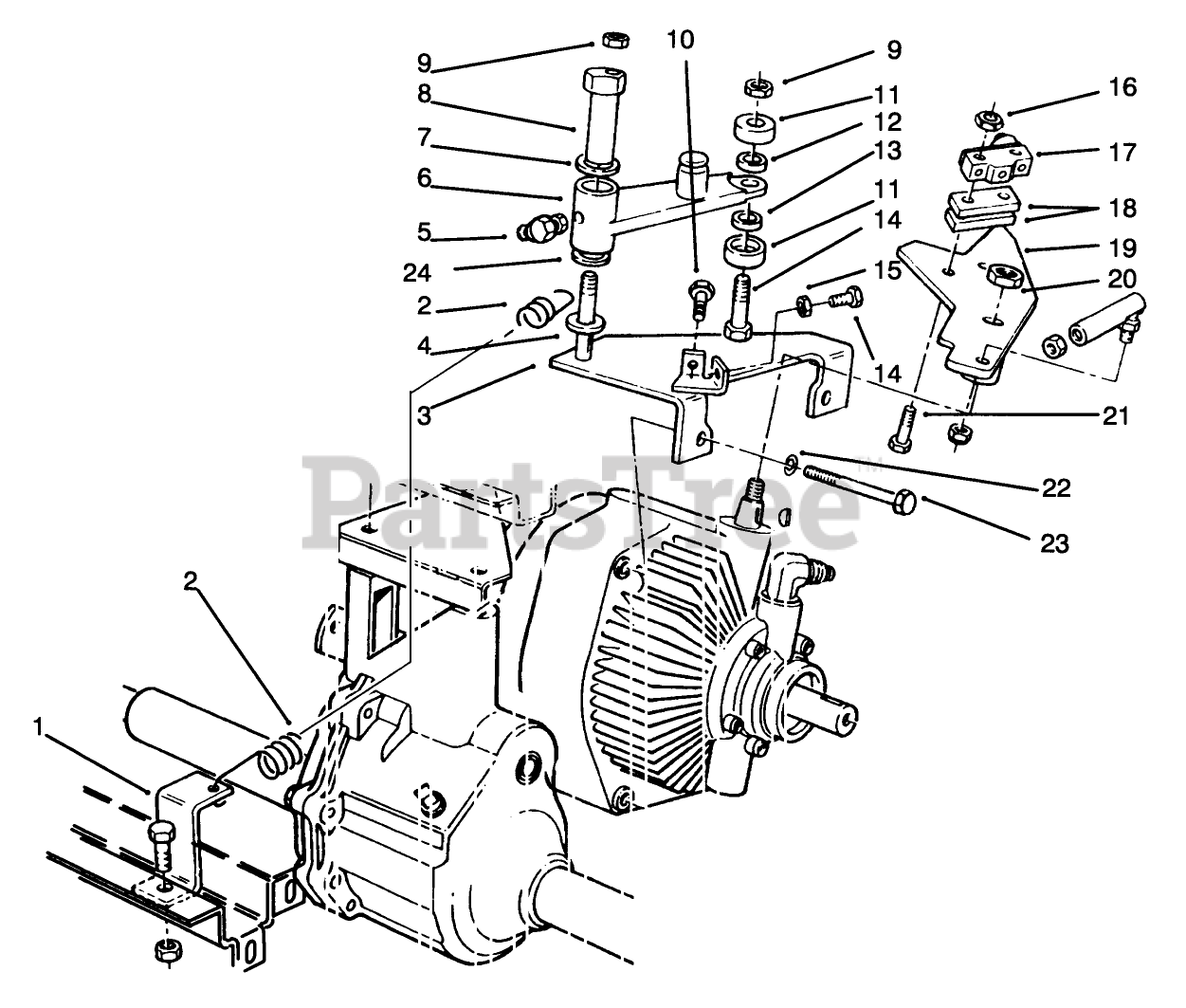

SOFT TRACTION PEDAL Parts Diagram

  • Title

1

Toro 92-6273

Bracket-Spring
(Superseded to 92-6273-03)

$

$

Not available

2

Toro 76-9430

SPRING-EXTENSION
(Superseded to 76-9430-03)

$35.99

$

Usually ships in 3-6 days

0

3

Toro 92-6270

Plate-Traction
(Superseded to 92-6270-03)

$235.99

$

Usually ships in 3-6 days

0

4

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

5

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

6

Toro 92-6289

Swing Arm Assembly (Incl. Ref.# 24)

$

$

Not available

7

Toro 3-6498

WASHER-THRUST

$7.49

$

In Stock, Qty 20+

0

8

Toro 76-8640

STUD-TRACTION

$30.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

11

Toro 251-307

BEARING-BALL
(Superseded to 251-259)

$17.99

$

In Stock, only 1 left!

0

12

Toro 92-6290

SPACER

$

$

Not available

13

Toro 75-5470

SPACER-BEARING

$3.99

$

Usually ships in 3-6 days

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

16

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

17

Toro 29-6163

SWITCH-MICRO

$116.99

$

Usually ships in 3-6 days

0

18

Toro 75-4130

PLATE-SWITCH

$19.99

$

Usually ships in 3-6 days

0

19

Toro 92-6269

Lever-Traction
(Superseded to 92-6269-03)

$

$

Not available

20

Toro 3296-25

NUT-LOCK, NI

$1.99

$

In Stock, only 2 left!

0

21

Toro 3250-46

SCREW-PPH

$24.99

$

Usually ships in 3-6 days

0

22

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

23

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

24

Toro 256-113

BUSHING-FLANGE

$7.49

$

Usually ships in 3-6 days

0
