920001 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 000101 - 026499) Auger And Chute Parts Diagram

24" Snow Blower, 6hp Tecumseh

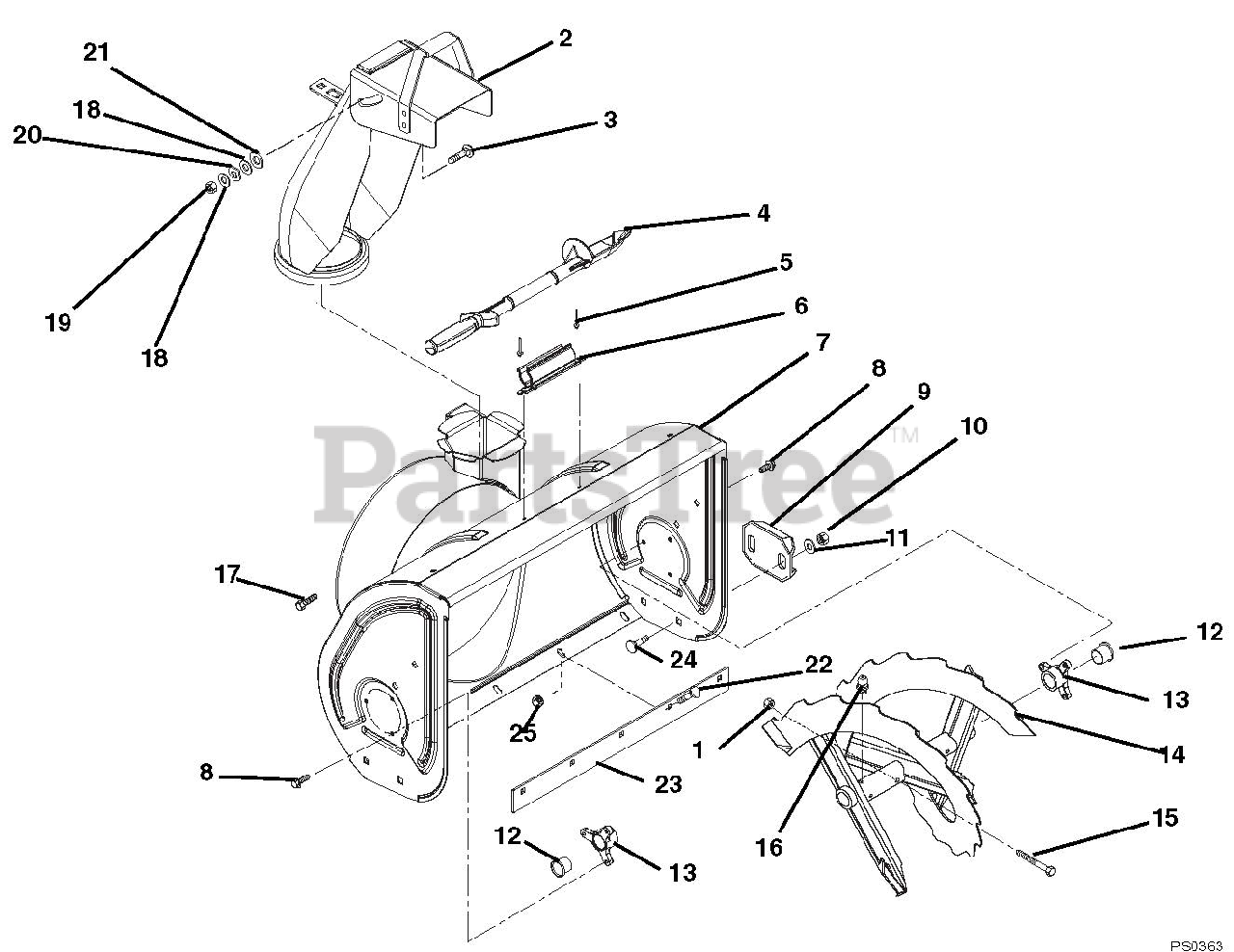

Auger And Chute Parts Diagram

  • Title

1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 52000200

CHUTE, DISCHARGE W/CAP & DECAL

$145.99

$

Usually ships in 4-12 days

0

3

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

4

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

5

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

6

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

7

Ariens 52000400

BLOWER HOUSING - 24"
(Superseded to 52001900)

$369.99

$

Usually ships in 4-12 days

0

8

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

In Stock, Qty 9

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 05500109

BSHG-FLG SPLIT NYLINER .75"ID

$3.99

$

In Stock, Qty 11

0

13

Ariens 05500103

BUSHING, RAKE SHAFT .75"

$15.99

$

In Stock, Qty 13

0

14

Ariens 53213100

RAKE, 24" RH, BLK SERR W/ZERK

Note: (Includes Items 16)

$120.99

$

In Stock, only 4 left!

0

14

Ariens 53213200

RAKE, 24" LH, BLK SERR W/ZERK

Note: (Includes Items 16)

$120.99

$

Usually ships in 4-12 days

0

15

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Items 1)

$3.49

$

In Stock, Qty 20+

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

17

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

21

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 10

0

22

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 00271459

BLADE, SCRAPER - 24" COMPACT

$30.99

$

In Stock, only 2 left!

0

24

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
