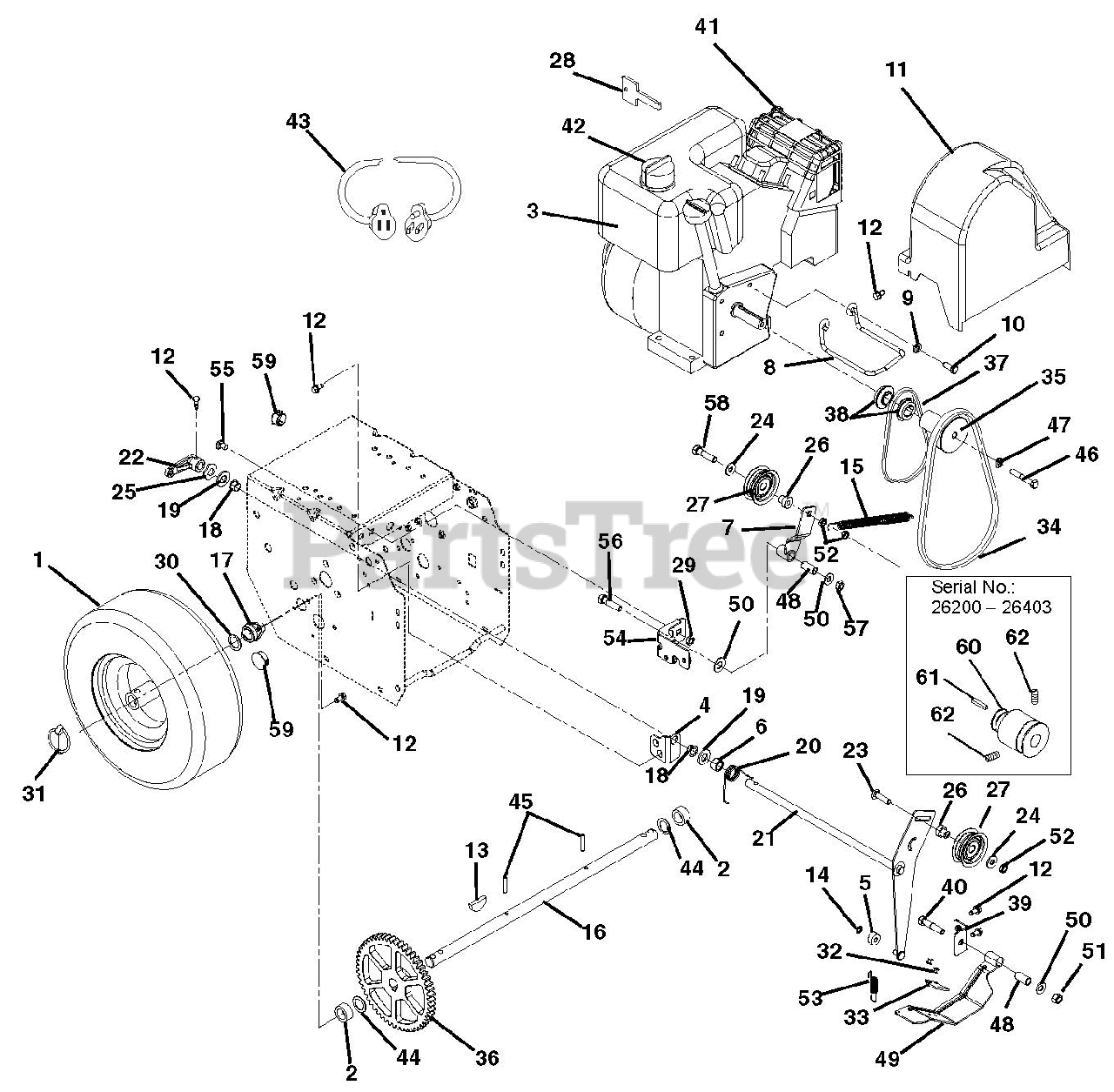

920001 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 000101 - 026499) Engine And Belt Drive Parts Diagram

24" Snow Blower, 6hp Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100223

TIRE/WHEEL, RH 4.10-6 PIN K478
(Superseded to 07101229)

$96.99

$

Usually ships in 4-12 days

0

1

Ariens 07100224

TIRE/WHEEL, LH 4.10-6 PIN K478
(Superseded to 07101228)

$91.99

$

In Stock, only 1 left!

0

1

Ariens 07100725

TIRE, 4.10-6 K478

$68.99

$

Usually ships in 4-12 days

0

2

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 08200228

ENGINE, 6HP TEC OHV 120V

Note: (Serial No.: 101 - 26199, 26404 and up)

$

$

Not available

3

Ariens 08200019

ENGINE, 7HP TEC OH195SA 120V

Note: (Serial No.: 26200 - 26403)

$

$

Not available

4

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$2.49

$

In Stock, only 2 left!

0

6

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, only 3 left!

0

7

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$16.99

$

Usually ships in 4-12 days

0

8

Ariens 00659500

FINGER, BELT
(Superseded to 03731800)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00659600

PLZ SEE SERVICE LETTER #L-2166

$

$

Not available

12

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

15

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$11.99

$

In Stock, Qty 11

0

16

Ariens 00494200

SHAFT, AXLE

$68.99

$

Usually ships in 4-12 days

0

17

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 6

0

18

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

19

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 08300326

SG-TORS .075 X .955

$3.49

$

In Stock, only 1 left!

0

21

Ariens 00495100

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

22

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$17.99

$

Usually ships in 4-12 days

0

23

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

25

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 10

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

27

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

28

Ariens 07532000

KEY, PUSH/PULL - TECUMSEH
(Superseded to 07500108)

$7.99

$

In Stock, only 4 left!

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

31

Ariens 07053700

PIN-LOK .31X1.75

$2.49

$

In Stock, Qty 8

0

32

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (included with item 49)

$0.99

$

In Stock, Qty 10

0

33

Ariens 00180500

PAD, BRAKE

Note: (included with item 49)

$10.99

$

In Stock, only 4 left!

0

34

Ariens 07200327

V-BELT, 4L-RAW EDGE
(Superseded to 07238500)

$28.99

$

In Stock, only 3 left!

0

35

Ariens 00493400

SHEAVE, ATTACHMENT DRIVE
(Superseded to 52006600)

Note: (Serial No.: 101 - 26199, 26404 and up)

$52.99

$

In Stock, only 1 left!

0

36

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$38.99

$

Usually ships in 4-12 days

0

37

Ariens 07200101

V-BELT, 3L-WRAPPED

$19.99

$

Usually ships in 4-12 days

0

38

Ariens 09735700

TRACTION SHEAVE HALF
(Superseded to 52006600)

Note: (Serial No.: 101 - 26199, 26404 and up)

$52.99

$

In Stock, only 1 left!

0

39

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

40

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

41

Ariens 21533500

PLUG, SPARK

$4.49

$

In Stock, Qty 18

0

42

Ariens 07531800

CAP, FUEL - TECUMSEH

$11.99

$

In Stock, only 2 left!

0

43

Ariens 02483100

CORD, ELECTRIC START CORD 120V

$34.99

$

In Stock, only 4 left!

0

44

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

45

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

46

Ariens 05904700

BLT-HEX .31-24X2.00 GR5

Note: (Serial No.: 101 - 26199, 26404 and up)

$

$

Not available

47

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (Serial No.: 101 - 26199, 26404 and up)

$0.99

$

In Stock, only 4 left!

0

48

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 9

0

49

Ariens 52000500

BRAKE ARM W/PAD

$22.99

$

In Stock, only 3 left!

0

50

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

51

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

53

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.49

$

In Stock, Qty 9

0

54

Ariens 00657051

WELDMENT, FRAME BRACKET

$30.99

$

Usually ships in 4-12 days

0

55

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

57

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

59

Ariens 07500022

PLUG, HOLE - 1.00" NYLON
(Superseded to 07500102)

$3.49

$

Usually ships in 4-12 days

0

60

Ariens 02027400

ENGINE SHEAVE, ONE-PIECE

Note: (Serial No.: 26200 - 26403)

$

$

Not available

61

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

Note: (Serial No.: 26200 - 26403)

$1.49

$

In Stock, Qty 5

0

62

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (Serial No.: 26200 - 26403)

$2.99

$

In Stock, Qty 17

0
