920012 - Ariens Compact 22" Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above)

Compact 22" Snow Blower, Ariens AX 208cc engine

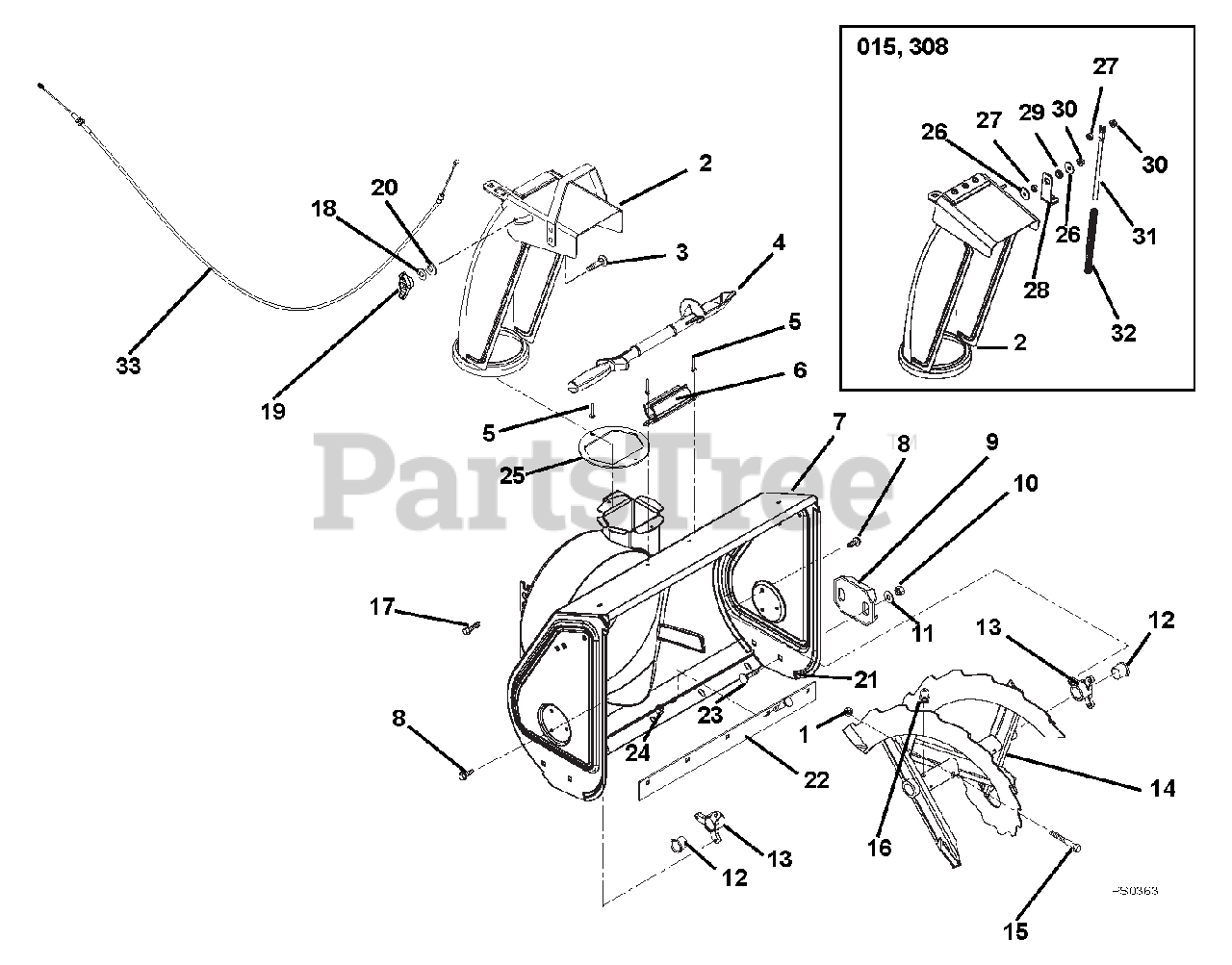

920012 - Ariens Compact 22" Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above) > Parts Diagrams (8) > Auger And Chute

  • Title
06529700

1

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

52001500

2

CHUTE, DISCHARGE W/CAP & DECAL

Part# 52001500

Note: (920012, 013, 014, 303, 307, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

52002900

2

CHUTE, DISCHARGE W/REM.CAP,DEC

Part# 52002900

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Not available

06200007

3

@BLT-RHDSSQNK .31-18X1.00 G5YZ

Part# 06200007

Note: (920012, 013, 014, 303, 307, 311,312)

OEM Warranty Repair Part for Ariens

Not available

00170200

4

DEVICE, SNOW CLEAN OUT

Part# 00170200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.61

06800028

5

RVT-POP .187 YZ

Part# 06800028

OEM Warranty Repair Part for Ariens

Not available

00170300

6

MOUNT, SNOW CLEAN OUT

Part# 00170300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

52000600

7

BLOWER HOUSING - 20"

Part# 52000600 (Superseded to 52002000)

Note: (920303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $229.77

52002500

7

BLOWER HOUSING, 22" HI ORANGE

Part# 52002500

Note: (920012, 013, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $233.61

52002600

7

BLOWER HOUSING, 24" HI ORANGE

Part# 52002600

Note: (920012, 013, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $307.39

52002700

7

BLOWER HOUSING, 26" HI ORANGE

Part# 52002700

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $221.31

07400034

8

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

02483859

9

SKID SHOE, REVERSIBLE - ORANGE

Part# 02483859

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

06529600

10

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06435700

11

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05500109

12

BSHG-FLG SPLIT NYLINER .75"ID

Part# 05500109

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

05500103

13

BUSHING, RAKE SHAFT .75"

Part# 05500103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

53213100

14

RAKE, 24" RH, BLK SERR W/ZERK

Part# 53213100

Note: (Includes Items 16) (920014, 015, 307, 308, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.63

53212300

14

AUGER, 20" RH, BLK SERR W/ZERK

Part# 53212300

Note: (Includes Items 16) (920012, 013, 303, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.63

53213200

14

RAKE, 24" LH, BLK SERR W/ZERK

Part# 53213200

Note: (Includes Items 16) (920014, 015, 307, 308, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

53212400

14

AUGER, LH 20", BLK SERR W/ZERK

Part# 53212400

Note: (Includes Items 16) (920012, 013, 303, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.33

53200500

15

SHEAR BOLT WITH NUT

Part# 53200500

Note: (Includes Items 1)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

07061300

16

ZERK,FITTING .25X.125 DRIVE IN

Part# 07061300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07411500

17

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06437200

18

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

Note: (920012, 013, 014, 303, 307, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07500105

19

KNOB,WING .31-18 UNC NYL/TALC

Part# 07500105

Note: (920012, 013, 014, 303, 307, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

06433600

20

WSHR-FL-NY .375X.75X.060

Part# 06433600

Note: (920012, 013, 014, 303, 307, 311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.42

06200120

21

BLT,RDSHHDSQSHNK .31-18X.62 YZ

Part# 06200120 (Superseded to 06200209)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00396659

22

BLADE, SCRAPER - 20" COMPACT

Part# 00396659

Note: (920303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

03884359

22

SCRAPER BLADE, 22" COMPACT

Part# 03884359

Note: (920012, 013, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

03884459

22

SCRAPER BLADE, 24" COMPACT HI

Part# 03884459

Note: (920014, 307, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

03884559

22

SCRAPER BLADE, 26" COMPACT HI

Part# 03884559

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06200004

23

@BLT-RHDSSQNK .38-16X.75 G5YZ

Part# 06200004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06543100

24

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03889400

25

BAFFLE, COMPACT DISCHARGE

Part# 03889400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06426600

26

WSHR-FL-STL .281X1.000X.063

Part# 06426600

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05501012

27

BSHG-SLV .265X.500X.219

Part# 05501012

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.06

04115359

28

BRACKET, CABLE ANCHOR

Part# 04115359

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

05500028

29

BUSHING, POLYLINER-.50 SNAPIN

Part# 05500028

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06543500

30

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00389000

31

ROD, DEFLECTOR CAP

Part# 00389000

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

08300013

32

SG-COMP .08X.40X6.50 14#/IN

Part# 08300013

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06900427

33

CABLE, DEFLECTOR-COMPACT

Part# 06900427

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48
