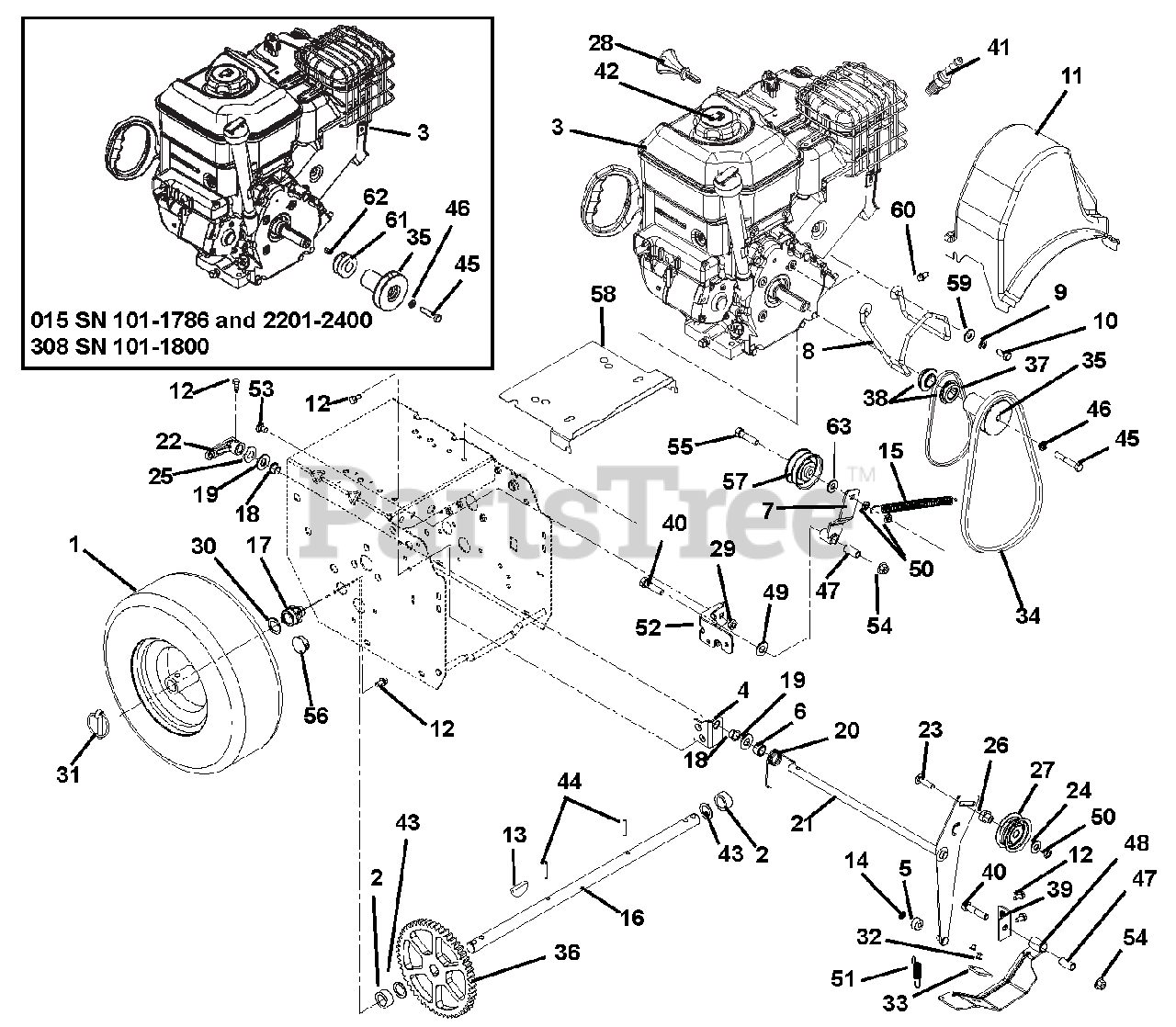

920012 - Ariens Compact 22" Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above)

Compact 22" Snow Blower, Ariens AX 208cc engine

920012 - Ariens Compact 22" Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above) > Parts Diagrams (8) > Engine And Belt Drive

  • Title
07100223

1

TIRE/WHEEL, RH 4.10-6 PIN K478

Part# 07100223

Note: (920012, 013, 014, 303, 307,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $79.66

07100224

1

TIRE/WHEEL, LH 4.10-6 PIN K478

Part# 07100224

Note: (920012, 013, 014, 303, 307,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $79.66

07100725

1

TIRE, 4.10-6 K478

Part# 07100725

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.10

07100828

1

TIRE/WHEEL, RH 13X5-6 PIN K478

Part# 07100828

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $102.80

07100829

1

TIRE/WHEEL, LH 13X5-6 PIN K478

Part# 07100829

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $102.80

07100122

1

TIRE, 13X5.00-6 K478

Part# 07100122

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

05500140

2

BSHG-SLV .766 X 1.125 X .500

Part# 05500140

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08200606

3

ENGINE, ARIENS 208CC 120V, ALT

Part# 08200606

Note: (920012)

OEM Warranty Repair Part for Ariens

Not available

08200514

3

ENGINE, SUBARU SX17 SNOW 120V

Part# 08200514

Note: (920013)

OEM Warranty Repair Part for Ariens

Not available

08200501

3

ENGINE, BRIGGS SNOW 900,RECOIL

Part# 08200501

Note: (920303, 307,311)

OEM Warranty Repair Part for Ariens

Not available

08200608

3

ENGINE, BRIGGS 900, 120V 60W

Part# 08200608

Note: (920014)

OEM Warranty Repair Part for Ariens

Not available

08200713

3

ENGINE, BRIGGS SNOW 900, 240V

Part# 08200713

Note: (920312)

OEM Warranty Repair Part for Ariens

Not available

08200604

3

ENGINE, BRIGGS SNOW 1150, 120V

Part# 08200604

Note: (920015 SN 101-1786 and 2201-2400)

OEM Warranty Repair Part for Ariens

Not available

08200603

3

ENGINE, BRIGGS SNOW 1150, 240V

Part# 08200603

Note: (920308 SN 101-1800)

OEM Warranty Repair Part for Ariens

Not available

08200616

3

ENGINE,BRIGGS PF 1150,120V,3/4

Part# 08200616

Note: (920015 SN 1787-2200 and 2401 and up)

OEM Warranty Repair Part for Ariens

Not available

08200617

3

ENGINE, BRIGGS 1150, 240V, 3/4

Part# 08200617

Note: (920308 SN 1801 and up)

OEM Warranty Repair Part for Ariens

Not available

00495051

4

BRACKET, MOUNT - IDLER ARM

Part# 00495051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

05500037

5

BSHG,SLV .265 X .625 X .375

Part# 05500037 (Superseded to 05500820)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500107

6

BSHG-SLV .510X.751X.475

Part# 05500107

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00493600

7

WELDMENT, TRACTION IDLER ARM

Part# 00493600

OEM Warranty Repair Part for Ariens

Not available

03881600

8

FINGER, BELT

Part# 03881600 (Superseded to 04561800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.95

06307400

9

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947300

10

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03881000

11

COVER, COMPACT BELT

Part# 03881000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.95

07400034

12

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06601200

13

KEY-WDRF .25X.750X.313 SAE91

Part# 06601200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.09

05717600

14

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.31

08316400

15

SG-TENS .062X.56X8.0 WLD 11

Part# 08316400 (Superseded to 08300538)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00494200

16

SHAFT, AXLE

Part# 00494200

Note: (920012, 013, 014, 303, 307,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

03881800

16

AXLE, COMPACT 920,XXX 15" TIRE

Part# 03881800

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

05500101

17

BSHG .75X1.125X.65

Part# 05500101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05500026

18

BUSHING, POLYLINER-.50 SPLIT

Part# 05500026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.21

06441900

19

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

08300326

20

SG-TORS .075 X .955

Part# 08300326

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00495167

21

WELDMENT, ATTACHMENT IDLER ARM

Part# 00495167 (Superseded to 04892167)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

01987100

22

ARM, CLUTCH - ATTACHMENT

Part# 01987100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06200124

23

BLT-RDHDSQSHNK.31-18X1.13 G5YZ

Part# 06200124

OEM Warranty Repair Part for Ariens

Not available

06435700

24

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400005

25

WSHR-WAVE .50X.75X.015 .13FRHT

Part# 06400005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01213100

26

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

02457400

27

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

07500114

28

KEY, PUSH/PULL BRIGGS

Part# 07500114

Note: (920303, 307, 308,311,312)

OEM Warranty Repair Part for Ariens

Not available

07500117

28

KEY, PUSH/PULL SUBARU

Part# 07500117

Note: (920013)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07500130

28

KEY, IGNITION ROTARY B&S

Part# 07500130 (Superseded to 02460700)

Note: (920014, 015)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06543100

29

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06441400

30

WSHR-FL-STL.754X1.125X.062YWZC

Part# 06441400

Note: (920012, 013, 014, 303, 307,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500917

30

BSHG-SLV .75X1.12X1.062 NYL BK

Part# 05500917

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07053700

31

PIN-LOK .31X1.75

Part# 07053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06800028

32

RVT-POP .187 YZ

Part# 06800028

Note: (included with item 48)

OEM Warranty Repair Part for Ariens

Not available

00180500

33

PAD, BRAKE

Part# 00180500

Note: (included with item 48)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07200513

34

V-BELT, HA-RAW EDGE

Part# 07200513 (Superseded to 07200725)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

04209700

35

SHEAVE, AUGER - COMPACT

Part# 04209700 (Superseded to 52006500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $50.25

00657800

36

SPUR GEAR, 54T .75ID X 6.75PD

Part# 00657800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

07200101

37

V-BELT, 3L-WRAPPED

Part# 07200101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

09735700

38

TRACTION SHEAVE HALF

Part# 09735700 (Superseded to 52006600)

Note: (920012, 013, 014, 015 SN 1787-2200 and 2401 and up, 303, 307, 308,311,312 SN 1801 and up)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

00495251

39

BRACKET, MOUNT - BRAKE

Part# 00495251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

05958500

40

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

21547500

41

PLUG, SPARK

Part# 21547500

Note: (920014, 015, 303, 307, 308,311,312)

OEM Warranty Repair Part for Ariens

Not available

21547200

41

PLUG, SPARK SUBARU

Part# 21547200

Note: (920013)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.01

07500115

42

CAP, FUEL - BRIGGS & STRATTON

Part# 07500115 (Superseded to 07500013)

Note: (920014, 015, 303, 307, 308,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

07500116

42

CAP, FUEL SUBARU

Part# 07500116

Note: (920013)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.23

06441400

43

WSHR-FL-STL.754X1.125X.062YWZC

Part# 06441400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05800300

44

PIN-ROLL .188X1.25

Part# 05800300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05901401

45

@BLT-HEX .31-24X1.75 GR5 YWZC

Part# 05901401

Note: (920013, 014, 015 SN 1787-2200 and 2401 and up, 303, 307, 308,311,312 SN 1801 and up)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05958600

45

BLT-HEX .38-24X2.0 YWZC

Part# 05958600

Note: (920012)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05958800

45

BLT-HEX .44-20X1.5 YWZC

Part# 05958800 (Superseded to 05900039)

Note: (920015 SN 101-1786 and 2201-2400, 303, 307, 308 SN 101 - 1800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06307400

46

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

Note: (920013, 014, 015, 303, 307, 308,311,312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06308800

46

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

Note: (920012)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500106

47

BSHG-SLV .385X.500X1.045

Part# 05500106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

52000500

48

BRAKE ARM W/PAD

Part# 52000500

Note: (includes items 32 and 33)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

06436200

49

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06500011

50

@NUT-LK-CTR-JAM .31-18 YWZC

Part# 06500011

OEM Warranty Repair Part for Ariens

Not available

08300104

51

SPRING-EXT .437 X .438 X 2.64

Part# 08300104

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

00657051

52

WELDMENT, FRAME BRACKET

Part# 00657051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06212200

53

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06542000

54

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05952400

55

@BLT-HEX .31-18X1.50 GR5 YWZC

Part# 05952400

OEM Warranty Repair Part for Ariens

Not available

07500102

56

PLUG, HOLE - 1.00" FLEXTEMP

Part# 07500102

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07300525

57

IDLER,1.875" OD

Part# 07300525 (Superseded to 52007100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

03880851

58

BAFFLE,ENGINE,SMALL BLOCK

Part# 03880851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06437200

59

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07400104

60

SCR-TAP .25-20X.50 LGHWH TR YZ

Part# 07400104

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.76

04208900

61

ENGINE SHEAVE, TRACTION

Part# 04208900

Note: (920015 SN 101-1786 and 2201-2400, 308 SN 101-1800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.31

06600215

62

KEY-SQ .188X.188X.375

Part# 06600215

Note: (920015 SN 101-1786 and 2201-2400, 308 SN 101-1800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06446300

63

WSHR-FL-STL .344X1.125X.135

Part# 06446300

OEM Warranty Repair Part for Ariens

Not available
