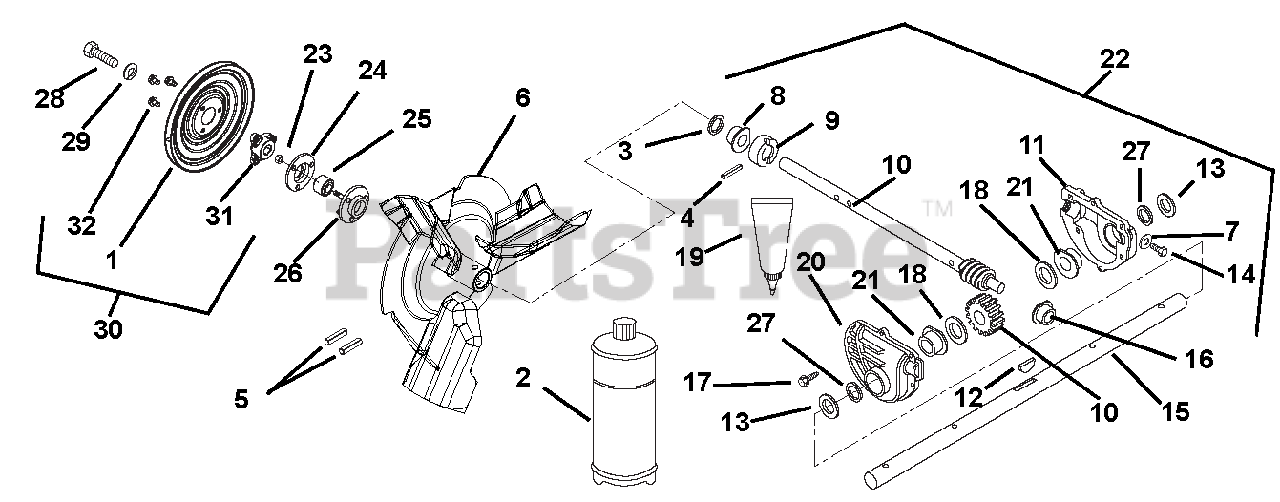

920012 - Ariens Compact 22" Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above) > Parts Diagrams (8) > Gear Case And Impeller

  • Title
00268951

1

PULLEY,SPIN FORM SINGLE GROOVE

Part# 00268951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

00068800

2

ARIENS L3 LUBE, 8 OZ BOTTLE

Part# 00068800

Note: (GEARCASE CAPACITY = 2.5 OZ)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05600004

3

SEAL-OIL.748X1.378X.276 RBR OD

Part# 05600004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05804900

4

@PIN-GRV .188X1.25 TP E ALLOY

Part# 05804900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05803700

5

PIN-ROLL .250X1.75

Part# 05803700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03835551

6

IMPELLER, COMPACT 12" 3-BLADE

Part# 03835551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

06442500

7

WSHR-FIBER .437X.656X.032

Part# 06442500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05511200

8

BSHG-FLG .750X1.000X.750X1.250

Part# 05511200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00272100

9

THRUST COLLAR, .75" ID

Part# 00272100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

53212500

10

SHAFT AND WORM GEAR ASSEMBLY

Part# 53212500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

00291100

11

GEARCASE CASTING, MACHINED LH

Part# 00291100 (Superseded to 52004900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

06609300

12

KEY-WDRF .19X.63 HRD #61

Part# 06609300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.03

06439000

13

@WSHR-FL-STL.812X1.50X.135YWZC

Part# 06439000

Note: (920014, 303, 307, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500917

13

BSHG-SLV .75X1.12X1.062 NYL BK

Part# 05500917

Note: (920012, 013, 015, 308, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07417000

14

SCR-TAP .38-16X.75 ROLOK YZ WX

Part# 07417000 (Superseded to 07400110)

OEM Warranty Repair Part for Ariens

Not available

00260500

15

SHAFT, RAKE - 20" (.750 DIA)

Part# 00260500

Note: (920303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

03885800

15

SHAFT, RAKE - 22" (.750 DIA)

Part# 03885800

Note: (920012, 013, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

00263000

15

SHAFT, RAKE - 24" (.750 DIA)

Part# 00263000

Note: (920014, 307, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

03885300

15

SHAFT, RAKE - 26" (.750 DIA)

Part# 03885300

Note: (920015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

05520600

16

BSHG-FLG .502X1X.750

Part# 05520600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07412400

17

@SCR-TAP .25-20X1.00 HWH TR YZ

Part# 07412400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06441500

18

WSHR-FL-STL.755X1.375X.062YWZC

Part# 06441500

OEM Warranty Repair Part for Ariens

Not available

00031700

19

LOCTITE 518 GASKET--6ML TUBE

Part# 00031700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

00291200

20

GEARCASE CASTING, MACHINED RH

Part# 00291200 (Superseded to 52003300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

05531100

21

BSHG-FLG .753X1.127X.500X1.501

Part# 05531100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

53212700

22

GEARCASE, 24" ALUM, SMALL CD

Part# 53212700

Note: (contains 3-4, 7-12, 14-21, 27) (014, 307, 312)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $201.18

53212600

22

GEARCASE, 20" ALUM, SMALL CD

Part# 53212600

Note: (contains 3-4, 7-12, 14-21, 27) (303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $221.31

53900500

22

GEAR CASE ASSEMBLY - 22" ALUM.

Part# 53900500

Note: (contains 3-4, 7-12, 14-21, 27 (012, 013, 311)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $172.12

52001700

22

GEAR CASE ASSEMBLY - 26" ALUM.

Part# 52001700

Note: (contains 3-4, 7-12, 14-21, 27 (015, 308)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $172.12

06529700

23

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

01014200

24

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

05406300

25

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

00428700

26

BEARING FLANGE

Part# 00428700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05618900

27

SEAL-OIL .750X1.375X.250

Part# 05618900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05947300

28

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06307400

29

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

52001800

30

PULLEY WITH HUB

Part# 52001800

Note: (Includes items 1, 31, 32)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

00268901

31

PULLEY HUB, BOLT-ON D-BORE .75

Part# 00268901

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07411500

32

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88
