920013 - Ariens Compact 22" Snow Blower (SN: 035000 - 074999) Gear Case And Impeller Parts Diagram

Compact 22" Snow Blower

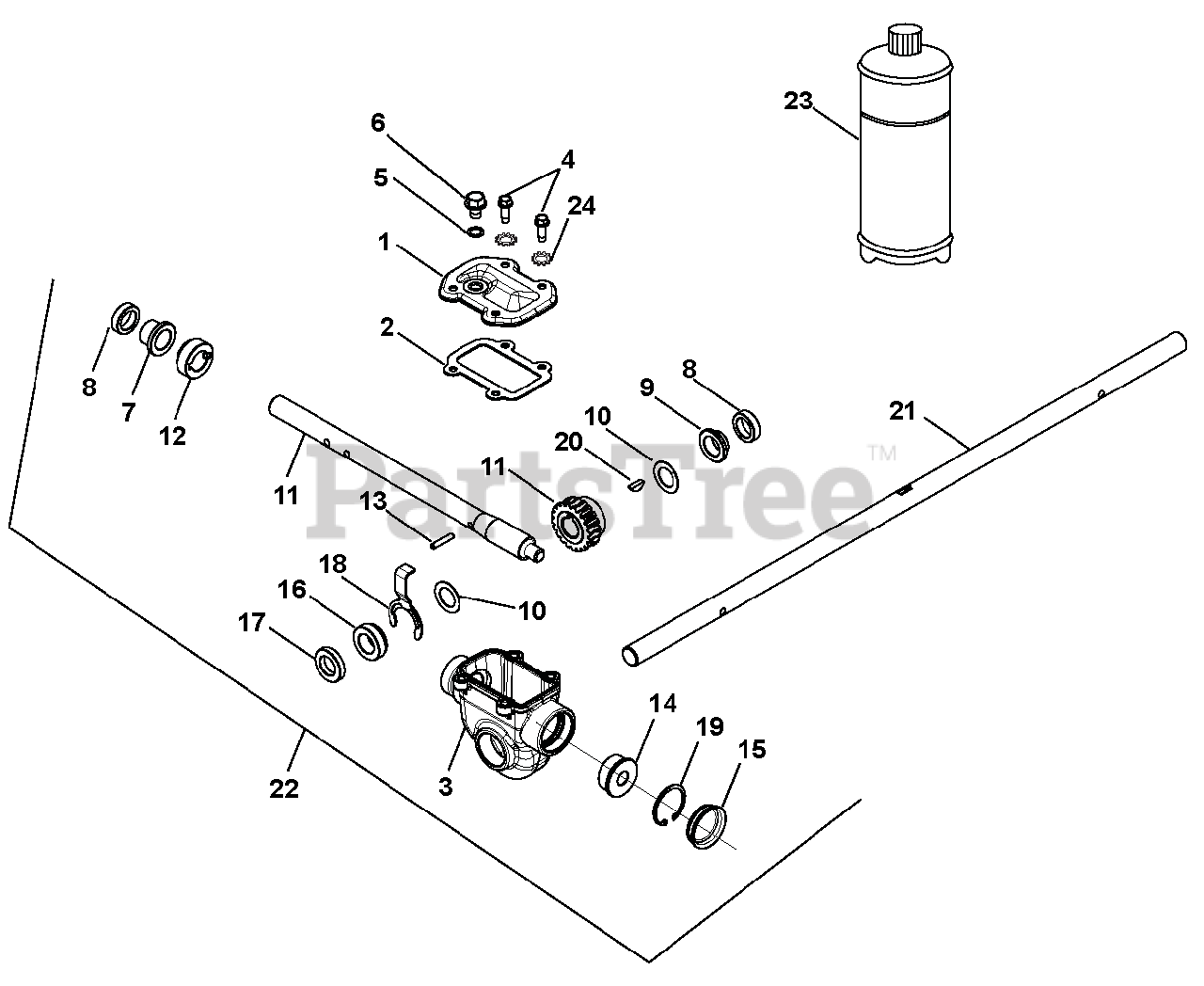

Gear Case And Impeller Parts Diagram

  • Title

1

Ariens 04280251

COVER, TOP - COMPACT

$21.99

$

Usually ships in 4-12 days

0

2

Ariens 04282400

GASKET, TOP - COMPACT GEARCASE

$4.99

$

In Stock, Qty 9

0

3

Ariens 04276800

GEARCASE, COMPACT MACHINED

$65.99

$

Usually ships in 4-12 days

0

4

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

5

Ariens 06400920

WSHR-BND-SEAL .38X.75X.11 GALV

$0.99

$

In Stock, Qty 20+

0

6

Ariens 07400110

@SCR-ROLOK .38-16X.50 HWH YWZC
(Superseded to 07400201)

$3.99

$

In Stock, only 1 left!

0

7

Ariens 05501020

BSHG-FLG .755X.878X.75X1.25

$9.99

$

Usually ships in 4-12 days

0

8

Ariens 05600501

SEAL-OIL .748X1.125X.312 TB2-H
(Superseded to 05600509)

$6.99

$

In Stock, Qty 8

0

9

Ariens 05501036

BSHG-FLG .755X.878X.424X1.25
(Superseded to 05501106)

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06400912

WSHR-FL-STL .760X1.225X.032 YZ

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 52003400

SHAFT AND WORM GEAR ASSEMBLY

$88.99

$

In Stock, only 3 left!

0

12

Ariens 04277000

THRUST COLLAR, .75" ID SLIPFIT

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 05800207

PIN-STR .188X1.00 6150

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05501023

BSHG-FLG .503X1.303X.62X1.465
(Superseded to 05501108)

$7.49

$

Usually ships in 4-12 days

0

15

Ariens 04302800

COVER, GEAR CASE 1.50"

$16.99

$

In Stock, only 2 left!

0

16

Ariens 05501034

BSHG-FLG COMPACT, RIGHT
(Superseded to 05501107)

$18.99

$

In Stock, only 1 left!

0

17

Ariens 05600440

SEAL-OIL .748X1.300X.250 TB2-H
(Superseded to 05600508)

$6.99

$

In Stock, Qty 9

0

18

Ariens 04323600

BUSHING RETAINER, COMPACT

$7.99

$

Usually ships in 4-12 days

0

19

Ariens 05700212

RG-RTNG-INT 1.500X.050

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$3.49

$

In Stock, Qty 8

0

21

Ariens 03885800

SHAFT, RAKE - 22" (.750 DIA)

Note: (920013)

$79.99

$

Usually ships in 4-12 days

0

Ariens 00263000

SHAFT, RAKE - 24" (.750 DIA)

Note: (920014)

$84.99

$

Usually ships in 4-12 days

0

22

Ariens 52004200

GEAR CASE, 22" IRON SM TOP-LD

Note: (Includes Items 1 - 21, 24) (920013)

$219.99

$

In Stock, only 1 left!

0

Ariens 52004400

GEAR CASE, 24" IRON SM TOP-LD

Note: (Includes Items 1 - 21, 24) (920014)

$290.99

$

Usually ships in 4-12 days

0

23

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

$18.99

$

In Stock, Qty 20+

0

24

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0
