920013 - Ariens Compact 22" Snow Blower (SN: 123000 & Above) Discharge Chute - 22" Parts Diagram

Compact 22" Snow Blower

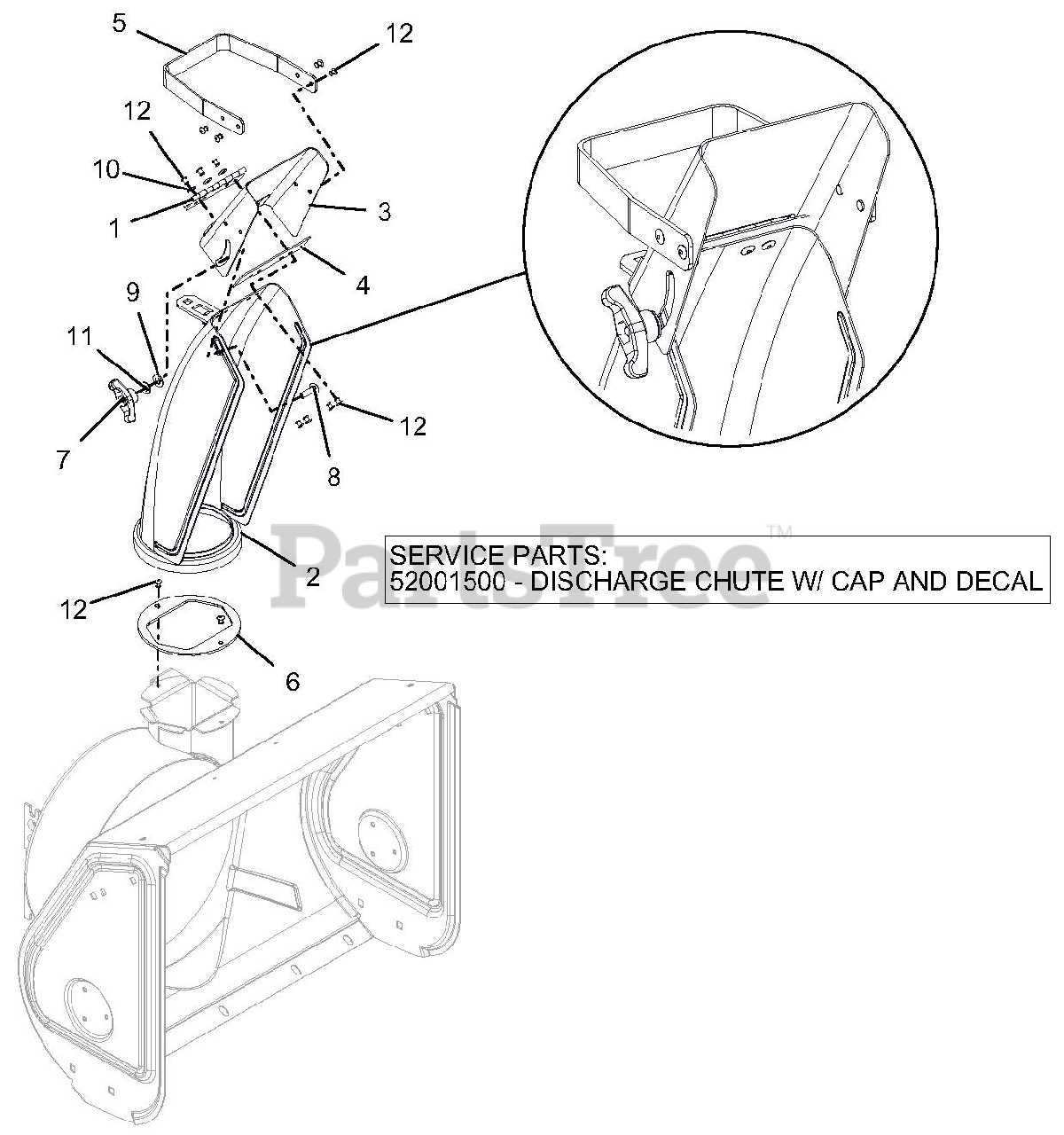

Discharge Chute - 22" Parts Diagram

  • Title

1

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

2

Ariens 03881559

CHUTE, COMPACT - TALL

$57.99

$

Usually ships in 4-12 days

0

3

Ariens 00174359

CAP, SMALL DEFLECTOR-MANUAL

$6.49

$

Usually ships in 4-12 days

0

4

Ariens 00628500

CAP SEAL 5.25

$4.49

$

Usually ships in 4-12 days

0

5

Ariens 03212159

HANDLE, DEFLECTOR

$

$

Not available

6

Ariens 03889400

BAFFLE, COMPACT DISCHARGE

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

8

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 9

0

10

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0

13

Ariens 52001500

CHUTE, DISCHARGE W/CAP & DECAL

Note: SERVICE PART

$

$

Not available
