920020 - Ariens Compact 24" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Friction Drive - Track Parts Diagram

Compact 24" Track Snow Blower, Briggs & Stratton

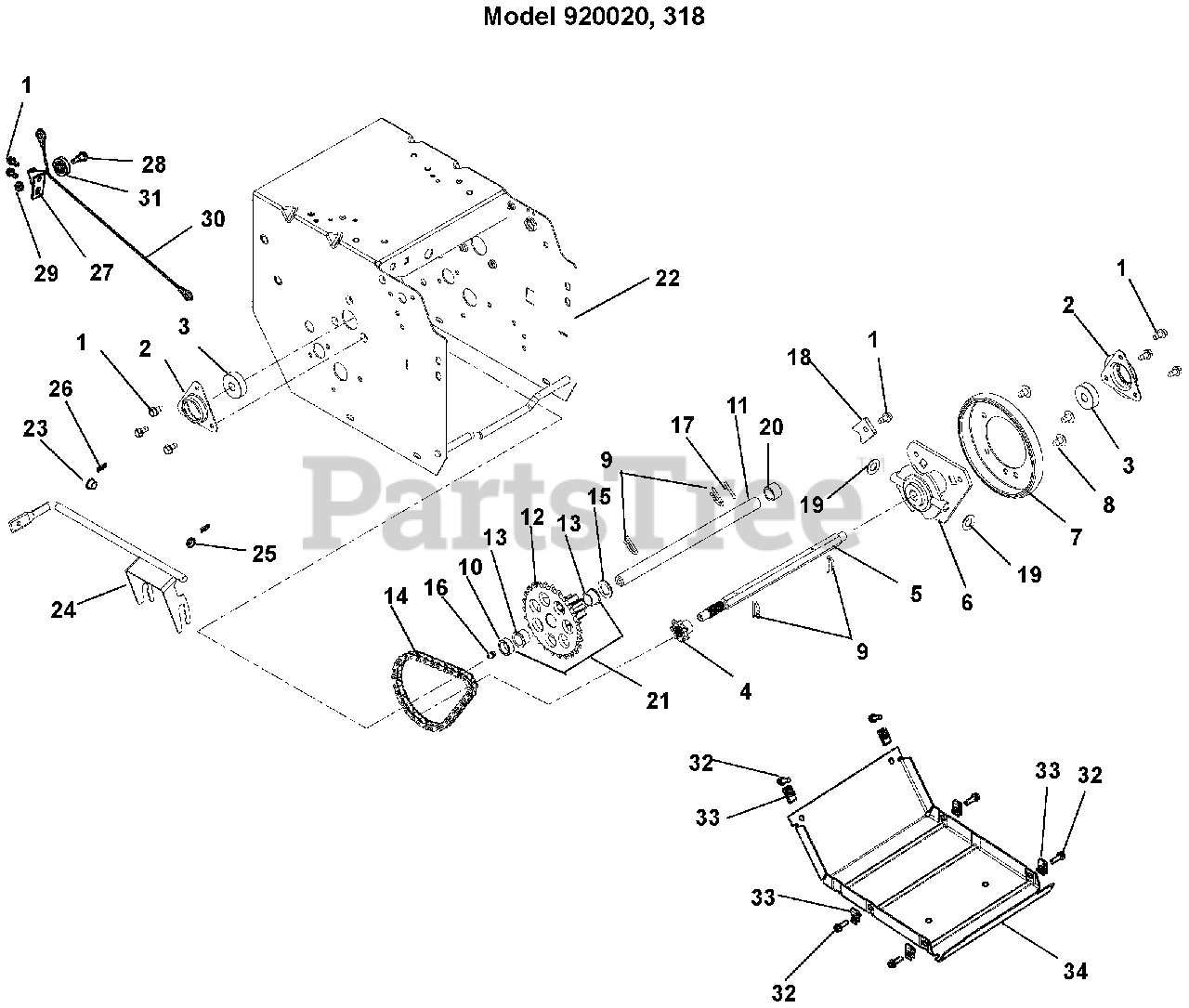

Friction Drive - Track Parts Diagram

  • Title

1

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

3

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

4

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 04512800

SHAFT, HEX W/SPLINE TRACK

$31.99

$

Usually ships in 4-12 days

0

6

Ariens 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, Qty 5

0

7

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 11

0

8

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

10

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

11

Ariens 04512900

SHAFT, PINION TRACK

$46.99

$

Usually ships in 4-12 days

0

12

Ariens 00190600

PINION & SPROCKET

Note: (Included in Item 21)

$

$

Not available

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

Note: (Included in Item 21)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 1 left!

0

15

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

17

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

19

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

21

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: (Includes Items 12 and 13)

$46.99

$

In Stock, only 2 left!

0

22

Ariens 04456159

FRAME, 920/921

$153.99

$

Usually ships in 4-12 days

0

23

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

24

Ariens 04655300

WELDMENT, SHIFT FORK

$46.99

$

Usually ships in 4-12 days

0

25

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

26

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

27

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

28

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

30

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$10.99

$

Usually ships in 4-12 days

0

31

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

32

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

33

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

34

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0
