920020 - Ariens Compact 24" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Track Parts Diagram

Compact 24" Track Snow Blower, Briggs & Stratton

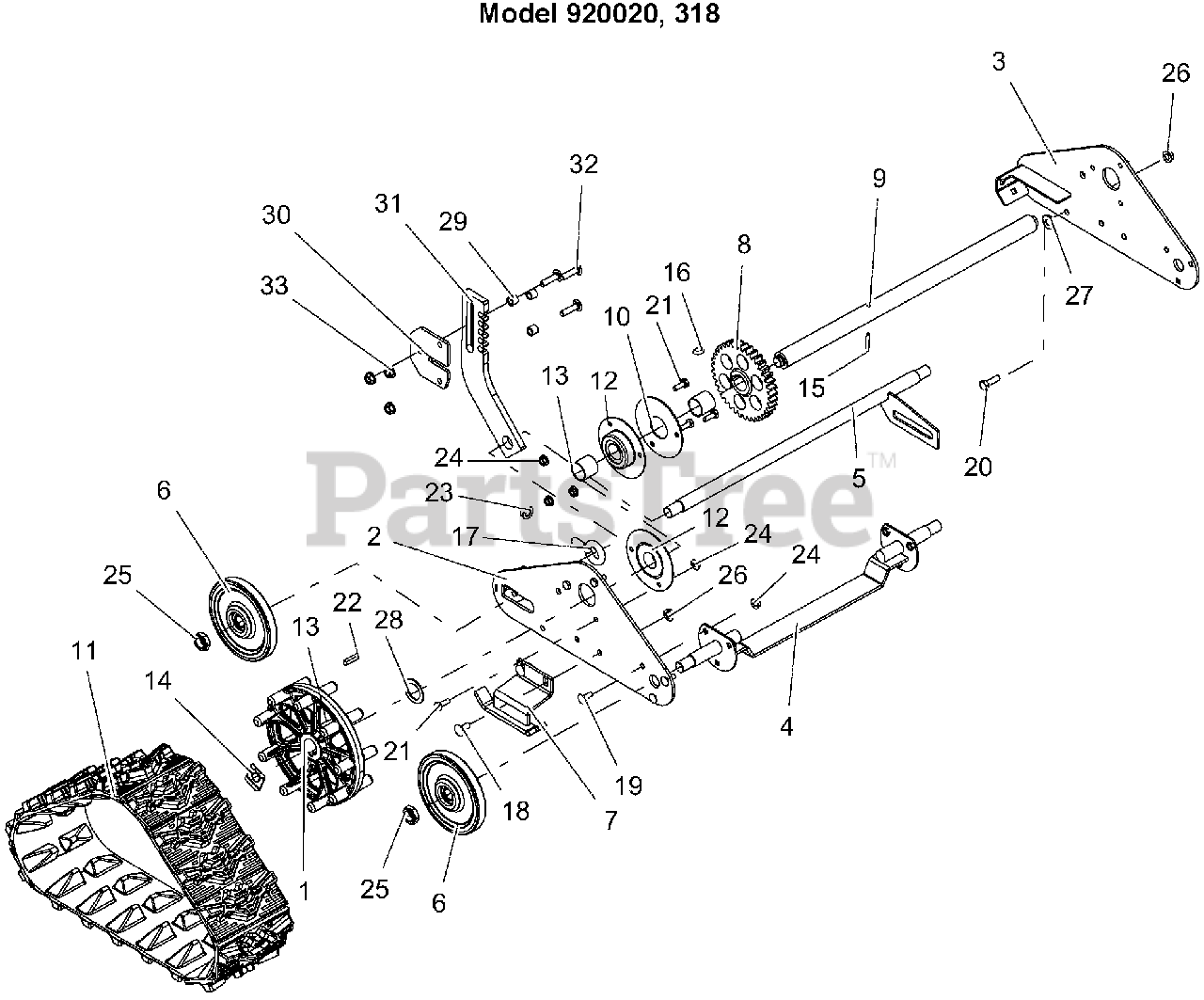

Track Parts Diagram

  • Title

1

Ariens 04520000

WHEEL, MACHINED DRIVE

$128.99

$

Usually ships in 4-12 days

0

2

Ariens 04548651

SIDE PLATE, RH COMPACT BLACK

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 04548751

SIDE PLATE, LH-COMPACT TRACK B

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 04549500

AXLE, FRONT-COMPACT TRACK

$118.99

$

Usually ships in 4-12 days

0

5

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$65.99

$

Usually ships in 4-12 days

0

6

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 04549651

RUNNER, GUIDE-CMPT TRACK BLACK

$52.99

$

Usually ships in 4-12 days

0

8

Ariens 00371000

GEAR, SPUR

$54.99

$

In Stock, only 2 left!

0

9

Ariens 03291500

AXLE, TRACK-DELUXE

$81.99

$

Usually ships in 4-12 days

0

10

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 04548500

TRACK, RUBBER COMPACT

$107.99

$

Usually ships in 4-12 days

0

12

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$44.99

$

In Stock, Qty 7

0

13

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

14

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

15

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

16

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

17

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

18

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

19

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

21

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

22

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

23

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

25

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

26

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 16

0

29

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, only 4 left!

0

30

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$10.99

$

Usually ships in 4-12 days

0

31

Ariens 04548851

STOP, HEIGHT ADJUSTER-CPT BLAC

$23.99

$

Usually ships in 4-12 days

0

32

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.99

$

In Stock, only 3 left!

0

33

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
