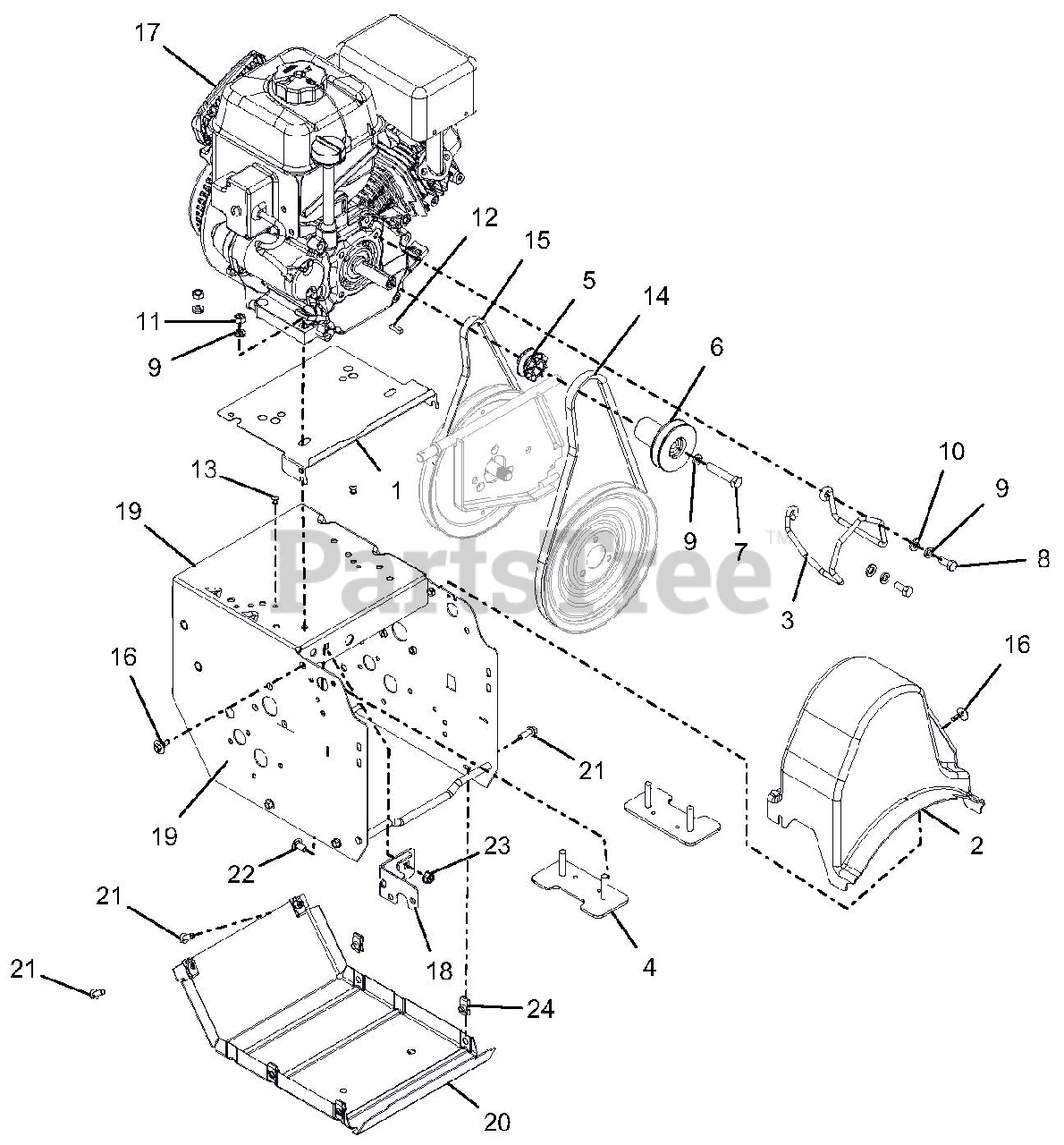

920021 - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 076000 - 086469) Frame And Engine Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

Frame And Engine Parts Diagram

  • Title

1

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$65.99

$

Usually ships in 4-12 days

0

2

Ariens 03881000

COVER, COMPACT BELT

$21.99

$

In Stock, only 2 left!

0

3

Ariens 04561800

FINGER, BELT

$26.99

$

Usually ships in 4-12 days

0

4

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 04414000

SHEAVE, TRACTION

$6.49

$

In Stock, only 2 left!

0

6

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$40.99

$

In Stock, only 1 left!

0

7

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

10

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

12

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 7

0

13

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0

14

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$29.99

$

In Stock, Qty 20+

0

15

Ariens 07200603

V-BELT, 3L-WRAPPED

$15.99

$

In Stock, only 2 left!

0

16

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

17

Ariens 08201025

ENGINE, AX208 GEN 2 120V/60W

Note: (SERIAL RANGE 128000 AND UP FOR MODEL 920013)

$

$

Not available

17

Ariens 08200712

ENGINE, ARIENS 208CC 120V, 60W

Note: (SERIAL RANGE 123000 - 125999 FOR MODEL 920013)

$

$

Not available

17

Ariens 08200807

ENGINE, ARIENS AX208 120V/60W

Note: (SERIAL RANGE 126000 - 127999 FOR MODEL 920013)

$

$

Not available

18

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 04393859

WELDMENT,FRAME 920

$

$

Not available

20

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

21

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 9

0

22

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 18

0
