920022 - Ariens Compact 24" Track Snow Blower, Ariens AX 208cc engine (SN: 000101 - 000800) Engine And Belt Drive Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 208cc engine

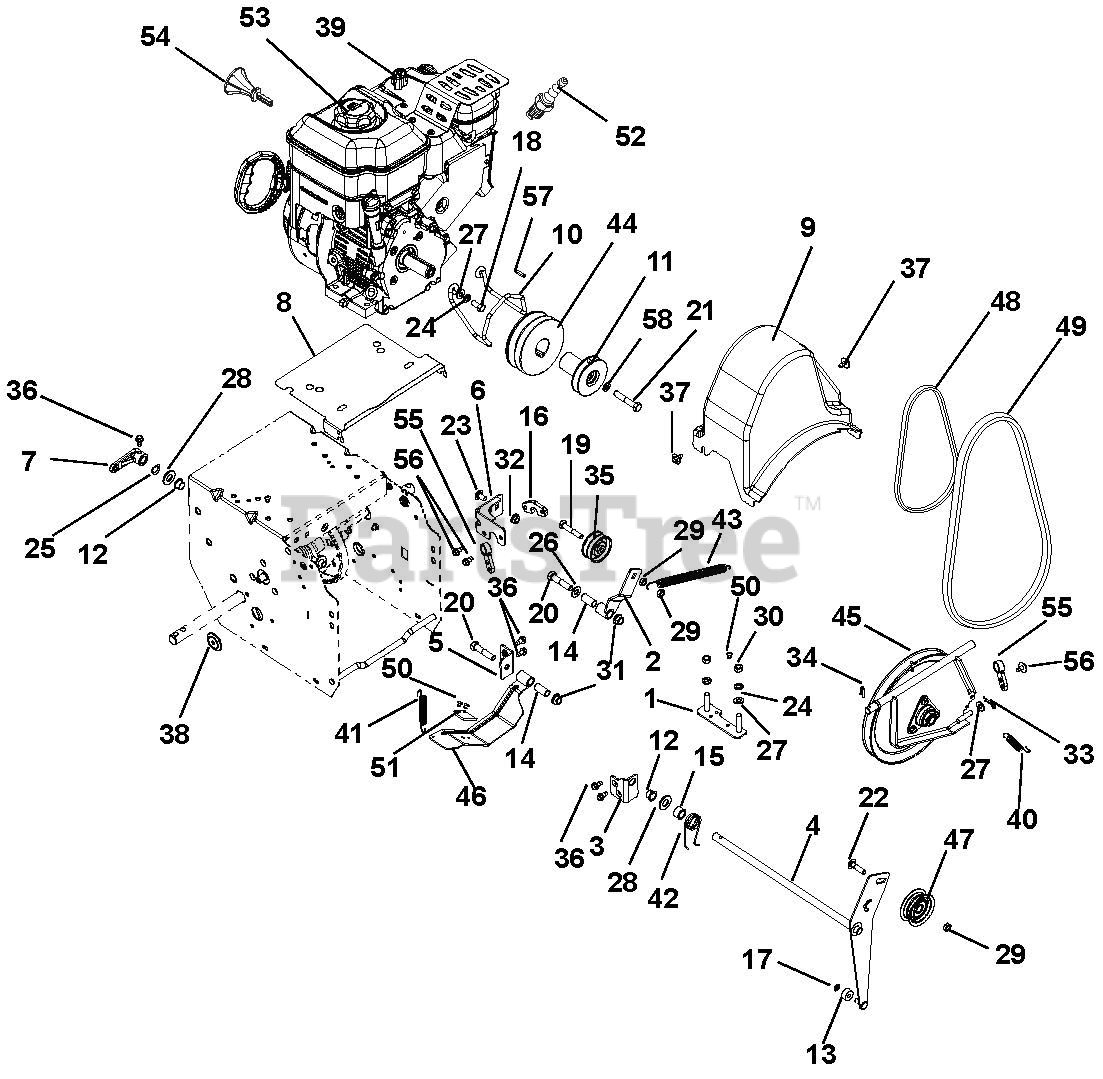

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

Note: (920022, 318)

$21.99

$

Usually ships in 4-12 days

0

1

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

Note: (920013, 014, 021, 316, 317, 321, 325, 326)

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 00493667

ARM, TRACTION IDLER
(Superseded to 00493600)

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 00495167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892167)

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 00657051

WELDMENT, FRAME BRACKET

$31.99

$

Usually ships in 4-12 days

0

7

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

8

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$65.99

$

Usually ships in 4-12 days

0

9

Ariens 03881000

COVER, COMPACT BELT

$21.99

$

In Stock, only 2 left!

0

10

Ariens 03881600

FINGER, BELT
(Superseded to 04561800)

$26.99

$

Usually ships in 4-12 days

0

11

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$40.99

$

In Stock, only 1 left!

0

12

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

13

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 16

0

16

Ariens 05500113

SPACER, SWING GATE

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 3 left!

0

19

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

20

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 4 left!

0

21

Ariens 05901401

@BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

Note: (920013, 014, 021, 022, 316, 317, 318)

$3.49

$

In Stock, Qty 11

0

21

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

Note: (920321, 325, 326)

$3.49

$

In Stock, only 1 left!

0

22

Ariens 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

25

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 7

0

26

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (920013, 014, 021, 316, 317)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (920022, 318, 321, 325, 326)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

29

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0

30

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

31

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

35

Ariens 52007100

KIT, FLAT IDLER

$29.99

$

In Stock, only 2 left!

0

36

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

38

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

Note: (920013, 014, 021, 316, 317, 321, 325, 326)

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 08200712

ENGINE, ARIENS 208CC 120V, 60W

Note: (920013, 021) (920022 SERIAL RANGE 000121 AND UP)

$

$

Not available

39

Ariens 08200807

ENGINE, ARIENS AX208 120V/60W

Note: (920022 SERIAL RANGE 000101 - 000120 ONLY)

$

$

Not available

39

Ariens 08200922

ENGINE, ARIENS AX208 240V/60W

Note: (920318, 321, 325, 326)

$

$

Not available

39

Ariens 08200813

ENGINE, B&S 208CC, 240V

Note: (920316)

$

$

Not available

39

Ariens 08200815

ENGINE, BRIGGS 208, 120V 60W

Note: (920014)

$

$

Not available

39

Ariens 08200804

ENGINE, BRIGGS 900, RECOIL 60W

Note: (920317)

$

$

Not available

40

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, Qty 18

0

41

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.99

$

In Stock, only 4 left!

0

42

Ariens 08300326

SG-TORS .075 X .955

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 08300528

SPRING, EXTENSION
(Superseded to 08300538)

Note: (920013, 014, 021, 316, 317, 321, 325, 326)

$15.99

$

In Stock, Qty 20+

0

43

Ariens 08300538

SPRING, SWIVEL HOOK EXTENSION

Note: (920022, 318)

$15.99

$

In Stock, Qty 20+

0

44

Ariens 04414000

SHEAVE, TRACTION

Note: (920013, 014, 021, 316, 317, 321, 325, 326)

$6.49

$

In Stock, only 2 left!

0

44

Ariens 04553400

SHEAVE, TRACTION-COMPACT TRACK

Note: (920022, 318)

$105.99

$

Usually ships in 4-12 days

0

45

Ariens 52105000

PLATE, SWING - ASSEMBLY

$87.99

$

In Stock, only 2 left!

0

46

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes Items 51 and 52)

$23.99

$

In Stock, only 2 left!

0

47

Ariens 52007000

KIT, FLAT IDLER

$40.99

$

In Stock, only 2 left!

0

48

Ariens 07200603

V-BELT, 3L-WRAPPED

Note: (920013, 014, 021, 316, 317, 321, 325, 326)

$15.99

$

In Stock, only 1 left!

0

48

Ariens 07200114

V-BELT, 3L-WRAPPED

Note: (920022, 318)

$25.99

$

In Stock, only 3 left!

0

49

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$29.99

$

In Stock, Qty 20+

0

50

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (2 Included with Item 47)

$1.49

$

In Stock, only 3 left!

0

51

Ariens 00180500

PAD, BRAKE

Note: (Included with Item 47)

$10.99

$

In Stock, only 2 left!

0

52

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: (920013, 021, 022, 318, 321, 325, 326)

$3.99

$

In Stock, Qty 20+

0

52

Ariens 21534100

PLUG, SPARK

Note: (920014, 316, 317)

$3.99

$

Usually ships in 4-12 days

0

53

Ariens 07500112

CAP, FUEL TANK BLACK

Note: (920013, 021, 022, 318, 321, 325, 326)

$19.99

$

In Stock, only 2 left!

0

53

Ariens 07500215

CAP, FUEL - BRIGGS & STRATTON
(Superseded to 07500013)

Note: (920014, 316, 317)

$17.99

$

In Stock, only 1 left!

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

Note: (920013, 021, 022, 318, 321, 325, 326)

$5.49

$

In Stock, Qty 8

0

54

Ariens 07500130

KEY, IGNITION ROTARY B&S
(Superseded to 02460700)

Note: (920014)

$10.99

$

In Stock, Qty 20+

0

54

Ariens 07500012

KEY, IGNITION PUSH/PULL B&S

Note: (920316, 317)

$15.99

$

Usually ships in 4-12 days

0

55

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0

56

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

57

Ariens 06606100

KEY-SQ .188X.75X.188

Note: (920022, 318)

$3.99

$

In Stock, Qty 7

0

58

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (920013, 014, 021, 022, 316, 317, 318)

$0.99

$

In Stock, Qty 5

0

58

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (920321, 325, 326)

$1.49

$

In Stock, Qty 19

0
