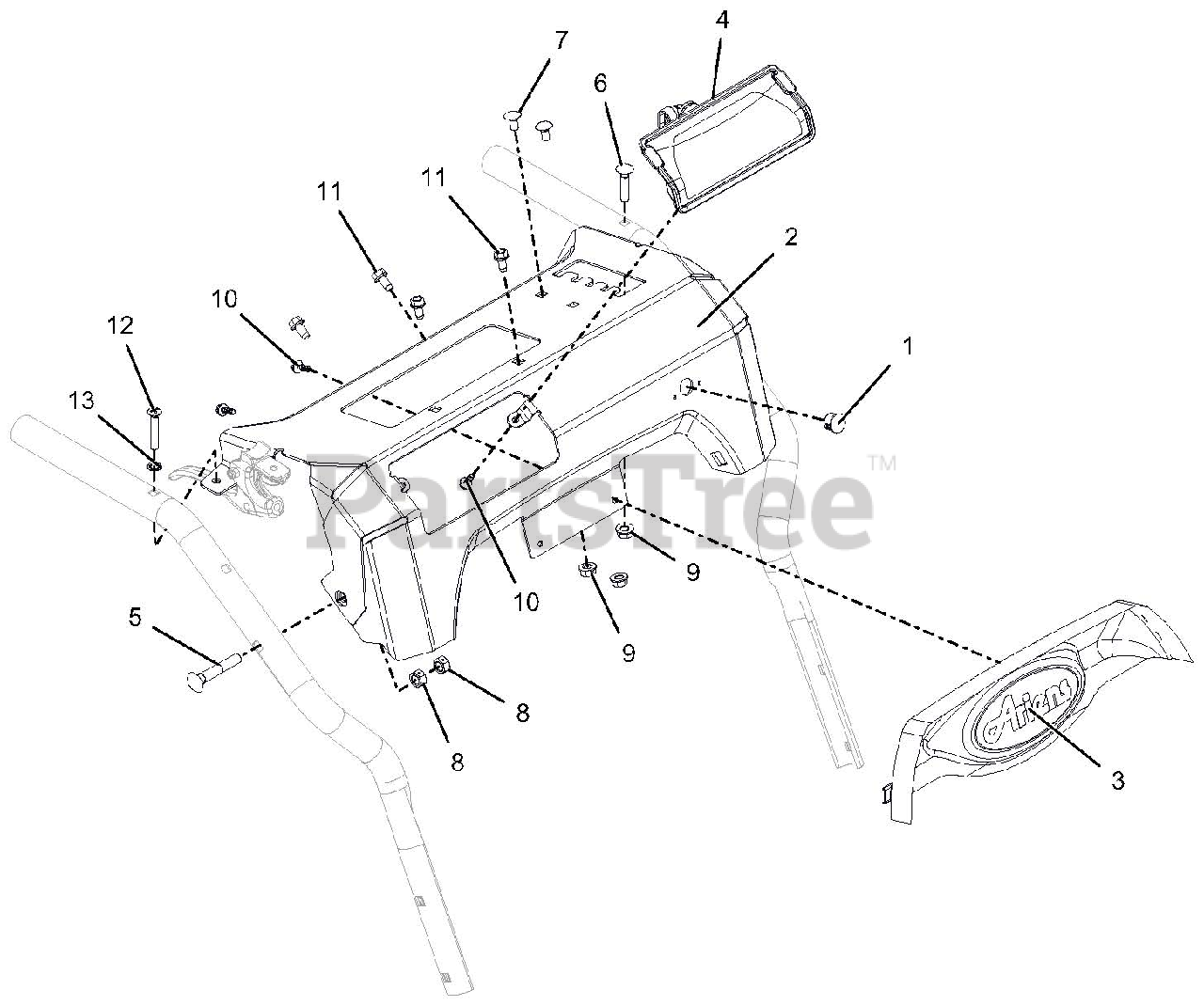

920022 - Ariens Compact 24" Track Snow Blower, Ariens AX 208cc engine (SN: 000801 - 004999) Dash - Track Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 208cc engine

Dash - Track Parts Diagram

  • Title

1

Ariens 01554900

HOLE PLUG, PLASTIC .56 HOLE

$3.49

$

Usually ships in 4-12 days

0

2

Ariens 52006800

CONTROL PANEL W/DECAL, CMPT TK

$73.99

$

Usually ships in 4-12 days

0

3

Ariens 04305000

DASH BEZEL, ARIENS LOGO - COMP

$53.99

$

Usually ships in 4-12 days

0

4

Ariens 04812300

HEADLIGHT ASY, HALO 20W 2SHOT

$51.99

$

In Stock, only 4 left!

0

5

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$3.49

$

In Stock, Qty 8

0

7

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

$5.49

$

In Stock, only 2 left!

0

13

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.99

$

Usually ships in 4-12 days

0
