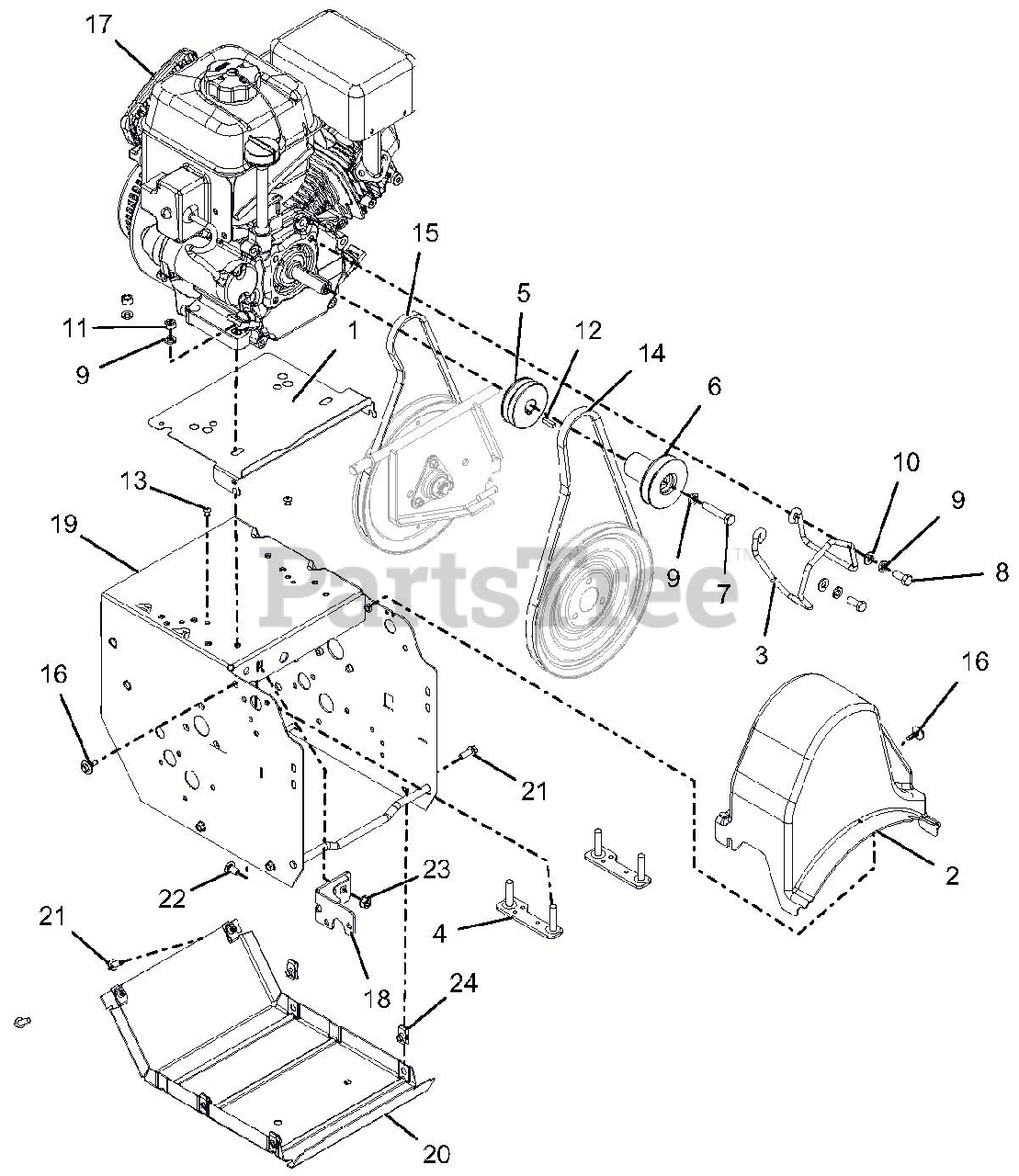

920022 - Ariens Compact 24" Track Snow Blower, Ariens AX 208cc engine (SN: 000801 - 004999) Frame And Engine - Track Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 208cc engine

Frame And Engine - Track Parts Diagram

  • Title

1

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$71.99

$

Usually ships in 4-12 days

0

2

Ariens 03881000

COVER, COMPACT BELT

$22.99

$

In Stock, only 2 left!

0

3

Ariens 04561800

FINGER, BELT

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 04553400

SHEAVE, TRACTION-COMPACT TRACK

$116.99

$

Usually ships in 4-12 days

0

6

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$42.99

$

In Stock, only 2 left!

0

7

Ariens 05901401

@BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$3.99

$

In Stock, only 2 left!

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

12

Ariens 06606100

KEY-SQ .188X.75X.188

$4.99

$

In Stock, only 2 left!

0

13

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$2.49

$

In Stock, Qty 20+

0

14

Ariens 07200513

V-BELT, HA-RAW EDGE
(Superseded to 07200725)

$31.99

$

In Stock, Qty 20+

0

15

Ariens 07200114

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$26.99

$

In Stock, only 2 left!

0

16

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$3.99

$

In Stock, Qty 19

0

17

Ariens 08201025

ENGINE, AX208 GEN 2 120V/60W

Note: SERIAL RANGE 002515 AND UP ONLY

$

$

Not available

17

Ariens 08200712

ENGINE, ARIENS 208CC 120V, 60W

Note: SERIAL RANGE 000801 - 002000 ONLY

$

$

Not available

17

Ariens 08200807

ENGINE, ARIENS AX208 120V/60W

Note: SERIAL RANGE 002001 - 002514 ONLY

$

$

Not available

18

Ariens 00657059

WELDMENT, FRAME BRACKET

$36.99

$

Usually ships in 4-12 days

0

19

Ariens 04456159

FRAME, 920/921

$167.99

$

Usually ships in 4-12 days

0

20

Ariens 00492359

COVER, BOTTOM

$53.99

$

In Stock, only 2 left!

0

21

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$2.99

$

In Stock, Qty 20+

0

22

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.99

$

In Stock, Qty 20+

0
