920022 - Ariens Compact 24" Track Snow Blower, Ariens AX 208cc engine (SN: 190649 & Above) Tracks Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 208cc engine

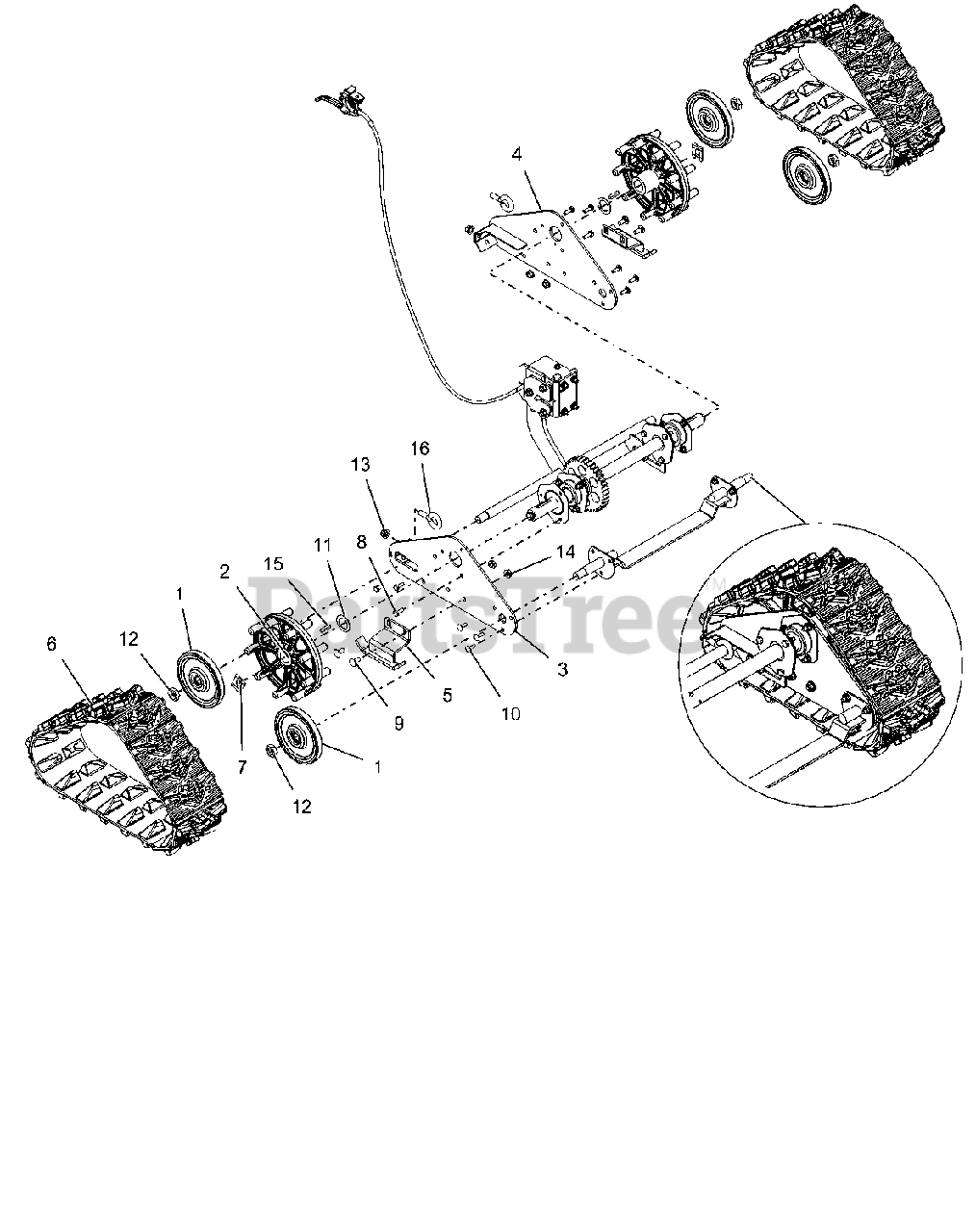

Tracks Parts Diagram

  • Title

1

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

2

Ariens 04520000

WHEEL, MACHINED DRIVE

$128.99

$

Usually ships in 4-12 days

0

3

Ariens 04548651

SIDE PLATE, RH COMPACT BLACK

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 04548751

SIDE PLATE, LH-COMPACT TRACK B

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 04549651

RUNNER, GUIDE-CMPT TRACK BLACK

$52.99

$

Usually ships in 4-12 days

0

6

Ariens 04548500

TRACK, RUBBER COMPACT

$107.99

$

Usually ships in 4-12 days

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

11

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

13

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, only 1 left!

0

16

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0
