920025 - Ariens Classic 24" Snow Blower, Ariens AX 208cc engine (SN: 018967 - 259999) Frame And Engine - 24" Parts Diagram

Classic 24" Snow Blower, Ariens AX 208cc engine

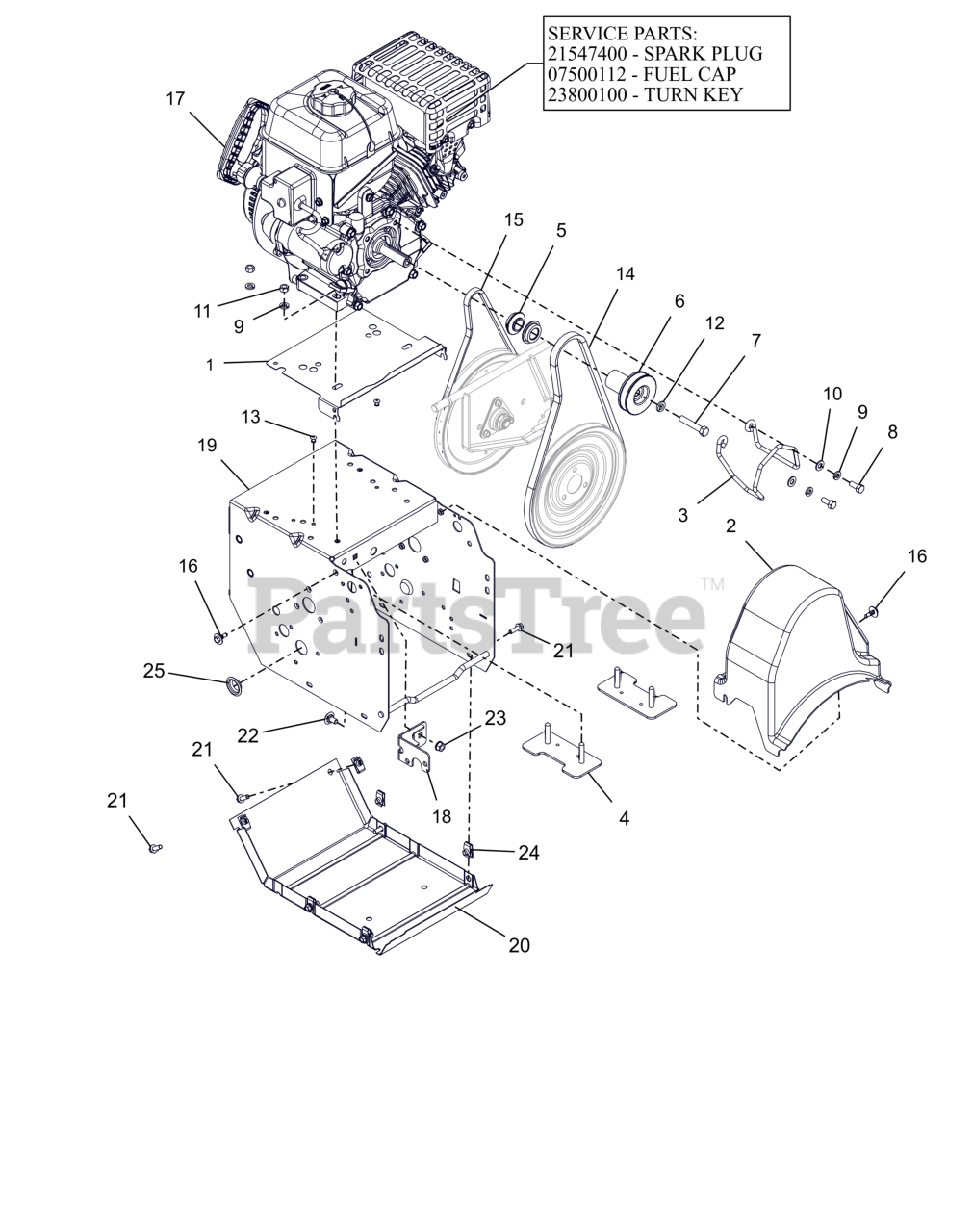

Frame And Engine - 24" Parts Diagram

  • Title

1

Ariens 04895151

BAFFLE, COMPACT

$6.99

$

Usually ships in 4-12 days

0

2

Ariens 03881000

COVER, COMPACT BELT

$20.99

$

In Stock, only 1 left!

0

3

Ariens 04561800

FINGER, BELT

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 07348400

SHEAVE, TRACTION HALF (KEYLESS)

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 04827100

SHEAVE, AUGER 3/4 - PM

$16.99

$

Usually ships in 4-12 days

0

7

Ariens 05902015

BLT, HEX .38-24X2.00 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

8

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, only 4 left!

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 9

0

11

Ariens 06500938

NUT, HEX .312-18 ZCC

$0.99

$

In Stock, Qty 16

0

12

Ariens 06300120

WSHR, LK-HVY .375X.115 ZCC

$3.49

$

In Stock, Qty 10

0

13

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 10

0

14

Ariens 07200725

V-BELT, HA-RAW EDGE

$30.99

$

In Stock, Qty 20+

0

15

Ariens 07200603

V-BELT, 3L-WRAPPED

$17.99

$

In Stock, Qty 13

0

16

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

In Stock, only 2 left!

0

17

Ariens 08201239

ENGINE, AX208 GEN 2 120V

Note: Used on Serial Number 018967 - 021548

$

$

Not available

17

Ariens 08201325

ENGINE, ARIENS AX208 120V

Note: Used on Serial Number 021549 - 027219

$

$

Currently unavailable

17

Ariens 08201213

ENGINE, SNO-TEK 208 120V

Note: Used on Serial Number 027220 - 027950

$

$

Not available

17

Ariens 08201325

ENGINE, ARIENS AX208 120V

Note: Used on Serial Number 027951 - 259999

$

$

Currently unavailable

17

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0

17

Ariens 07500112

CAP, FUEL TANK BLACK

Note: SERVICE PART

$11.99

$

In Stock, only 1 left!

0

17

Ariens 23800100

KEY, TURN LCT (2/PACKAGE)

Note: SERVICE PART

$10.99

$

In Stock, Qty 9

0

18

Ariens 00657059

WELDMENT, FRAME BRACKET

$33.99

$

Usually ships in 4-12 days

0

19

Ariens 04885359

FRAME, MAIN

$74.99

$

Usually ships in 4-12 days

0

20

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

21

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07500102

PLUG, HOLE - 1.00" FLEXTEMP

$3.49

$

Usually ships in 4-12 days

0
