920026 - Ariens Compact 20" Snow Blower, Ariens AX 223cc engine (SN: 000101 - 002500) Friction Drive Parts Diagram

Compact 20" Snow Blower, Ariens AX 223cc engine

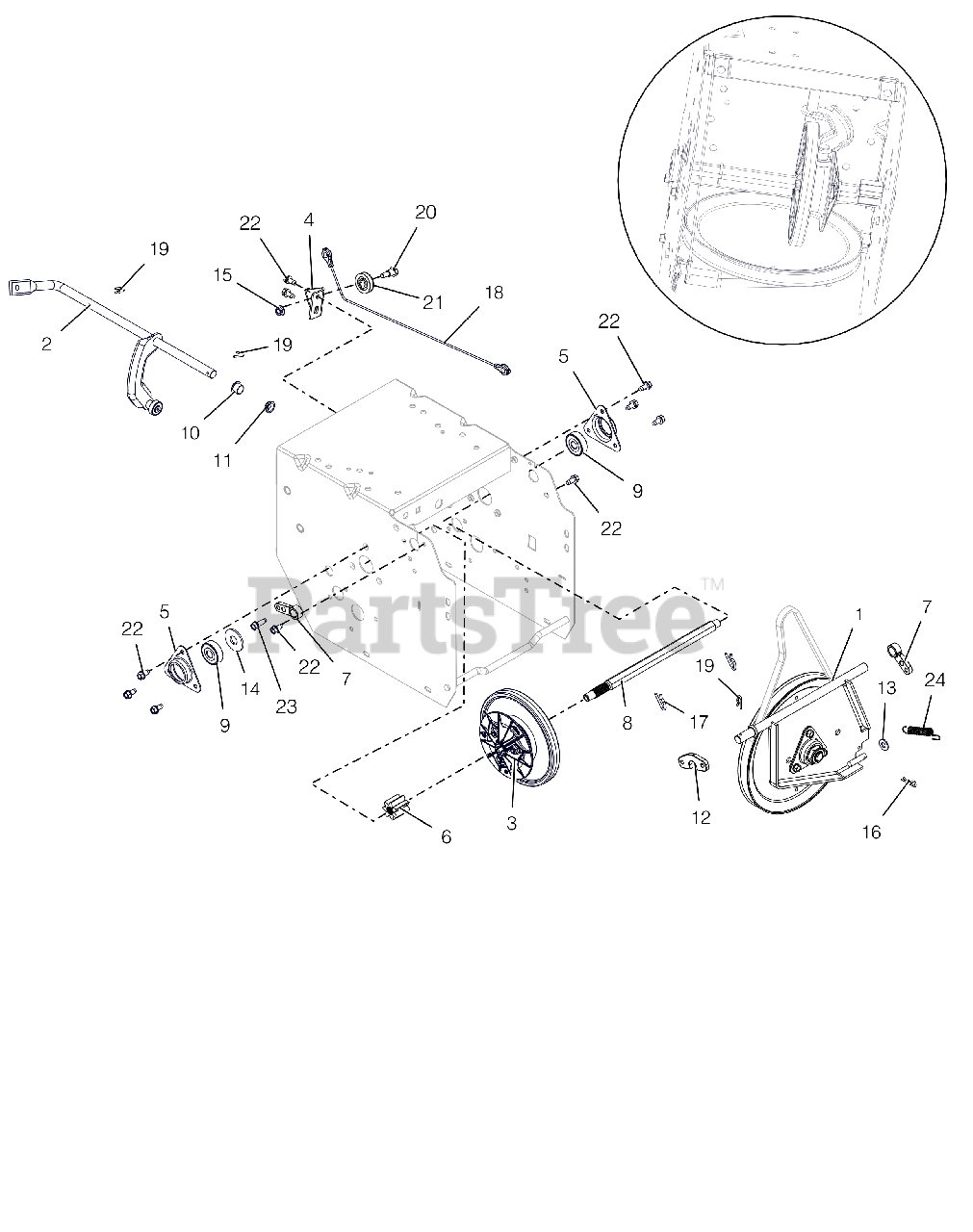

Friction Drive Parts Diagram

  • Title

1

Ariens 52105000

PLATE, SWING - ASSEMBLY

$87.99

$

In Stock, only 2 left!

0

2

Ariens 04848100

ARM, SHIFT-SMALL DASH (WLDMT)

$

$

Not available

3

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$36.99

$

Usually ships in 4-12 days

0

4

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

5

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

6

Ariens 00493900

GEAR, PINION, 7 TOOTH W/SPLINE

$9.99

$

Usually ships in 4-12 days

0

7

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0

8

Ariens 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, only 3 left!

0

9

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

11

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

12

Ariens 05500113

SPACER, SWING GATE

$6.49

$

Usually ships in 4-12 days

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

16

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

18

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

20

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

21

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

22

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

24

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, Qty 18

0
