920027 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 260000 & Above) Auger And Impeller - 24" Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

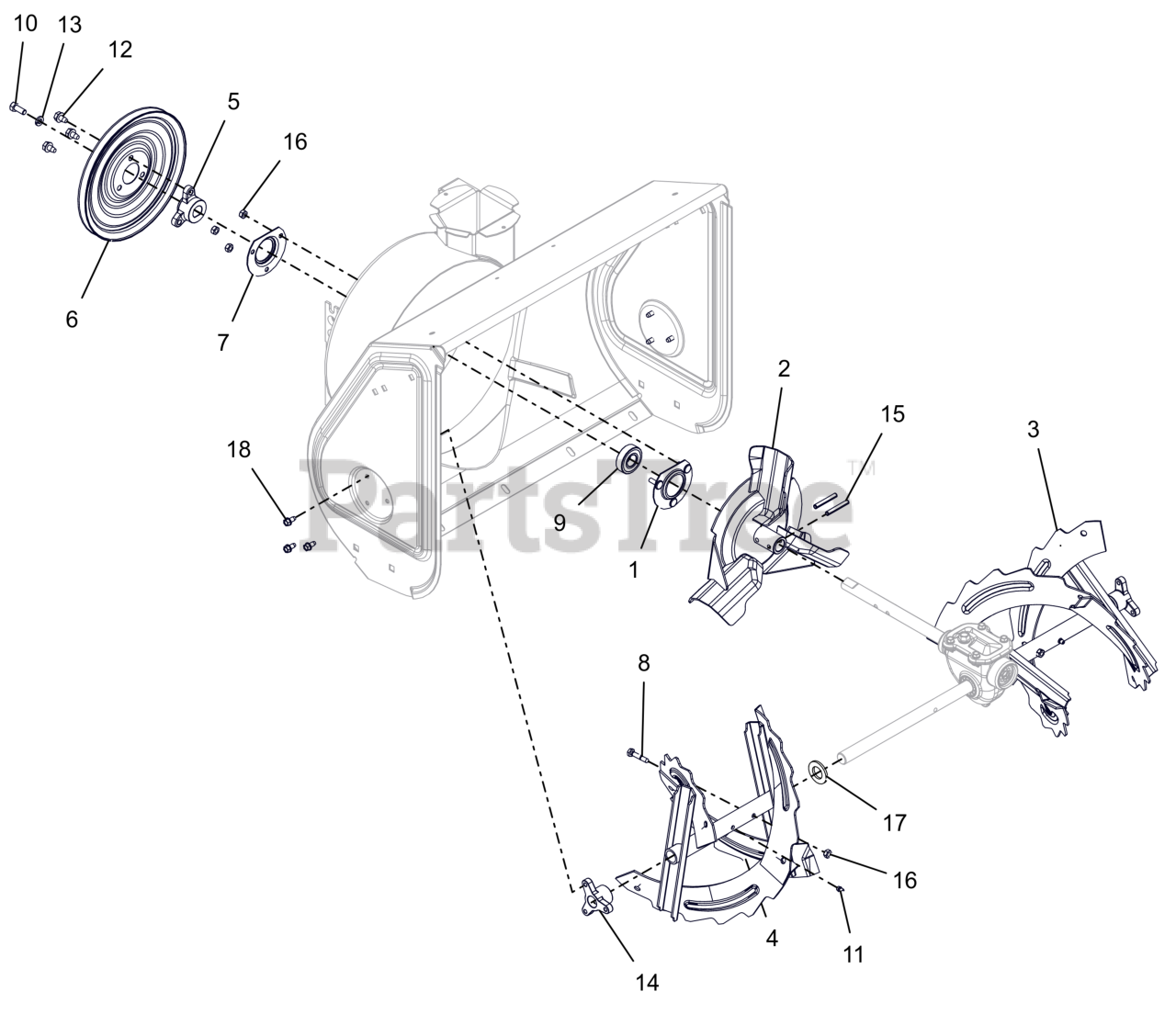

Auger And Impeller - 24" Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 4 left!

0

2

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$84.99

$

In Stock, only 2 left!

0

3

Ariens 53213200

RAKE, 24" LH, BLK SERR W/ZERK

$120.99

$

Usually ships in 4-12 days

0

4

Ariens 53213100

RAKE, 24" RH, BLK SERR W/ZERK

$120.99

$

In Stock, only 4 left!

0

5

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$63.99

$

Usually ships in 4-12 days

0

7

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 7

0

8

Ariens 53200500

SHEAR BOLT WITH NUT

$3.49

$

In Stock, Qty 20+

0

9

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 3 left!

0

10

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.99

$

In Stock, only 1 left!

0

11

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

12

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, only 3 left!

0

14

Ariens 05500918

BUSHING, RAKE SHAFT .75"

$15.99

$

In Stock, Qty 6

0

15

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

16

Ariens 06500812

NUT,LK-CTR .25-20 GA ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$1.99

$

In Stock, Qty 17

0

18

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
