920028 - Ariens Compact 24" Track Snow Blower, Ariens AX 223cc engine (SN: 000910 - 259999) Friction Drive - Track Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 223cc engine

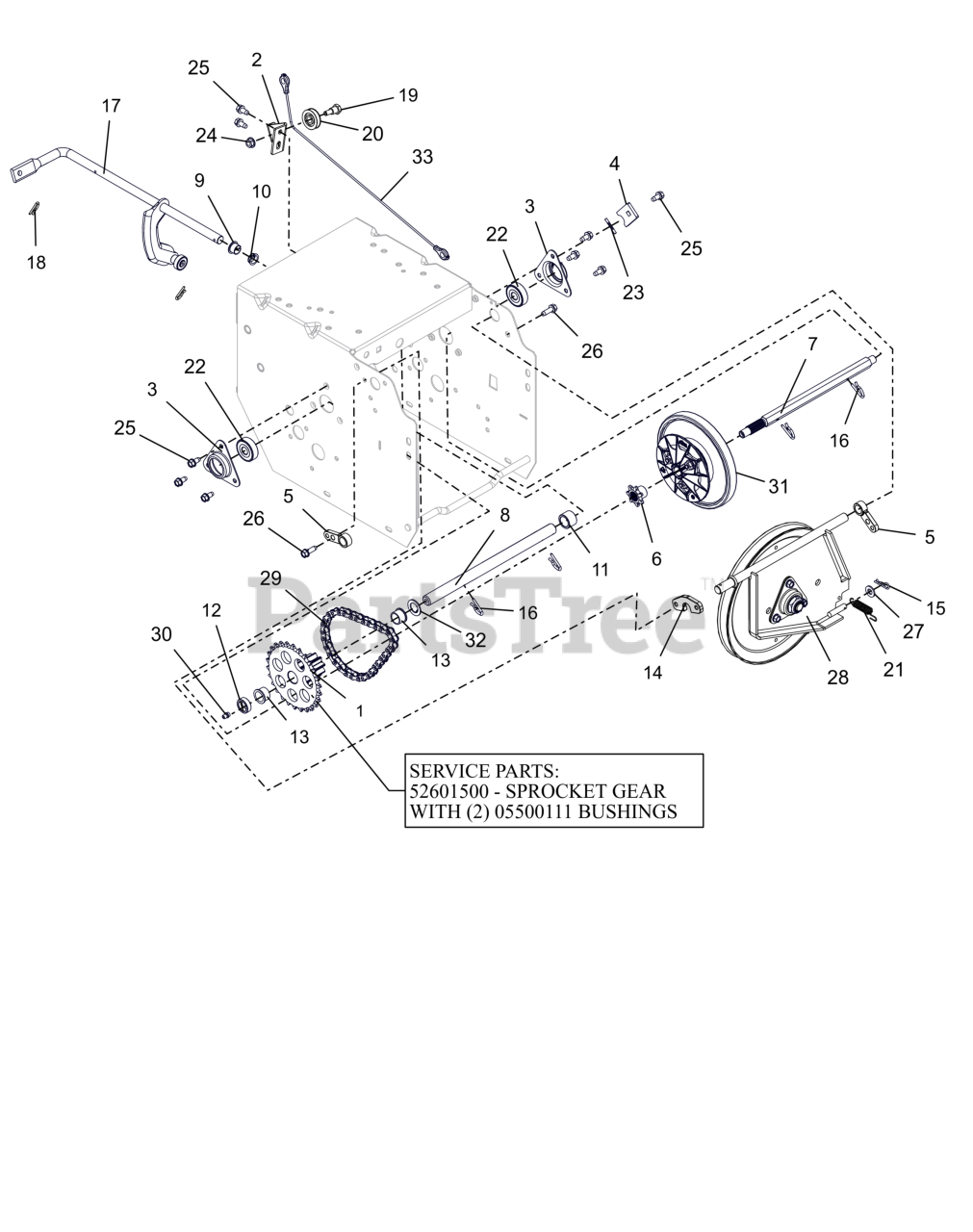

Friction Drive - Track Parts Diagram

  • Title

1

Ariens 00190600

PINION & SPROCKET

$

$

Not available

1

Ariens 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$46.99

$

In Stock, only 2 left!

0

2

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

3

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

4

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

5

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0

6

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 04512800

SHAFT, HEX W/SPLINE TRACK

$31.99

$

Usually ships in 4-12 days

0

8

Ariens 04512900

SHAFT, PINION TRACK

$46.99

$

Usually ships in 4-12 days

0

9

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

10

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

11

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

12

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

13

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

14

Ariens 05500113

SPACER, SWING GATE

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

17

Ariens 04987300

ARM, SHIFT-SMALL DASH (ASSY)

$46.99

$

Usually ships in 4-12 days

0

18

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

19

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 4 left!

0

20

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

21

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, Qty 18

0

22

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

23

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

25

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

27

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 52105000

PLATE, SWING - ASSEMBLY

$87.99

$

In Stock, only 2 left!

0

29

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 2 left!

0

30

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

31

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$36.99

$

Usually ships in 4-12 days

0

32

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 12

0

33

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$10.99

$

Usually ships in 4-12 days

0
