920028 - Ariens Compact 24" Track Snow Blower, Ariens AX 223cc engine (SN: 320000 & Above) Track Axles Parts Diagram

Compact 24" Track Snow Blower, Ariens AX 223cc engine

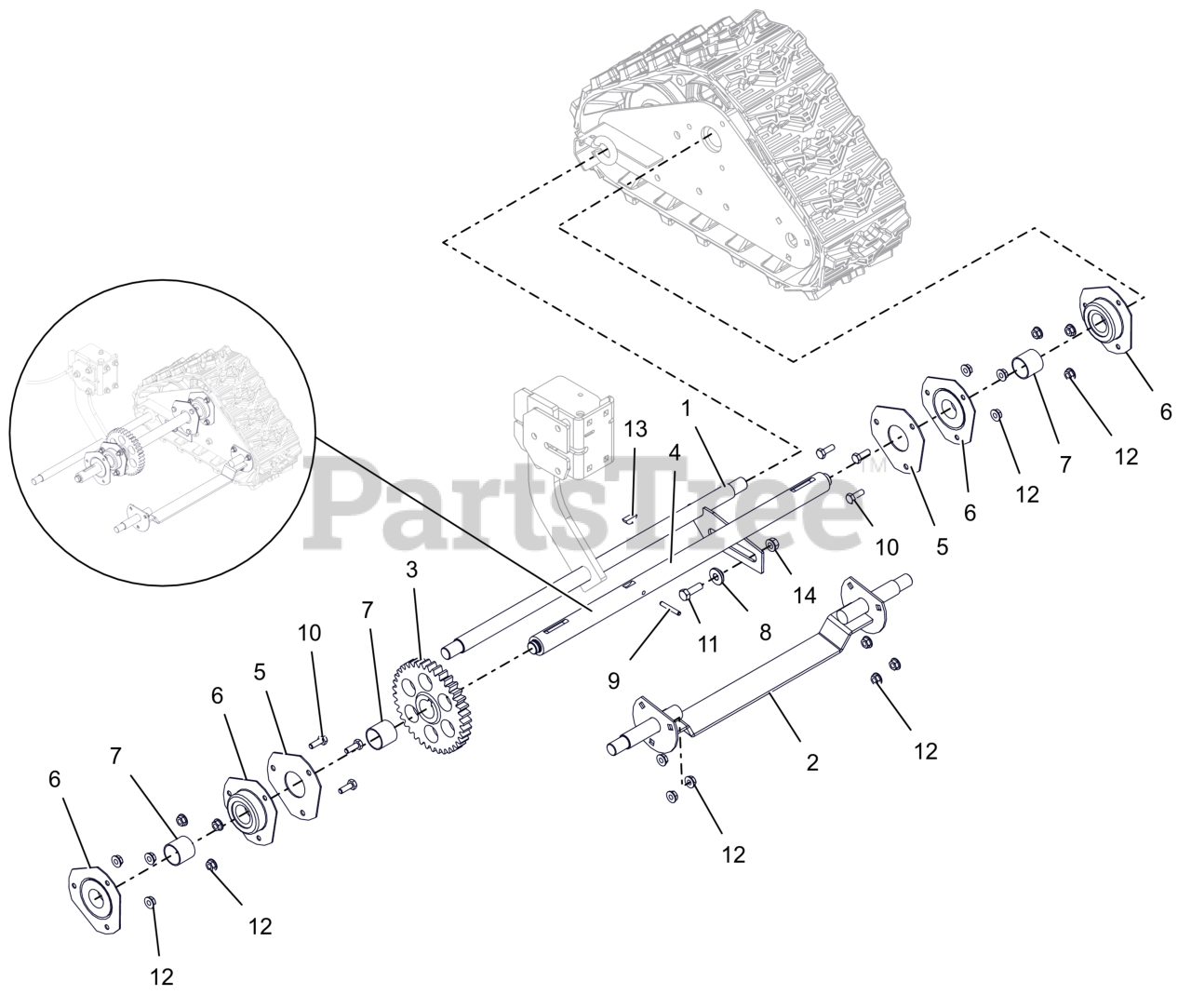

Track Axles Parts Diagram

  • Title

1

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 04549500

AXLE, FRONT-COMPACT TRACK

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

4

Ariens 03291500

AXLE, TRACK-DELUXE

$79.99

$

Usually ships in 4-12 days

0

5

Ariens 04796351

PLATE, BEARING SPACER

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, only 2 left!

0

7

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 5

0

8

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, only 4 left!

0

9

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 12

0

11

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, only 2 left!

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

13

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

14

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
