920029 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 320000 - 349999) Gear Case Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

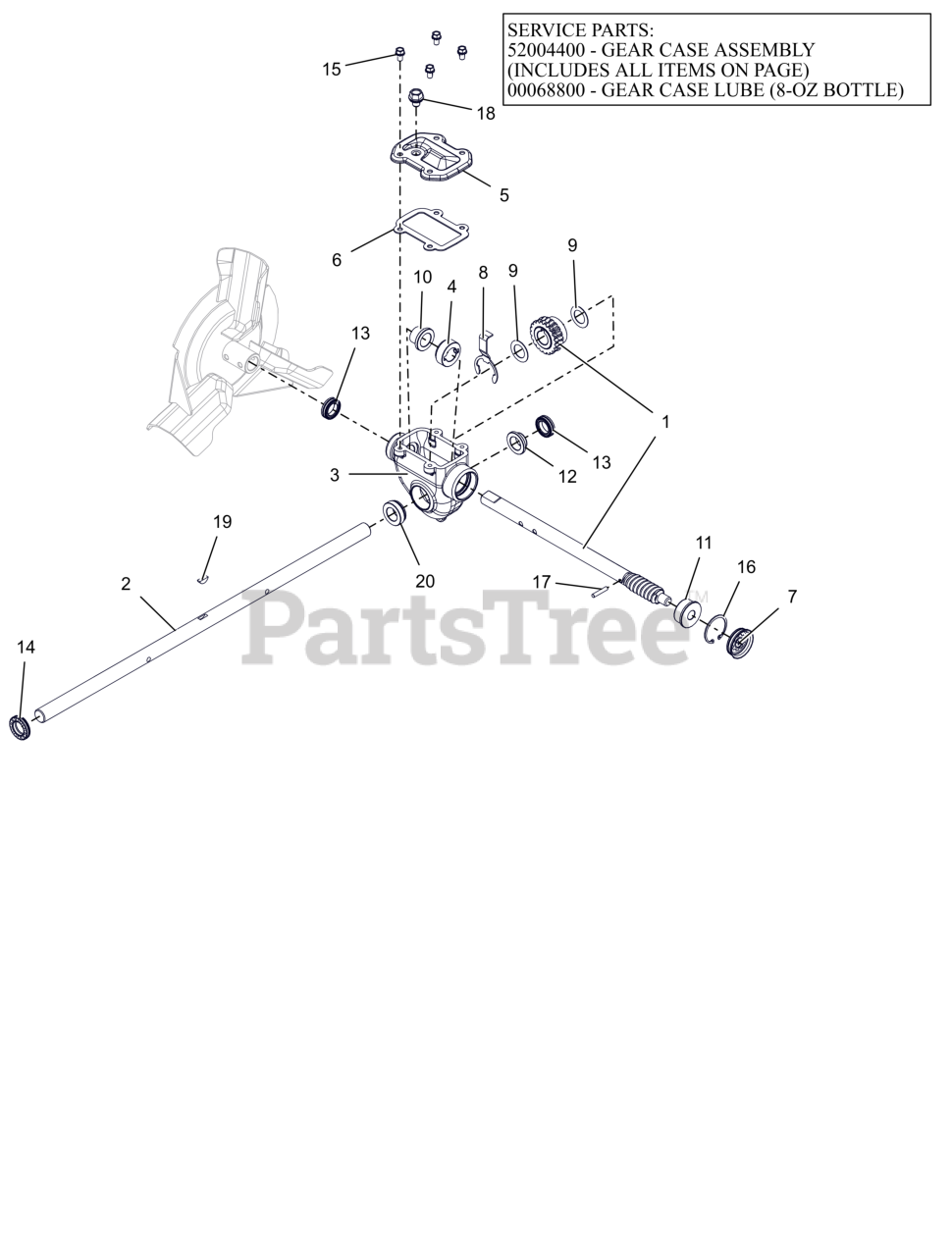

Gear Case Parts Diagram

  • Title

1

Ariens 52003400

SHAFT AND WORM GEAR ASSEMBLY

$96.99

$

In Stock, only 2 left!

0

2

Ariens 00263000

SHAFT, RAKE - 24" (.750 DIA)

$92.99

$

In Stock, only 2 left!

0

3

Ariens 04276800

GEARCASE, COMPACT MACHINED

$71.99

$

Usually ships in 4-12 days

0

3

Ariens 52004400

GEAR CASE, 24" IRON SM TOP-LD

Note: Component Service Assembly

$318.99

$

In Stock, only 1 left!

0

3

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

Note: Component Service Part

$29.99

$

In Stock, Qty 20+

0

4

Ariens 04277000

THRUST COLLAR, .75" ID SLIPFIT

$7.49

$

Usually ships in 4-12 days

0

5

Ariens 04280251

COVER, TOP - COMPACT

$22.99

$

In Stock, only 2 left!

0

6

Ariens 04282400

GASKET, TOP - COMPACT GEARCASE

$5.99

$

In Stock, only 2 left!

0

7

Ariens 04302800

COVER, GEAR CASE 1.50"

$18.99

$

In Stock, only 3 left!

0

8

Ariens 04323600

BUSHING RETAINER, COMPACT

$8.99

$

Usually ships in 4-12 days

0

9

Ariens 06401136

WSHR, FLT .760X1.225X.032 ZCC

$4.99

$

In Stock, only 1 left!

0

10

Ariens 05501020

BSHG-FLG .755X.878X.75X1.25

$10.99

$

Usually ships in 4-12 days

0

11

Ariens 05501108

BSHG-FLG .503X1.303X.62X1.465

$8.49

$

Usually ships in 4-12 days

0

12

Ariens 05501106

BSHG-FLG .755X.878X.424X1.25

$5.49

$

In Stock, only 3 left!

0

13

Ariens 05600509

SEAL-OIL .748X1.125X.312 TBC29

$7.99

$

In Stock, Qty 12

0

14

Ariens 05600508

SEAL-OIL .748X1.300X.250 TBC29

$7.99

$

In Stock, only 2 left!

0

15

Ariens 05902009

BLT, SEMS .25-20X.50 G5 ZCC

$5.49

$

Usually ships in 4-12 days

0

16

Ariens 05700212

RG-RTNG-INT 1.500X.050

$3.99

$

In Stock, only 3 left!

0

17

Ariens 05800207

PIN-STR .188X1.00 6150

$3.49

$

In Stock, only 2 left!

0

18

Ariens 07001830

SCR, .380-15X.500 W/SEAL WASHER

$3.99

$

In Stock, only 2 left!

0

19

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$3.99

$

In Stock, only 2 left!

0

20

Ariens 05501107

BSHG-FLG COMPACT, RIGHT

$20.99

$

In Stock, only 2 left!
