920029 - Ariens Compact 24" Snow Blower, Ariens AX 223cc engine (SN: 360941 & Above) Wheels And Axle - Compact 24 Parts Diagram

Compact 24" Snow Blower, Ariens AX 223cc engine

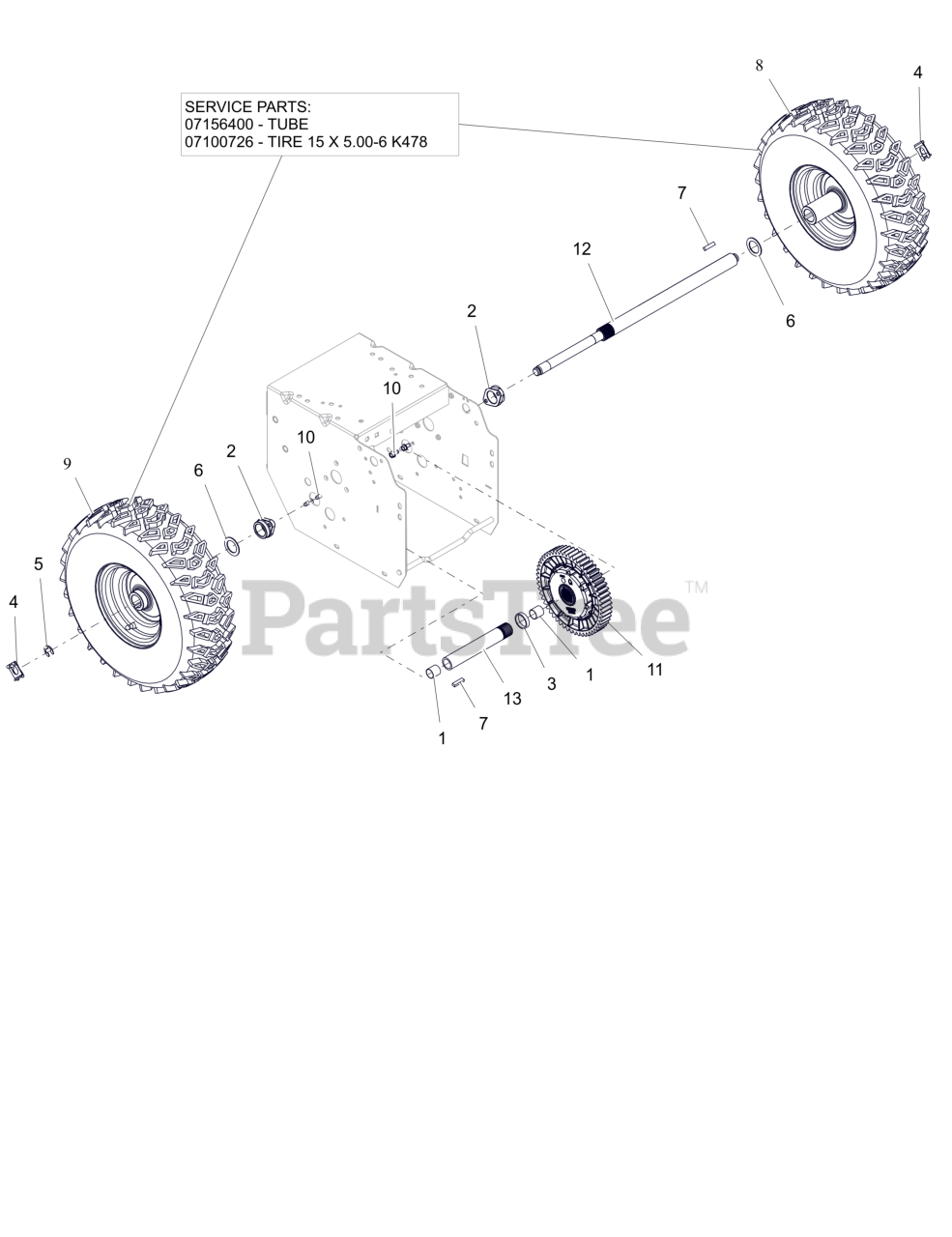

Wheels And Axle - Compact 24 Parts Diagram

  • Title

1

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

2

Ariens 05501412

BSHG, AXLE 1.000X1.380X.650

$5.99

$

Usually ships in 4-12 days

0

3

Ariens 05501413

BSHG, SLV 1.062X1.228X.268

$5.49

$

Usually ships in 4-12 days

0

4

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

5

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 6

0

6

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, only 1 left!

0

8

Ariens 07101410

TIRE/WHEEL LH 15X5.00-6 REMOTE

$112.99

$

Usually ships in 4-12 days

0

8

Ariens 07156400

TUBE 15 X 5.00-6

Note: Component Service Part

$22.99

$

In Stock, only 1 left!

0

8

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: Component Service Part

$60.99

$

Usually ships in 4-12 days

0

9

Ariens 07101411

TIRE/WHEEL RH 15X5.00-6 REMOTE

$112.99

$

Usually ships in 4-12 days

0

9

Ariens 07156400

TUBE 15 X 5.00-6

Note: Component Service Part

$22.99

$

In Stock, only 1 left!

0

9

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: Component Service Part

$60.99

$

Usually ships in 4-12 days

0

10

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 09165600

DIFFERENTIAL, AUTOMATIC

$100.99

$

Usually ships in 4-12 days

0

12

Ariens 09165700

AXLE, LONG - COMPACT AUTO DIFF

$76.99

$

Usually ships in 4-12 days

0

13

Ariens 52009100

AXLE, SHORT - W/BUSHINGS

$52.99

$

Usually ships in 4-12 days

0
