920032 - Ariens Compact 24" RapidTrak Snow Blower, Ariens AX 223cc engine (SN: 000101 - 000556) Tracks Parts Diagram

Compact 24" RapidTrak Snow Blower, Ariens AX 223cc engine

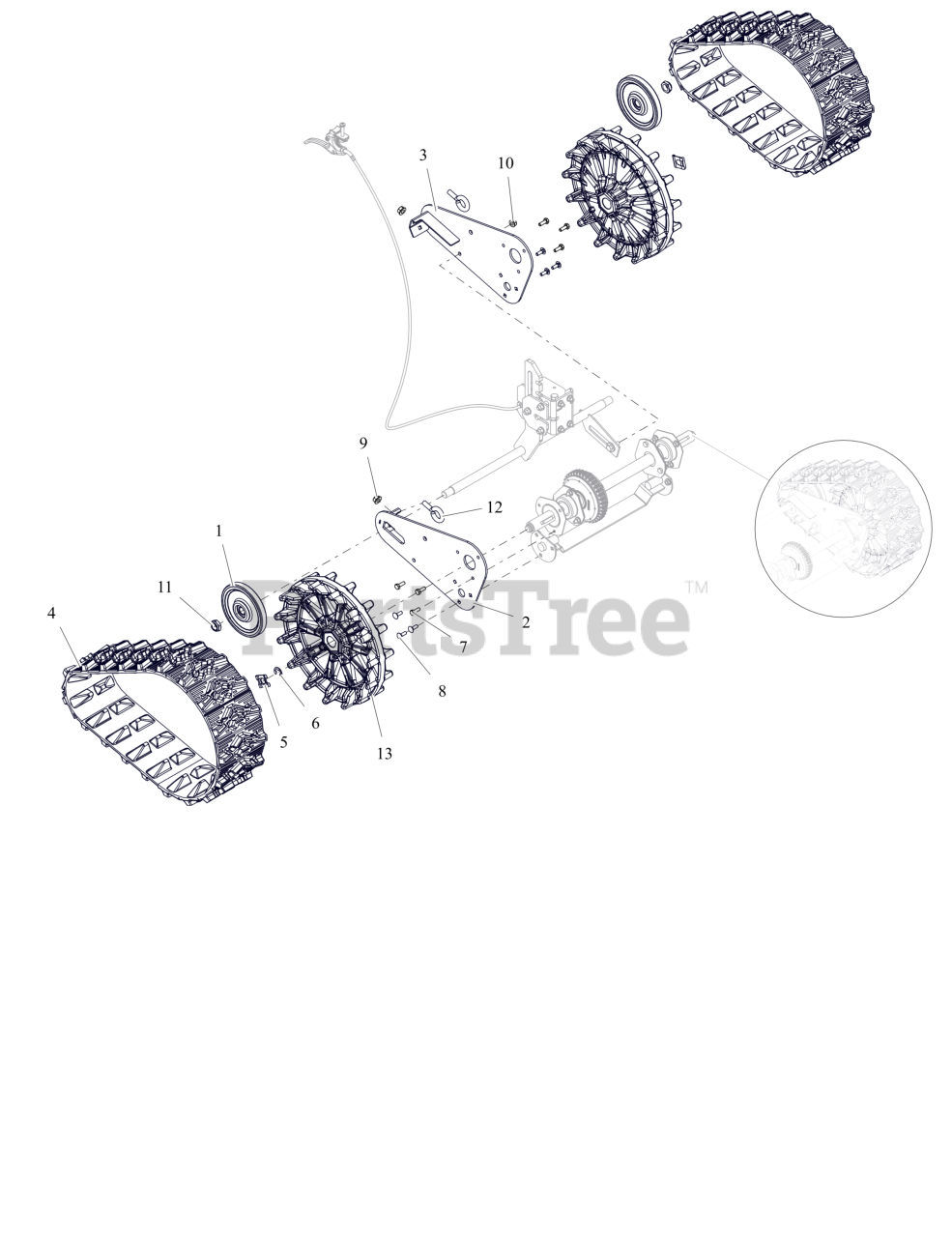

Tracks Parts Diagram

  • Title

1

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

2

Ariens 09436351

PLATE- LH-COMP BWT WELDMT

$72.99

$

Usually ships in 4-12 days

0

3

Ariens 09436451

PLATE- LH-COMP BWT WELDMT

$72.99

$

Usually ships in 4-12 days

0

4

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

5

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0

7

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 13

0

8

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 7

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500936

NUT, NYL LK .625-18 ZCC

$4.99

$

In Stock, Qty 12

0

12

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 07500512

WHEEL- COMPACT PLASTIC DRIVE

$95.99

$

Usually ships in 4-12 days

0
