920032 - Ariens Compact 24" RapidTrak Snow Blower, Ariens AX 223cc engine (SN: 360000 & Above) Tracks Axles Parts Diagram

Compact 24" RapidTrak Snow Blower, Ariens AX 223cc engine

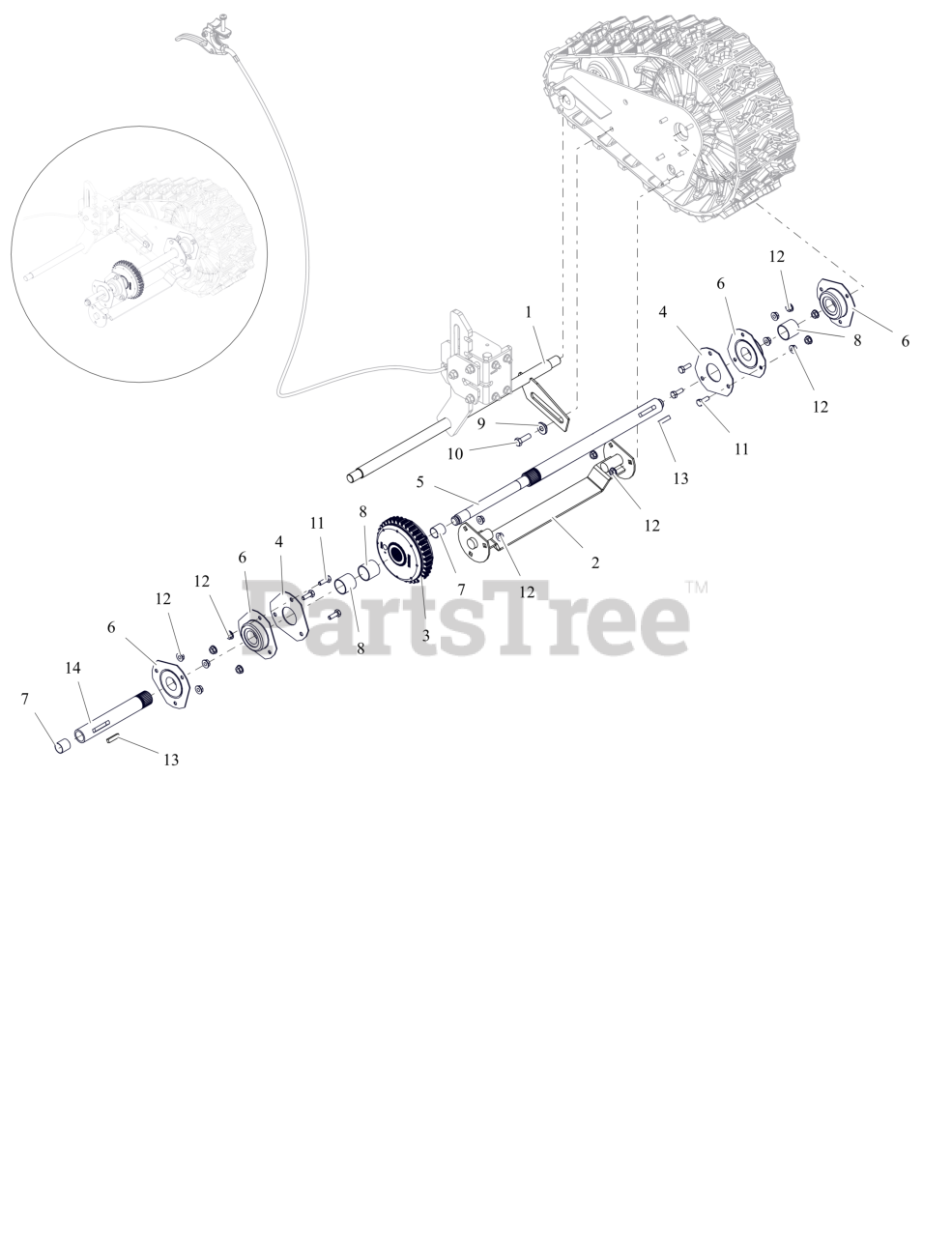

Tracks Axles Parts Diagram

  • Title

1

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$65.99

$

Usually ships in 4-12 days

0

2

Ariens 09436851

MOUNT- COMPACT RAPID TRACK

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 04852200

AXLE,LONG - TRACK (DIFF)

$44.99

$

Usually ships in 4-12 days

0

6

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 8

0

7

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

8

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

9

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

11

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 13

0

12

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, only 1 left!

0

14

Ariens 52108100

AXLE,SHORT TRACK W/BUSHINGS

$45.99

$

Usually ships in 4-12 days

0
