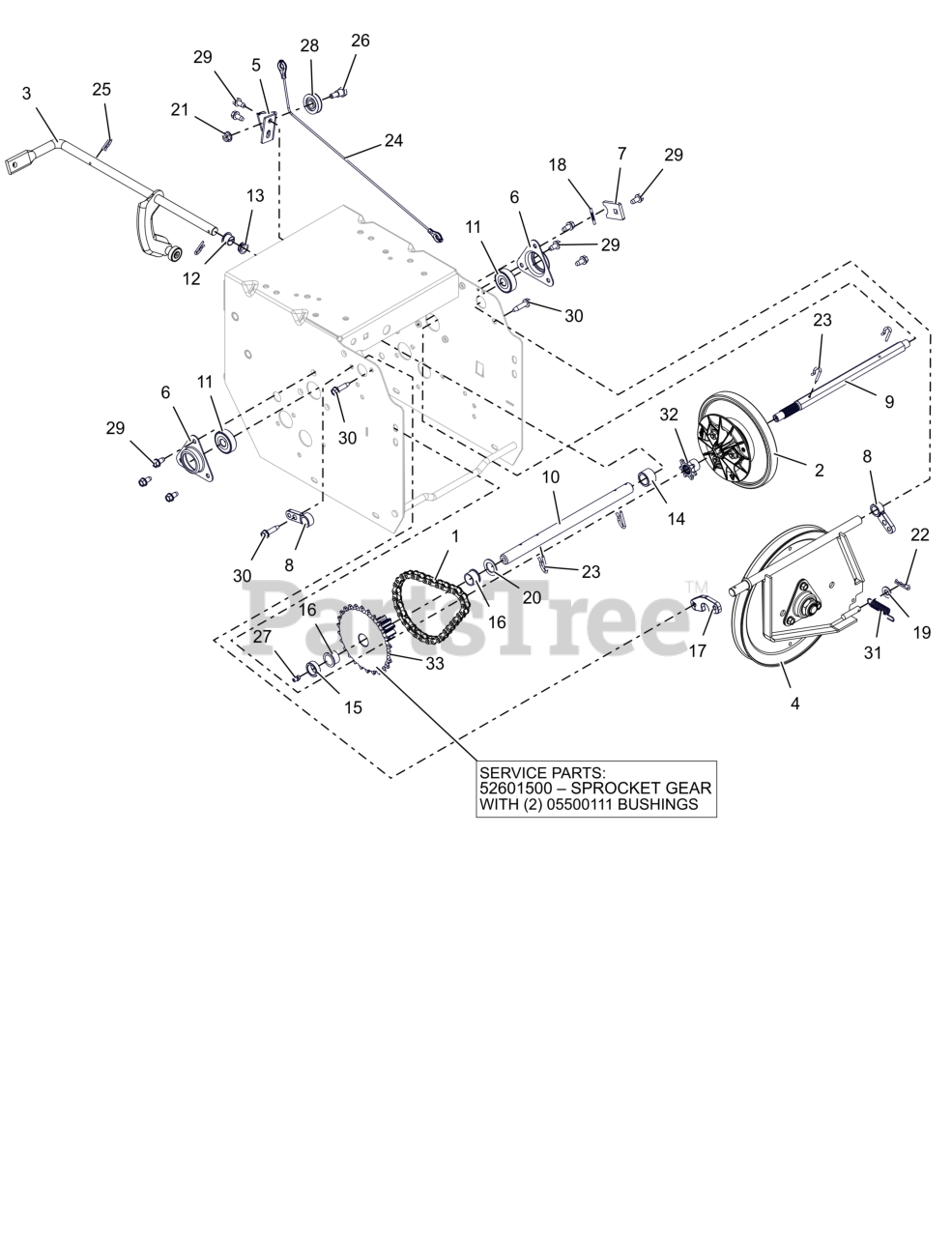

920035 - Ariens Compact 24" RapidTrak Snow Blower, Ariens AX 224cc engine (SN: 000101 & Above) Friction Drive Parts Diagram

Compact 24" RapidTrak Snow Blower, Ariens AX 224cc engine

Friction Drive Parts Diagram

  • Title

1

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 2 left!

0

2

Ariens 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$36.99

$

In Stock, Qty 10

0

3

Ariens 04987300

ARM, SHIFT-SMALL DASH (ASSY)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 52105000

PLATE, SWING - ASSEMBLY

$87.99

$

In Stock, only 1 left!

0

5

Ariens 00373000

BRKT, CABLE PULLEY

$5.49

$

In Stock, only 3 left!

0

6

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 1 left!

0

7

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 1 left!

0

8

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, only 2 left!

0

9

Ariens 04512800

SHAFT, HEX W/SPLINE TRACK

$31.99

$

Usually ships in 4-12 days

0

10

Ariens 04512900

SHAFT, PINION TRACK

$46.99

$

Usually ships in 4-12 days

0

11

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 16

0

12

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

13

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

14

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, Qty 5

0

15

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 15

0

17

Ariens 05500113

SPACER, SWING GATE

$6.49

$

In Stock, only 1 left!

0

18

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

In Stock, only 2 left!

0

19

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06401117

WSHR, FLT .630X1.005X.062 ZCC

$0.99

$

In Stock, Qty 9

0

21

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 5

0

22

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 13

0

24

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

$10.99

$

In Stock, only 1 left!

0

25

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 2 left!

0

27

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

Usually ships in 4-12 days

0

28

Ariens 07300012

PULLEY, CABLE

$5.49

$

Usually ships in 4-12 days

0

29

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07400204

SCR, TAP .25-20X1.00 TT2000 ZCC

$1.99

$

Usually ships in 4-12 days

0

31

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 1 left!

0

32

Ariens 09478400

SPROCKET- PINION 7T W/SPLINE

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 09478500

PINION & SPROCKET

Note: Component Service Assesmbly

$

$

Not available
