920313 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 250000 & Above) Chute Rotation Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

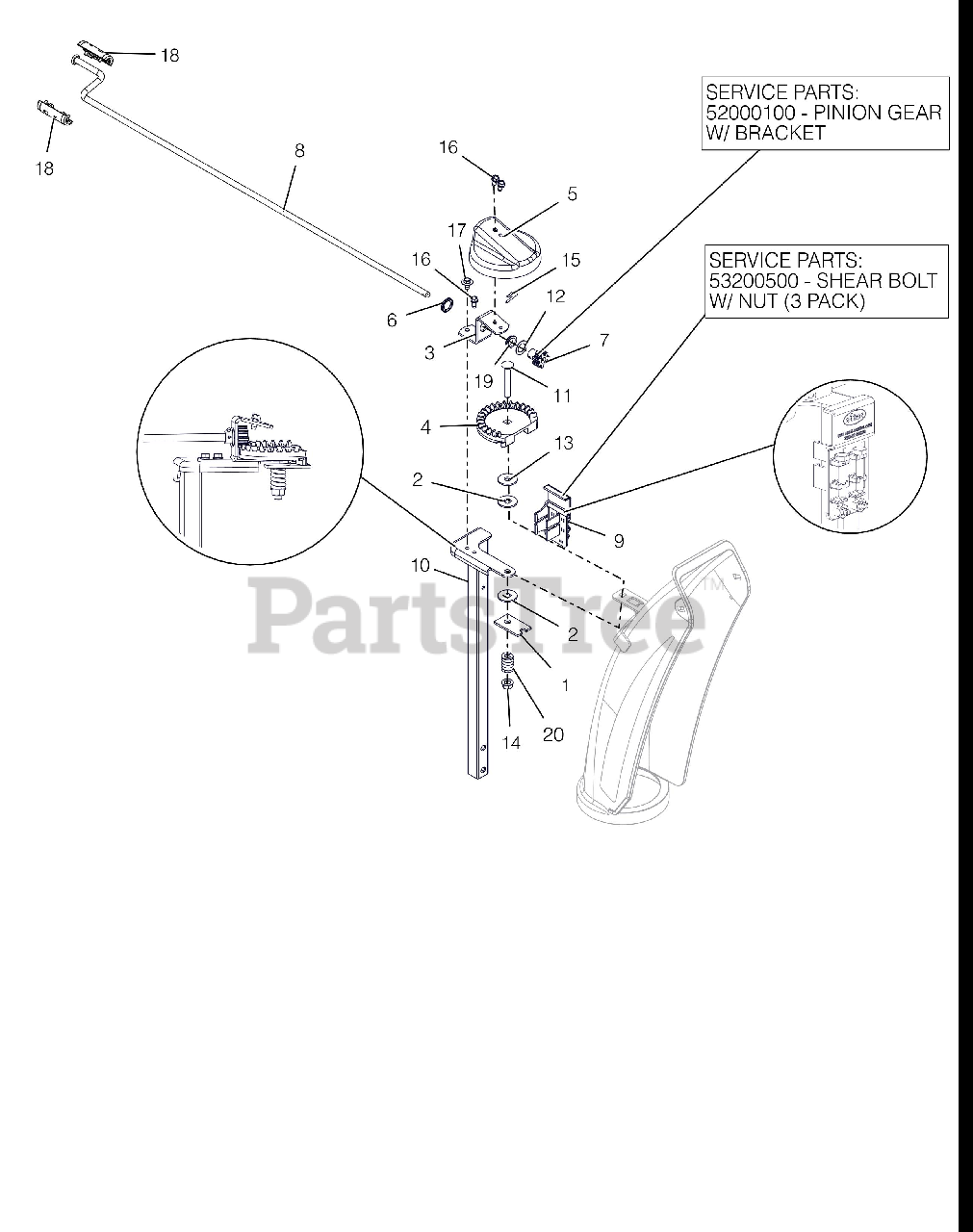

Chute Rotation Parts Diagram

  • Title

1

Ariens 00398000

PLATE, FRICTION

$7.99

$

In Stock, only 2 left!

0

2

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, only 2 left!

0

3

Ariens 01972451

BRACKET, PINION GEAR
(Superseded to 01972400)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 14

0

5

Ariens 03223000

GEAR COVER

$13.99

$

In Stock, only 2 left!

0

6

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, only 2 left!

0

7

Ariens 03735300

PINION GEAR - CHUTE
(Superseded to 09739601)

$11.99

$

In Stock, only 1 left!

0

7

Ariens 52000100

PINION GEAR W/BRACKET

Note: SERVICE PART

$35.99

$

In Stock, only 2 left!

0

8

Ariens 04338000

ROD, CHUTE CRANK, COMP&SNOTEK

$54.99

$

Usually ships in 4-12 days

0

9

Ariens 52004500

HOLDER W SMALL SHEAR BOLT /NUT

$

$

Not available

9

Ariens 53200500

SHEAR BOLT WITH NUT

Note: SERVICE PART

$3.49

$

In Stock, only 4 left!

0

10

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$42.99

$

Usually ships in 4-12 days

0

11

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, only 2 left!

0

12

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 7

0

13

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$1.49

$

In Stock, Qty 19

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.99

$

In Stock, only 2 left!

0

18

Ariens 07500129

KNOB, CHUTE CRANK - SNAP BLK
(Superseded to 07500510)

$3.99

$

In Stock, only 2 left!

0

19

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, only 2 left!

0

20

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, only 2 left!

0
