920314 - Ariens Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine (SN: 250000 & Above) Controls Parts Diagram

Sno-Tek 28" Snow Blower, LCT StormForce 208cc engine

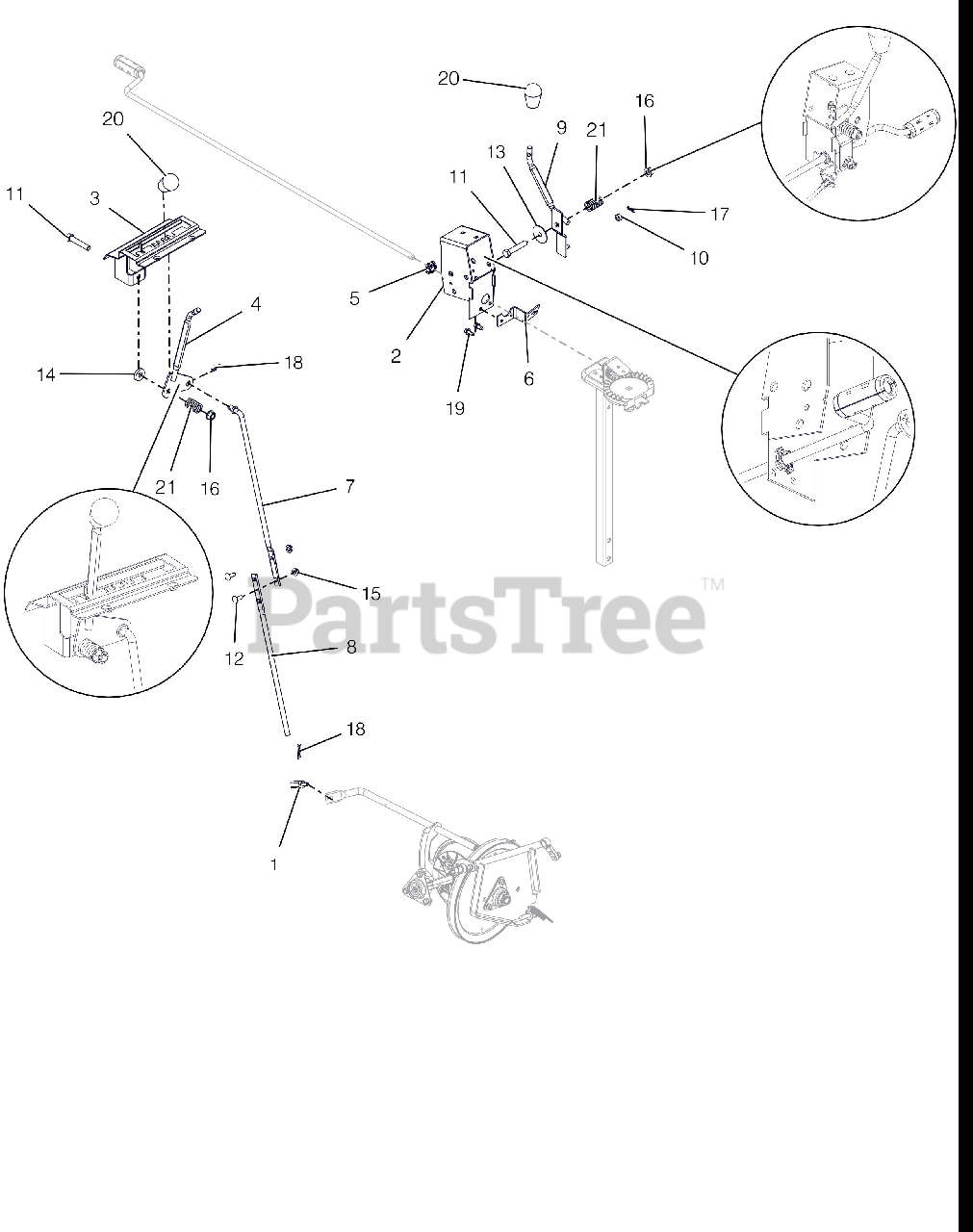

Controls Parts Diagram

  • Title

1

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$9.99

$

In Stock, Qty 11

0

2

Ariens 04316651

WELDMENT, BRACKET INTERLOCK

$29.99

$

Usually ships in 4-12 days

0

3

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 04846700

LEVER, CONTROL-SHIFT(WELDMENT)
(Superseded to 30191200)

$18.99

$

Usually ships in 4-12 days

0

5

Ariens 04322700

CRANK BUSHING, NYLON CHUTE BK

$6.49

$

In Stock, Qty 12

0

6

Ariens 04333100

ANCHOR, DEFLECTOR CABLE

$10.99

$

Usually ships in 4-12 days

0

7

Ariens 04334967

ROD, SHIFT - UPPER
(Superseded to 04334900)

$37.99

$

In Stock, only 2 left!

0

8

Ariens 04753767

ROD, SHIFT - LOWER(SMALL DASH)
(Superseded to 09167500)

$31.99

$

In Stock, only 1 left!

0

9

Ariens 04846600

WELDMENT,SM DASH DEFL CONTROL
(Superseded to 30191100)

$19.99

$

In Stock, only 2 left!

0

10

Ariens 05501012

BSHG-SLV .265X.500X.219

$5.49

$

In Stock, only 2 left!

0

11

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.49

$

In Stock, Qty 10

0

18

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07500224

KNOB,SOFT TEARDROP,PUSH-ON BLK

$11.99

$

Usually ships in 4-12 days

0

21

Ariens 08335700

SG-COMP .125X.781X1.250

$10.99

$

In Stock, only 3 left!

0
