920317 (ST 22 L) - Ariens Compact 22" Snow Blower, Briggs & Stratton (SN: 181000 - 249999) Auger And Impeller - 22" Parts Diagram

Compact 22" Snow Blower, Briggs & Stratton

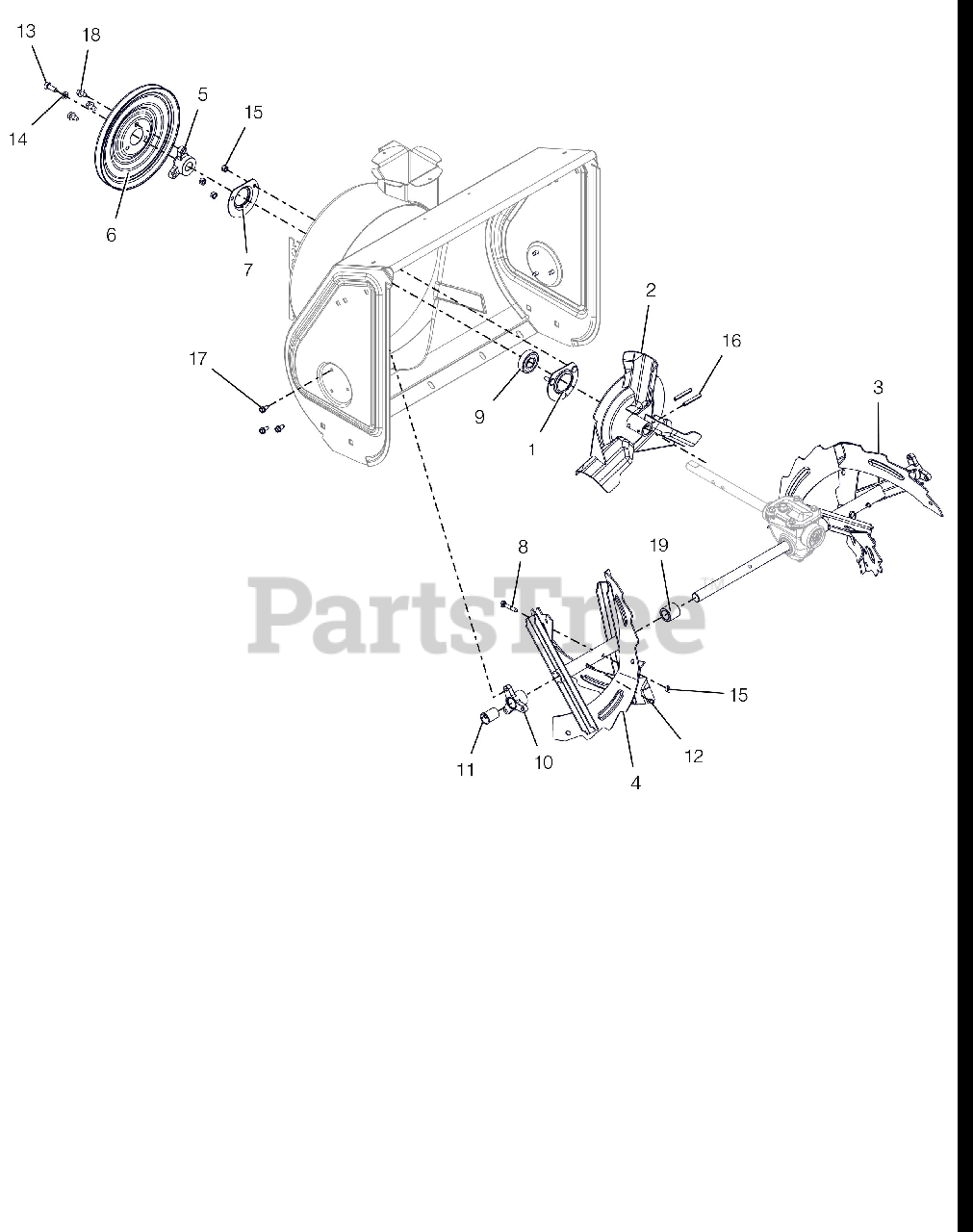

Auger And Impeller - 22" Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$21.99

$

In Stock, only 2 left!

0

2

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$92.99

$

In Stock, only 2 left!

0

3

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

$

$

Not available

4

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

$

$

Not available

5

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$66.99

$

Usually ships in 4-12 days

0

7

Ariens 01014200

BEARING FLANGE

$6.99

$

In Stock, Qty 8

0

8

Ariens 53200500

SHEAR BOLT WITH NUT

$3.99

$

In Stock, Qty 20+

0

9

Ariens 05406300

BRG-BALL .750X1.750X.50

$29.99

$

In Stock, Qty 11

0

10

Ariens 05500103

BUSHING, RAKE SHAFT .75"

$15.99

$

In Stock, Qty 5

0

11

Ariens 05500109

BSHG-FLG SPLIT NYLINER .75"ID

$5.49

$

In Stock, Qty 20+

0

12

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$5.99

$

In Stock, Qty 20+

0

13

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05803700

PIN-ROLL .250X1.75

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05500917

BSHG-SLV .75X1.12X1.062 NYL BK

$5.49

$

In Stock, only 1 left!

0
