920318 (ST 24 LET) - Ariens Compact 24" Track Snow Blower, 208cc Briggs & Stratton (SN: 123000 - 189999) Reduction Drive Parts Diagram

Compact 24" Track Snow Blower, 208cc Briggs & Stratton

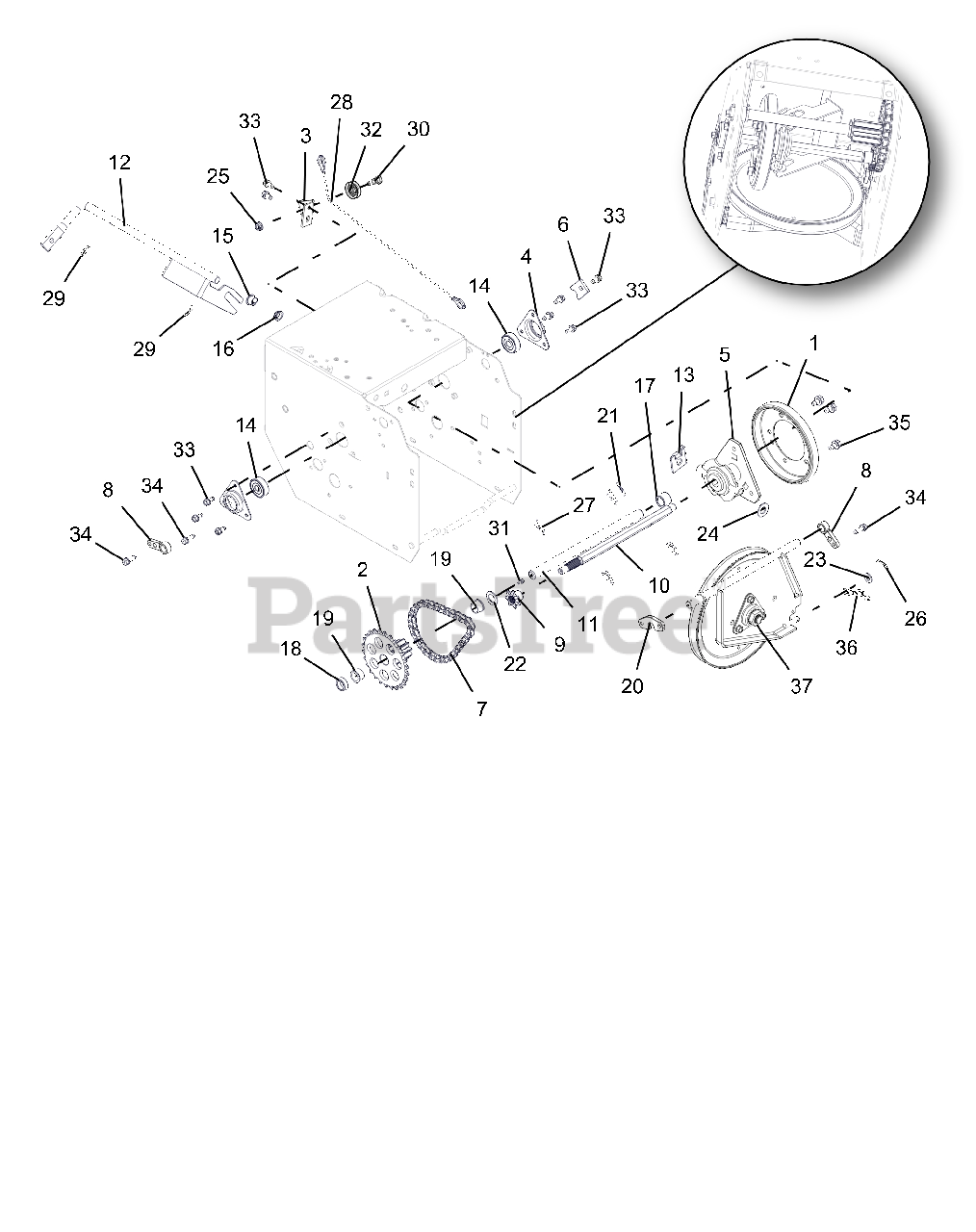

Reduction Drive Parts Diagram

  • Title

1

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$34.99

$

In Stock, Qty 20+

0

2

Ariens 00190600

PINION & SPROCKET

$

$

Not available

3

Ariens 00373051

BRACKET, CABLE PULLEY

$20.99

$

Usually ships in 4-12 days

0

4

Ariens 00383000

FLANGE, BEARING

$12.99

$

In Stock, only 2 left!

0

5

Ariens 00383100

CARRIER, DRIVE DISK

$117.99

$

In Stock, Qty 11

0

6

Ariens 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

7

Ariens 02466200

CHAIN - #41, 32 PITCHES

$5.99

$

In Stock, Qty 15

0

8

Ariens 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, Qty 7

0

9

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 04512800

SHAFT, HEX W/SPLINE TRACK

$30.99

$

Usually ships in 4-12 days

0

11

Ariens 04512900

SHAFT, PINION TRACK

$45.99

$

Usually ships in 4-12 days

0

12

Ariens 04655300

WELDMENT, SHIFT FORK

$45.99

$

Usually ships in 4-12 days

0

13

Ariens 04671900

BRACKET, FORMED - SHIFT FORK

$3.49

$

In Stock, Qty 8

0

14

Ariens 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

15

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

16

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 13

0

17

Ariens 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, Qty 9

0

18

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 9

0

19

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

21

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

24

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

26

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

27

Ariens 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

28

Ariens 06900504

CABLE, LOWER TRACTION (CMPCT)

Note: (CMPCT)

$7.99

$

In Stock, only 1 left!

0

29

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

30

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

31

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

32

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

33

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

35

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

37

Ariens 52105000

PLATE, SWING - ASSEMBLY

$79.99

$

In Stock, only 4 left!

0
