920318 (ST 24 LET) - Ariens Compact 24" Track Snow Blower, 208cc Briggs & Stratton (SN: 250084 - 259999) Frame And Engine - 24" CE Parts Diagram

Compact 24" Track Snow Blower, 208cc Briggs & Stratton

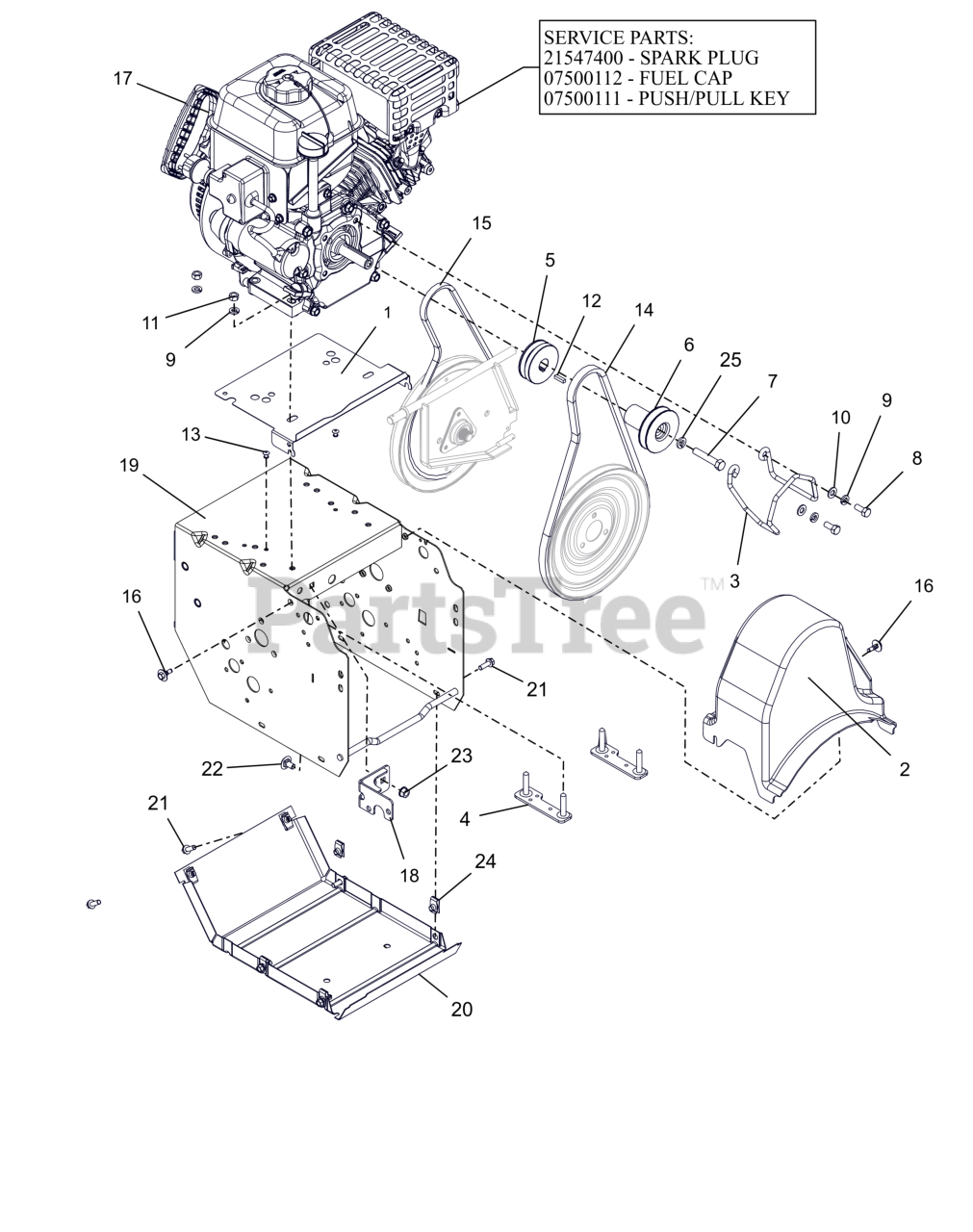

Frame And Engine - 24" CE Parts Diagram

  • Title

1

Ariens 04895151

BAFFLE, COMPACT

$8.49

$

Usually ships in 4-12 days

0

2

Ariens 03881000

COVER, COMPACT BELT

$22.99

$

In Stock, only 2 left!

0

3

Ariens 04561800

FINGER, BELT

$28.99

$

Usually ships in 4-12 days

0

4

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 04553400

SHEAVE, TRACTION-COMPACT TRACK

$116.99

$

Usually ships in 4-12 days

0

6

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$42.99

$

In Stock, only 2 left!

0

7

Ariens 05902015

BLT, HEX .38-24X2.00 G5 ZCC

$4.99

$

In Stock, only 1 left!

0

8

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.99

$

In Stock, Qty 7

0

12

Ariens 06606100

KEY-SQ .188X.75X.188

$4.99

$

In Stock, only 2 left!

0

13

Ariens 06800140

RVT, POP .1875 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Ariens 07200725

V-BELT, HA-RAW EDGE

$31.99

$

In Stock, Qty 20+

0

15

Ariens 07200114

V-BELT, 3L-WRAPPED

$26.99

$

In Stock, only 2 left!

0

16

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$3.99

$

In Stock, Qty 18

0

17

Ariens 08200922

ENGINE, ARIENS AX208 240V/60W

$

$

Not available

17

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

17

Ariens 07500112

CAP, FUEL TANK BLACK

Note: SERVICE PART

$21.99

$

In Stock, Qty 14

0

17

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

Note: SERVICE PART

$6.49

$

In Stock, Qty 12

0

18

Ariens 00657059

WELDMENT, FRAME BRACKET

$36.99

$

Usually ships in 4-12 days

0

19

Ariens 04875659

FRAME, MAIN-WELDMENT

$144.99

$

Usually ships in 4-12 days

0

20

Ariens 00492359

COVER, BOTTOM

$53.99

$

In Stock, only 2 left!

0

21

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

22

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

24

Ariens 07009000

NUT-RTNR .25-20X.56

$1.99

$

In Stock, Qty 20+

0

25

Ariens 06300120

WSHR, LK-HVY .375X.115 ZCC

$5.49

$

In Stock, Qty 18

0
