920321 (ST 24 LE) - Ariens Compact 24" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 129999) Wheels And Axles Parts Diagram

Compact 24" Snow Blower, Ariens AX 208cc engine

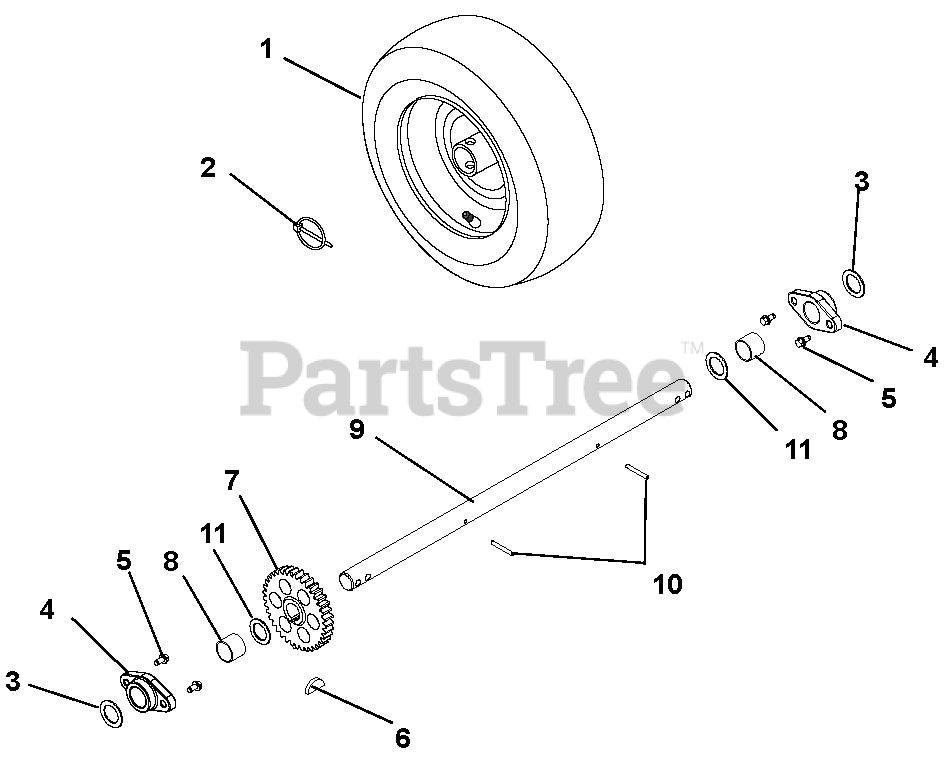

Wheels And Axles Parts Diagram

  • Title

1

Ariens 07100811

TIRE/WHEEL, 13X4.10-6 K398A
(Superseded to 07101238)

$79.99

$

Usually ships in 4-12 days

0

1

Ariens 07101015

TIRE/WHEEL, RH 15X5.00-6 PIN
(Superseded to 07101206)

Note: (920021, 316, 321)

$112.99

$

In Stock, only 1 left!

0

1

Ariens 07101016

TIRE/WHEEL, LH 15X5.00-6 PIN
(Superseded to 07101207)

Note: (920021, 316, 321)

$112.99

$

Usually ships in 4-12 days

0

1

Ariens 07100223

TIRE/WHEEL, RH 4.10-6 PIN K478
(Superseded to 07101229)

Note: (920317, 325, 326)

$99.99

$

Usually ships in 4-12 days

0

1

Ariens 07100224

TIRE/WHEEL, LH 4.10-6 PIN K478
(Superseded to 07101228)

Note: (920317, 325, 326)

$93.99

$

In Stock, only 1 left!

0

1

Ariens 07100725

TIRE, 4.10-6 K478

Note: (920317, 325, 326)

$48.99

$

Usually ships in 4-12 days

0

1

Ariens 07100814

TIRE, 13" K398A

Note: (920013, 014)

$36.99

$

In Stock, only 4 left!

0

1

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: (920021, 316, 321) Component Service Part

$60.99

$

Usually ships in 4-12 days

0

1

Ariens 07156400

TUBE 15 X 5.00-6

Note: (920021, 316, 321) Optional Component Service Part

$22.99

$

In Stock, only 1 left!

0

2

Ariens 07053700

PIN-LOK .31X1.75

$2.99

$

In Stock, only 4 left!

0

3

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

Note: (920013, 014, 317, 325, 326)

$1.49

$

In Stock, Qty 6

0

3

Ariens 05500917

BSHG-SLV .75X1.12X1.062 NYL BK

Note: (920021, 316, 321)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 05500101

BSHG .75X1.125X.65

$10.99

$

In Stock, only 3 left!

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

7

Ariens 00657800

SPUR GEAR, 54T .75ID X 6.75PD

$40.99

$

Usually ships in 4-12 days

0

8

Ariens 05500140

BSHG-SLV .766 X 1.125 X .500

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00494200

SHAFT, AXLE

Note: (920013, 014, 317, 325, 326)

$70.99

$

Usually ships in 4-12 days

0

9

Ariens 03881800

AXLE, COMPACT 920,XXX 15" TIRE

Note: (920021, 316, 321)

$70.99

$

Usually ships in 4-12 days

0

10

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 16

0

11

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6
