920330 - Ariens Compact 24" RapidTrak Snow Blower, Ariens AX 208cc engine (SN: 000101 & Above) Dash - Compact 24 RapidTrak Parts Diagram

Compact 24" RapidTrak Snow Blower, Ariens AX 208cc engine

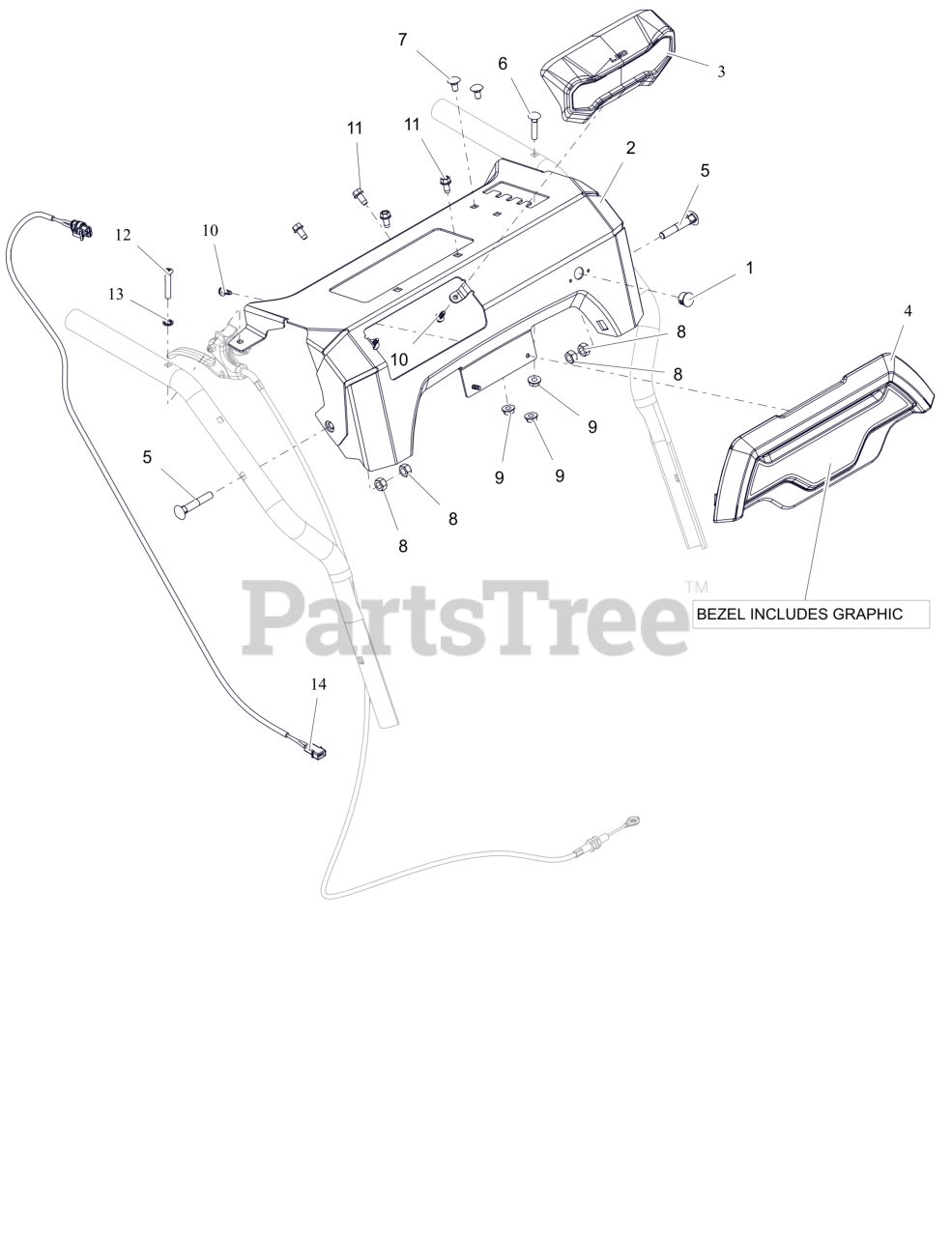

Dash - Compact 24 RapidTrak Parts Diagram

  • Title

1

Ariens 01554900

HOLE PLUG, PLASTIC .56 HOLE

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 52009500

PANEL, DASH - COMPACT

$125.99

$

Usually ships in 4-12 days

0

3

Ariens 09382600

HEADLIGHT ASM- LED

$64.99

$

Usually ships in 4-12 days

0

4

Ariens 09382500

BEZEL, SMALL - COMPACT

$22.99

$

Usually ships in 4-12 days

0

5

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

7

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 7

0

8

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

10

Ariens 06100239

SCR, PLASTIC #10X.50

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06100236

SCR,OVAL .25-20X1.50 ZCC

$3.99

$

In Stock, only 4 left!

0

13

Ariens 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 09391200

HARNESS- WIRE - LT

$23.99

$

Usually ships in 4-12 days

0
