920335 - Ariens Compact 24" RapidTrak Snow Blower, Ariens AX 224cc engine (SN: 000101 & Above) Frame and Engine – Compact 24 RapidTrak CE Parts Diagram

Compact 24" RapidTrak Snow Blower, Ariens AX 224cc engine

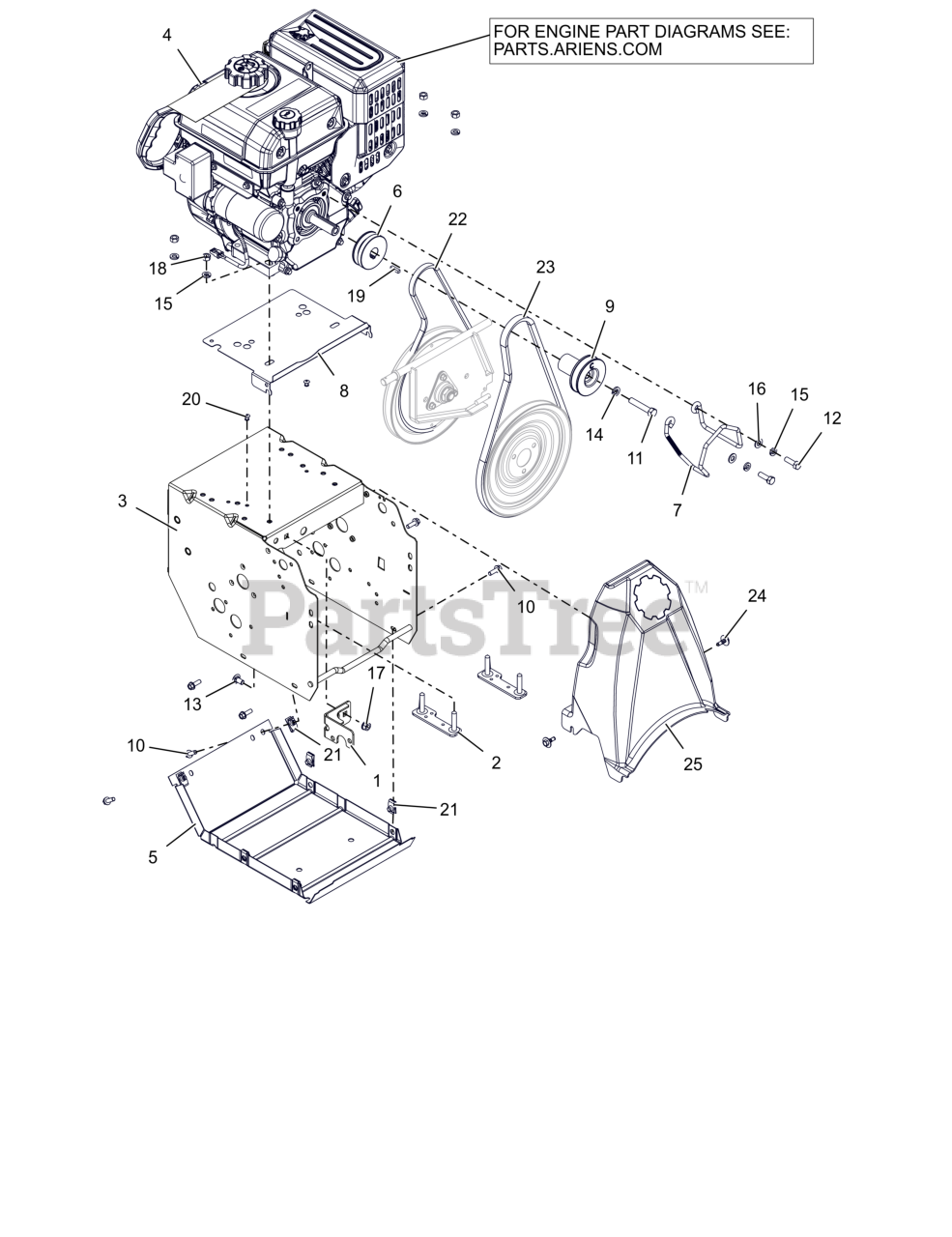

Frame and Engine – Compact 24 RapidTrak CE Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

3

Ariens 04875659

FRAME, MAIN-WELDMENT

$131.99

$

Usually ships in 4-12 days

0

4

08201536

ENGINE, ARIENS AX224 240V/60W

$

$

Not available

5

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

6

Ariens 04553400

SHEAVE, TRACTION-COMPACT TRACK

$105.99

$

Usually ships in 4-12 days

0

7

Ariens 04561800

FINGER, BELT

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 04895159

BAFFLE- COMPACT

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 05243600

SHEAVE, ATTACHMENT SINGLE GRV

$32.99

$

Usually ships in 4-12 days

0

10

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 05902015

BLT, HEX .38-24X2.00 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

12

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.49

$

In Stock, Qty 8

0

19

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 2 left!

0

20

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07200114

V-BELT, 3L-WRAPPED

$25.99

$

In Stock, Qty 5

0

23

Ariens 07200725

V-BELT, HA-RAW EDGE

$29.99

$

In Stock, Qty 20+

0

24

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, Qty 20+

0

25

Ariens 09393100

COVER- CLASSIC BELT

$12.99

$

Usually ships in 4-12 days

0
