920402 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 175000 - 219999) Auger Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

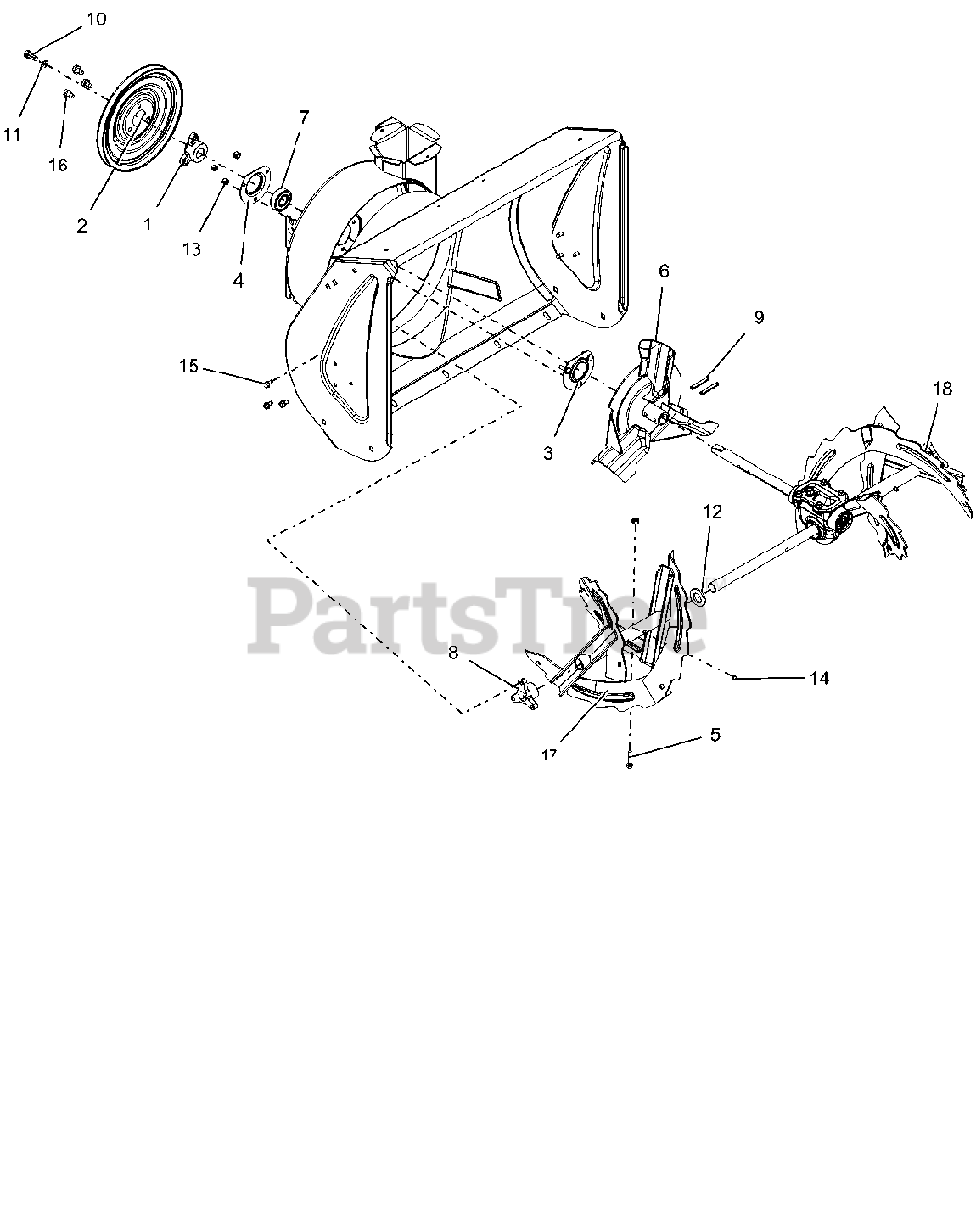

Auger Parts Diagram

  • Title

1

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$63.99

$

Usually ships in 4-12 days

0

3

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 3 left!

0

4

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

5

Ariens 53200500

SHEAR BOLT WITH NUT

$3.49

$

In Stock, Qty 20+

0

6

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$84.99

$

In Stock, only 2 left!

0

7

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 3 left!

0

8

Ariens 05500918

BUSHING, RAKE SHAFT .75"

$15.99

$

In Stock, Qty 6

0

9

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 11

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

11

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

12

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

13

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

15

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 53213100

RAKE, 24" RH, BLK SERR W/ZERK

$120.99

$

In Stock, only 4 left!

0

18

Ariens 53213200

RAKE, 24" LH, BLK SERR W/ZERK

$120.99

$

Usually ships in 4-12 days

0
