920402 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 175000 - 219999) Engine And Frame Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

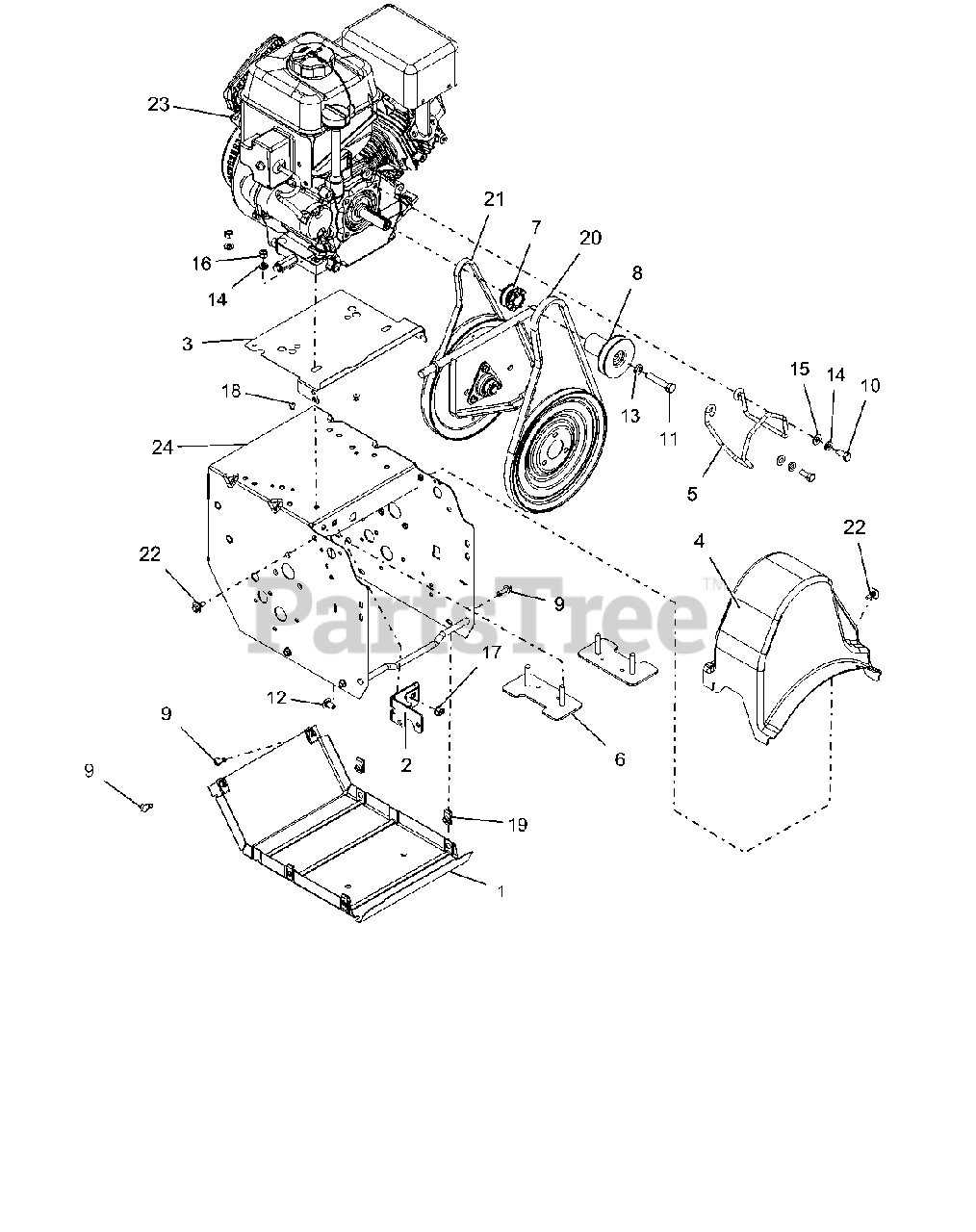

Engine And Frame Parts Diagram

  • Title

1

Ariens 00492351

COVER, BOTTOM

$

$

Not available

2

Ariens 00657051

WELDMENT, FRAME BRACKET

$31.99

$

Usually ships in 4-12 days

0

3

Ariens 04895151

BAFFLE, COMPACT

$7.49

$

Usually ships in 4-12 days

0

4

Ariens 03881000

COVER, COMPACT BELT

$21.99

$

In Stock, only 2 left!

0

5

Ariens 04561800

FINGER, BELT

$26.99

$

Usually ships in 4-12 days

0

6

Ariens 04334100

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 04414000

SHEAVE, TRACTION

$6.49

$

In Stock, only 2 left!

0

8

Ariens 04498800

SHEAVE,AUGER 3/4" PM

$40.99

$

In Stock, only 1 left!

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

11

Ariens 05958600

BLT-HEX .38-24X2.0 YWZC
(Superseded to 05902015)

$3.49

$

In Stock, only 1 left!

0

12

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

14

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

17

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

19

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07200725

V-BELT, HA-RAW EDGE

$29.99

$

In Stock, Qty 20+

0

21

Ariens 07200603

V-BELT, 3L-WRAPPED

$15.99

$

In Stock, only 2 left!

0

22

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

23

Ariens 08200817

ENGINE, SNO-TEK 208 120V

$

$

Not available

24

Ariens 04885351

FRAME, MAIN

$75.99

$

Usually ships in 4-12 days

0
