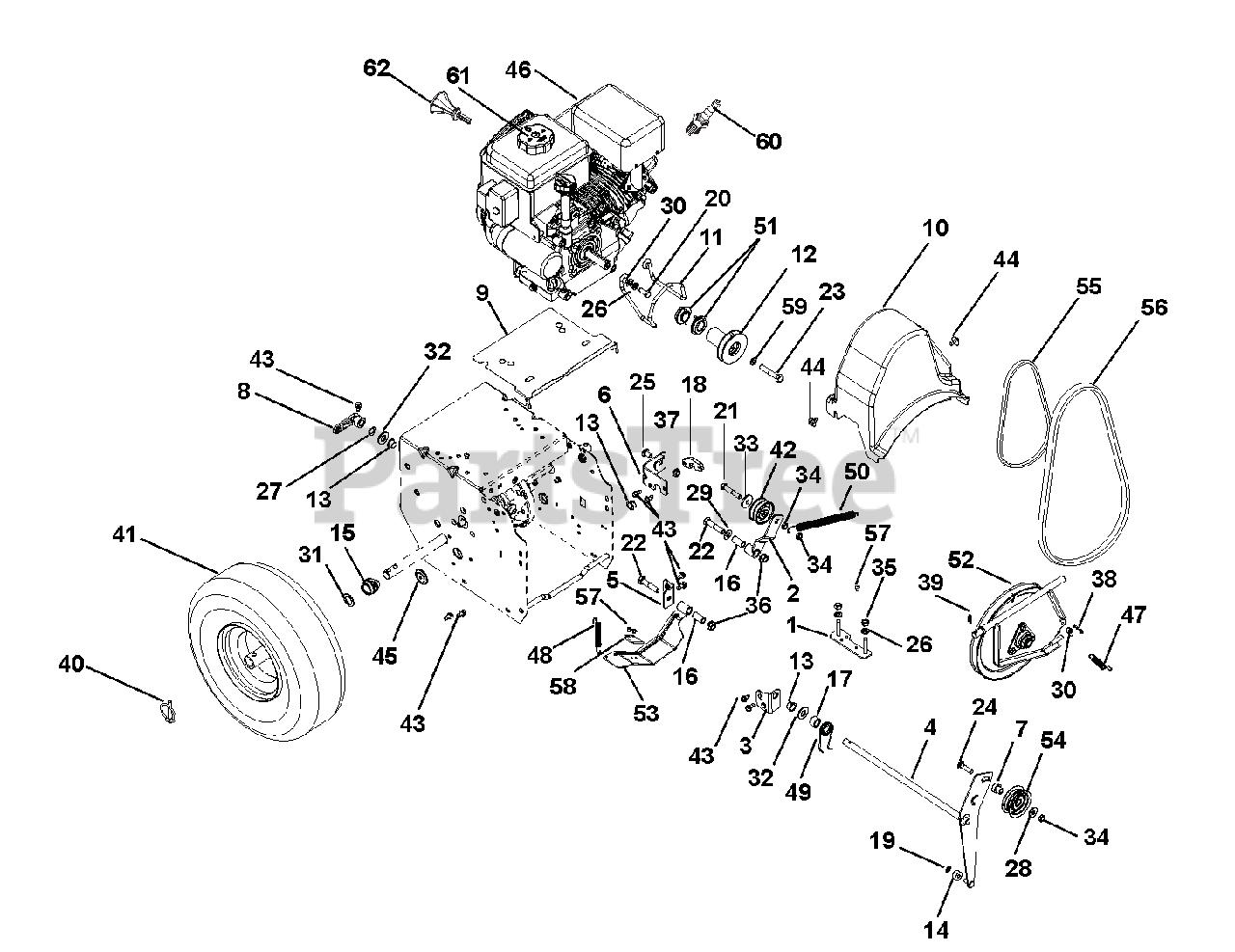

920404 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 136cc engine (SN: 035000 & Above)

Sno-Tek 24" Snow Blower, LCT StormForce 136cc engine

920404 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 136cc engine (SN: 035000 & Above) > Parts Diagrams (7) > Engine and Belt Drive

  • Title
00188400

1

STRAP, ENGINE BOLT-WELDMENT

Part# 00188400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

00493600

2

WELDMENT, TRACTION IDLER ARM

Part# 00493600

OEM Warranty Repair Part for Ariens

Not available

00495051

3

BRACKET, MOUNT - IDLER ARM

Part# 00495051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00495167

4

WELDMENT, ATTACHMENT IDLER ARM

Part# 00495167 (Superseded to 04892167)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

00495251

5

BRACKET, MOUNT - BRAKE

Part# 00495251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00657051

6

WELDMENT, FRAME BRACKET

Part# 00657051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

01213100

7

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

01987100

8

ARM, CLUTCH - ATTACHMENT

Part# 01987100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

03880851

9

BAFFLE,ENGINE,SMALL BLOCK

Part# 03880851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03881000

10

COVER, COMPACT BELT

Part# 03881000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.95

03881600

11

FINGER, BELT

Part# 03881600 (Superseded to 04561800)

Note: (920402, 403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.95

03731800

11

BELT FINGER

Part# 03731800

Note: (920404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

04209700

12

SHEAVE, AUGER - COMPACT

Part# 04209700 (Superseded to 52006500)

Note: (920402, 403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $50.25

00493400

12

SHEAVE, ATTACHMENT DRIVE

Part# 00493400 (Superseded to 52006600)

Note: (920404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

05500026

13

BUSHING, POLYLINER-.50 SPLIT

Part# 05500026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.21

05500037

14

BSHG,SLV .265 X .625 X .375

Part# 05500037 (Superseded to 05500820)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500101

15

BSHG .75X1.125X.65

Part# 05500101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05500106

16

BSHG-SLV .385X.500X1.045

Part# 05500106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500107

17

BSHG-SLV .510X.751X.475

Part# 05500107

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500113

18

SPACER, SWING GATE

Part# 05500113

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05717600

19

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.31

05947300

20

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05957400

21

@BLT-HEX .31-18X1.75 GR5 YWZC

Part# 05957400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958500

22

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958600

23

BLT-HEX .38-24X2.0 YWZC

Part# 05958600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06200124

24

BLT-RDHDSQSHNK.31-18X1.13 G5YZ

Part# 06200124

OEM Warranty Repair Part for Ariens

Not available

06212200

25

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06307400

26

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400005

27

WSHR-WAVE .50X.75X.015 .13FRHT

Part# 06400005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435700

28

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06436200

29

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06437200

30

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06441400

31

WSHR-FL-STL.754X1.125X.062YWZC

Part# 06441400

Note: (920402, 404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500917

31

BSHG-SLV .75X1.12X1.062 NYL BK

Part# 05500917

Note: (920403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06441900

32

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06446300

33

WSHR-FL-STL .344X1.125X.135

Part# 06446300

OEM Warranty Repair Part for Ariens

Not available

06500011

34

@NUT-LK-CTR-JAM .31-18 YWZC

Part# 06500011

OEM Warranty Repair Part for Ariens

Not available

06529200

35

@NUT-HEX .31-18 YWZC

Part# 06529200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06542000

36

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543100

37

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06713500

38

PIN-HAIR INT .08X.18X1.18 YWZC

Part# 06713500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06944800

39

CLIP, SPRING

Part# 06944800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07053700

40

PIN-LOK .31X1.75

Part# 07053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07100812

41

TIRE/WHEEL, 15X5.00-6 K398A

Part# 07100812

Note: (920403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $90.50

07100811

41

TIRE/WHEEL, 13X4.10-6 K398A

Part# 07100811

Note: (920402, 404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.84

07100814

41

TIRE, 13" K398A

Part# 07100814

Note: (920402, 404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $31.03

07100815

41

TIRE, 15" K398A

Part# 07100815

Note: (920403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $42.99

07300525

42

IDLER,1.875" OD

Part# 07300525 (Superseded to 52007100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

07400034

43

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

07400104

44

SCR-TAP .25-20X.50 LGHWH TR YZ

Part# 07400104

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.76

07500102

45

PLUG, HOLE - 1.00" FLEXTEMP

Part# 07500102

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08200704

46

ENGINE,LCT STORMFORCE 208 120V

Part# 08200704

Note: (920402, 403)

OEM Warranty Repair Part for Ariens

Not available

08200711

46

ENGINE,LCT STORMFORCE 136 120V

Part# 08200711

Note: (920404)

OEM Warranty Repair Part for Ariens

Not available

08300036

47

SPRING, EXT. .043X.438X1.64

Part# 08300036

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

08300104

48

SPRING-EXT .437 X .438 X 2.64

Part# 08300104

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08300326

49

SG-TORS .075 X .955

Part# 08300326

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08300528

50

SPRING, EXTENSION

Part# 08300528 (Superseded to 08300538)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

09735700

51

TRACTION SHEAVE HALF

Part# 09735700 (Superseded to 52006600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

52100200

52

PLATE, SWING - ASSEMBLY

Part# 52100200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

52000500

53

BRAKE ARM W/PAD

Part# 52000500

Note: (Includes Items 57 and 58)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

02457400

54

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

07200603

55

V-BELT, 3L-WRAPPED

Part# 07200603

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.60

07200513

56

V-BELT, HA-RAW EDGE

Part# 07200513 (Superseded to 07200725)

Note: (920402, 403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

07238500

56

V-BELT, HA-RAW EDGE

Part# 07238500

Note: (920404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

06800028

57

RVT-POP .187 YZ

Part# 06800028

Note: (2 Included with Item 53)

OEM Warranty Repair Part for Ariens

Not available

00180500

58

PAD, BRAKE

Part# 00180500

Note: (Included with Item 53)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06308800

59

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21547400

60

PLUG, SPARK

Part# 21547400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

07500112

61

CAP, FUEL TANK BLACK

Part# 07500112

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

07500111

62

KEY, PUSH/PULL LCT (2/PACKAGE)

Part# 07500111

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
