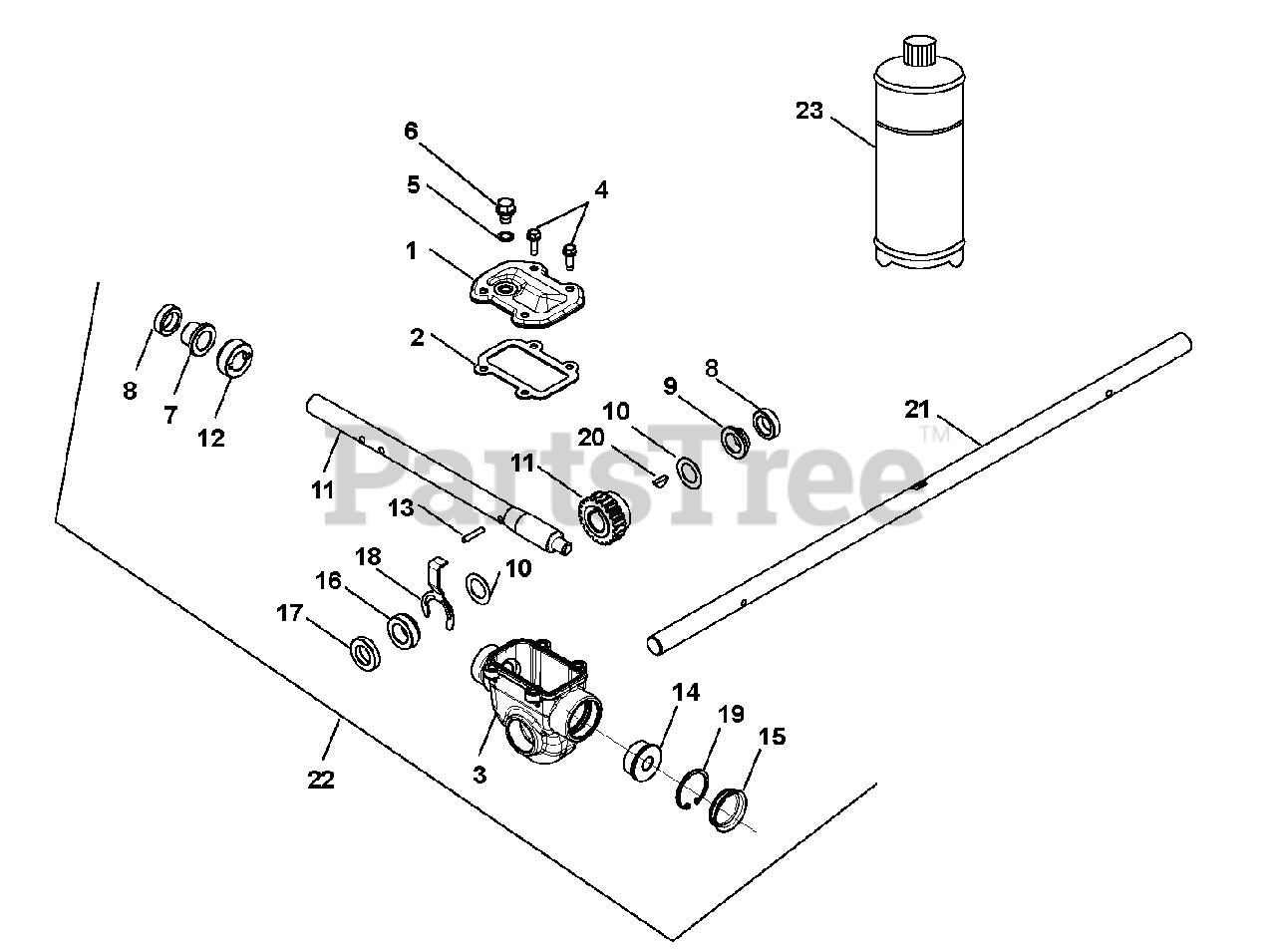

920404 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 136cc engine (SN: 035000 & Above) > Parts Diagrams (7) > Gear Case and Impeller

  • Title
04280251

1

COVER, TOP - COMPACT

Part# 04280251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

04282400

2

GASKET, TOP - COMPACT GEARCASE

Part# 04282400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.18

04304600

3

GEARCASE, COMPACT ALUMINUM

Part# 04304600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.98

07414200

4

SCR-TAP .25-20X.75 HWH TR YWZ

Part# 07414200 (Superseded to 07400111)

OEM Warranty Repair Part for Ariens

Not available

06400920

5

WSHR-BND-SEAL .38X.75X.11 GALV

Part# 06400920

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.35

07400110

6

@SCR-ROLOK .38-16X.50 HWH YWZC

Part# 07400110

OEM Warranty Repair Part for Ariens

Not available

05501020

7

BSHG-FLG .755X.878X.75X1.25

Part# 05501020

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

05600501

8

SEAL-OIL .748X1.125X.312 TB2-H

Part# 05600501 (Superseded to 05600509)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05501106

9

BSHG-FLG .755X.878X.424X1.25

Part# 05501106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06400912

10

WSHR-FL-STL .760X1.225X.032 YZ

Part# 06400912

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.42

52003400

11

SHAFT AND WORM GEAR ASSEMBLY

Part# 52003400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

04277000

12

THRUST COLLAR, .75" ID SLIPFIT

Part# 04277000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05800207

13

PIN-STR .188X1.00 6150

Part# 05800207

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05501108

14

BSHG-FLG .503X1.303X.62X1.465

Part# 05501108

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

04302800

15

COVER, GEAR CASE 1.50"

Part# 04302800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05501107

16

BSHG-FLG COMPACT, RIGHT

Part# 05501107

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

05600440

17

SEAL-OIL .748X1.300X.250 TB2-H

Part# 05600440 (Superseded to 05600508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

04323600

18

BUSHING RETAINER, COMPACT

Part# 04323600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05700212

19

RG-RTNG-INT 1.500X.050

Part# 05700212

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06609300

20

KEY-WDRF .19X.63 HRD #61

Part# 06609300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.03

04143400

21

SHAFT, RAKE-28" (.750 DIA)

Part# 04143400

Note: (920403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

00263000

SHAFT, RAKE - 24" (.750 DIA)

Part# 00263000

Note: (920402, 404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

52003600

22

GEAR CASE, 24" ALUM SM TOP-LD

Part# 52003600

Note: (Includes Items 1 - 21) (920402, 404)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

52004000

GEAR CASE, 28" ALUM SM TOP-LD

Part# 52004000

Note: (Includes Items 1 - 21) (920403)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

00068800

23

ARIENS L3 LUBE, 8 OZ BOTTLE

Part# 00068800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71
