920405 - Ariens Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

Sno-Tek 24" Snow Blower, LCT StormForce 208cc engine

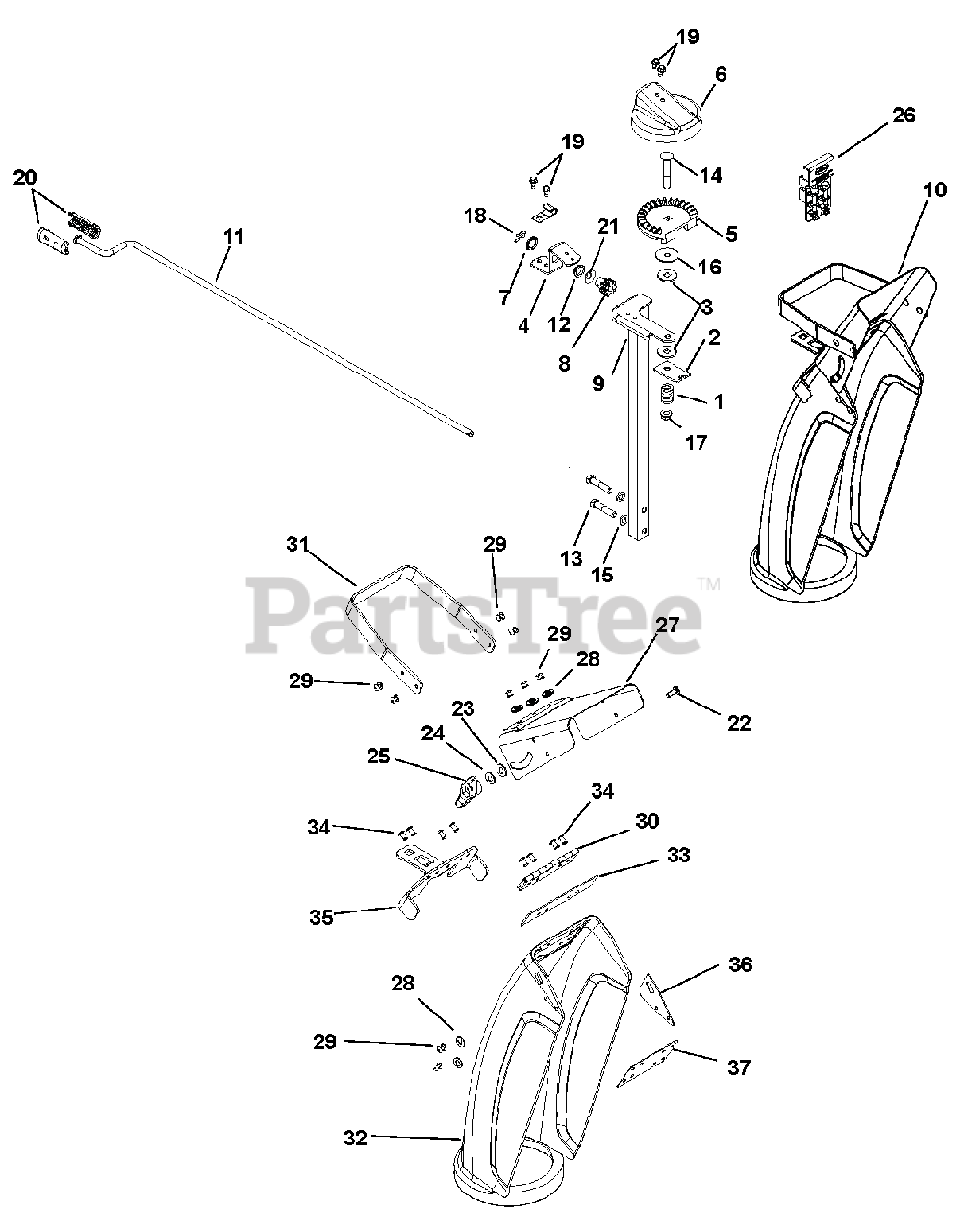

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

2

Ariens 00398000

PLATE, FRICTION

$7.99

$

In Stock, Qty 7

0

3

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

4

Ariens 01972451

BRACKET, PINION GEAR
(Superseded to 01972400)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 9

0

6

Ariens 03223000

GEAR COVER

$13.99

$

In Stock, only 2 left!

0

7

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 5

0

8

Ariens 52000100

PINION GEAR W/BRACKET

Note: (Includes Items 4, 7, 12 and 21)

$35.99

$

In Stock, only 2 left!

0

9

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$42.99

$

Usually ships in 4-12 days

0

10

Ariens 52000900

CHUTE, DISCHARGE W/CAP & DECAL

Note: (Includes Items 27 thru 37)

$

$

Not available

11

Ariens 04338000

ROD, CHUTE CRANK, COMP&SNOTEK

$54.99

$

Usually ships in 4-12 days

0

12

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 7

0

13

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

14

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

15

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

16

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

19

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07500129

KNOB, CHUTE CRANK - SNAP BLK
(Superseded to 07500510)

$3.99

$

In Stock, Qty 5

0

21

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 19

0

22

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 10

0

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 8

0

26

Ariens 52004500

HOLDER W SMALL SHEAR BOLT /NUT

$

$

Not available

27

Ariens 00174351

CAP, SMALL DEFLECTOR-MANUAL

$

$

Not available

28

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

30

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

31

Ariens 03212151

DEFLECTOR HANDLE

$

$

Not available

32

Ariens 03861300

CHUTE, PLASTIC DISCHARGE

$

$

Not available

33

Ariens 00628500

CAP SEAL 5.25

$4.49

$

Usually ships in 4-12 days

0

34

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

35

Ariens 03884751

CHUTE MOUNT BRACKET

$28.99

$

Usually ships in 4-12 days

0

36

Ariens 03884851

BACKING PLATE, CHUTE CAP

$13.99

$

Usually ships in 4-12 days

0

37

Ariens 03884651

PLATE, BACKING - PLASTIC CHUTE

$29.99

$

Usually ships in 4-12 days
