920406 - Ariens Sno-Tek 20" Snow Blower, Ariens AX 136cc engine (SN: 000101 & Above) Discharge Chute Parts Diagram

Sno-Tek 20" Snow Blower, Ariens AX 136cc engine

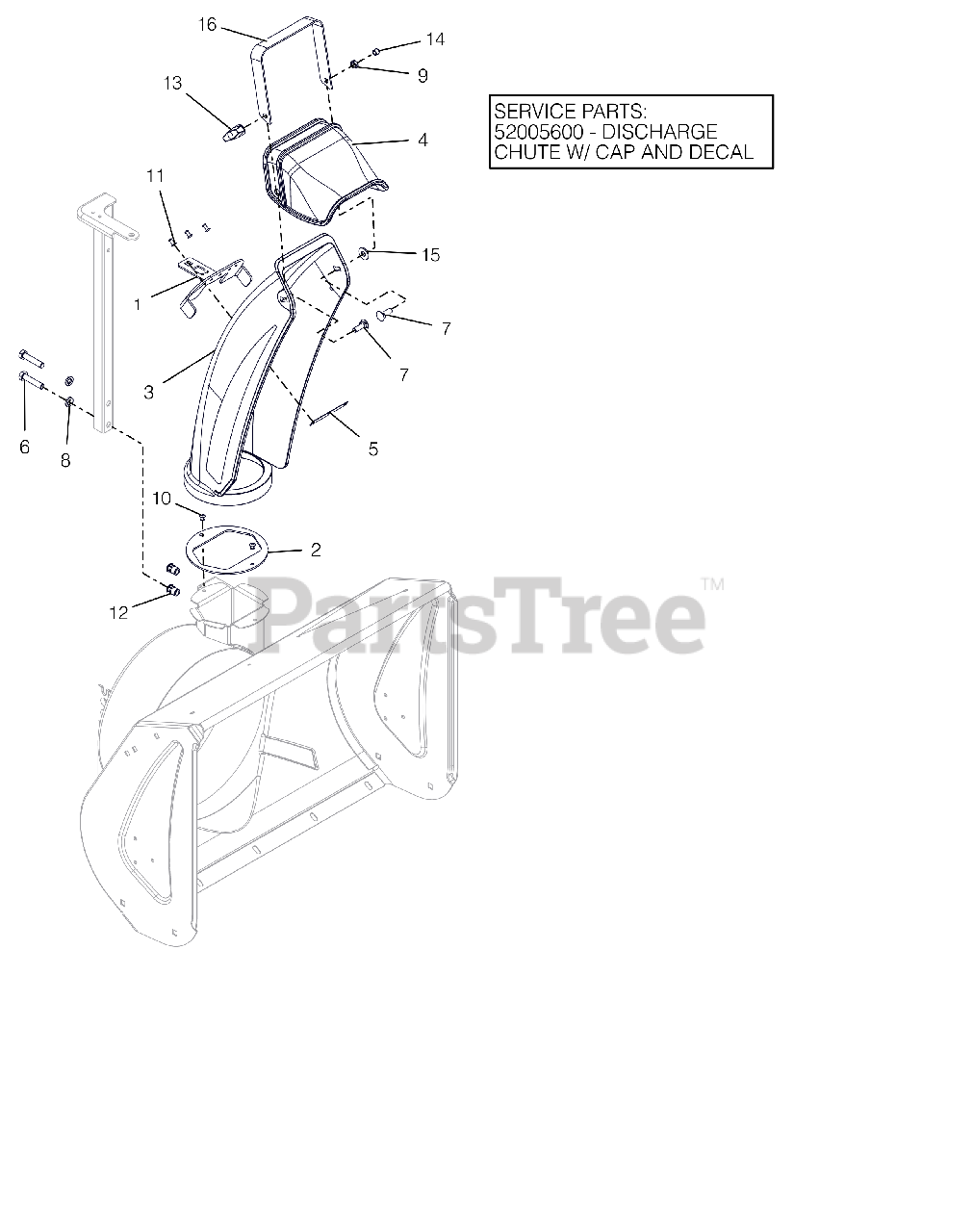

Discharge Chute Parts Diagram

  • Title

1

Ariens 03884751

CHUTE MOUNT BRACKET

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 03889400

BAFFLE, COMPACT DISCHARGE

$17.99

$

Usually ships in 4-12 days

0

3

Ariens 04428600

CHUTE, PLASTIC DISCHARGE LONG

$56.99

$

Usually ships in 4-12 days

0

4

Ariens 52008100

CAP,PLASTIC - SNOTEK (W/DECAL)

$33.99

$

Usually ships in 4-12 days

0

5

Ariens 04440151

PLATE,CHUTE MOUNT BACKING

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 9

0

7

Ariens 06200212

BLT,RNHDRECSHNK .31-18X1.00

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 10

0

9

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 5

0

10

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

11

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

12

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 07500228

KNOB, WING .31-18 UNC

$6.99

$

Usually ships in 4-12 days

0

14

Ariens 07500230

CAP, END .281X.313

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 04443351

HANDLE, MANUAL CHUTE CAP

$35.99

$

Usually ships in 4-12 days

0

17

Ariens 52005600

CHUTE, MANUAL DISCHARGE W/CAP

Note: SERVICE PART

$156.99

$

In Stock, only 1 left!

0
