920406 - Ariens Sno-Tek 20" Snow Blower, Ariens AX 136cc engine (SN: 000101 & Above) Housing - 20" Parts Diagram

Sno-Tek 20" Snow Blower, Ariens AX 136cc engine

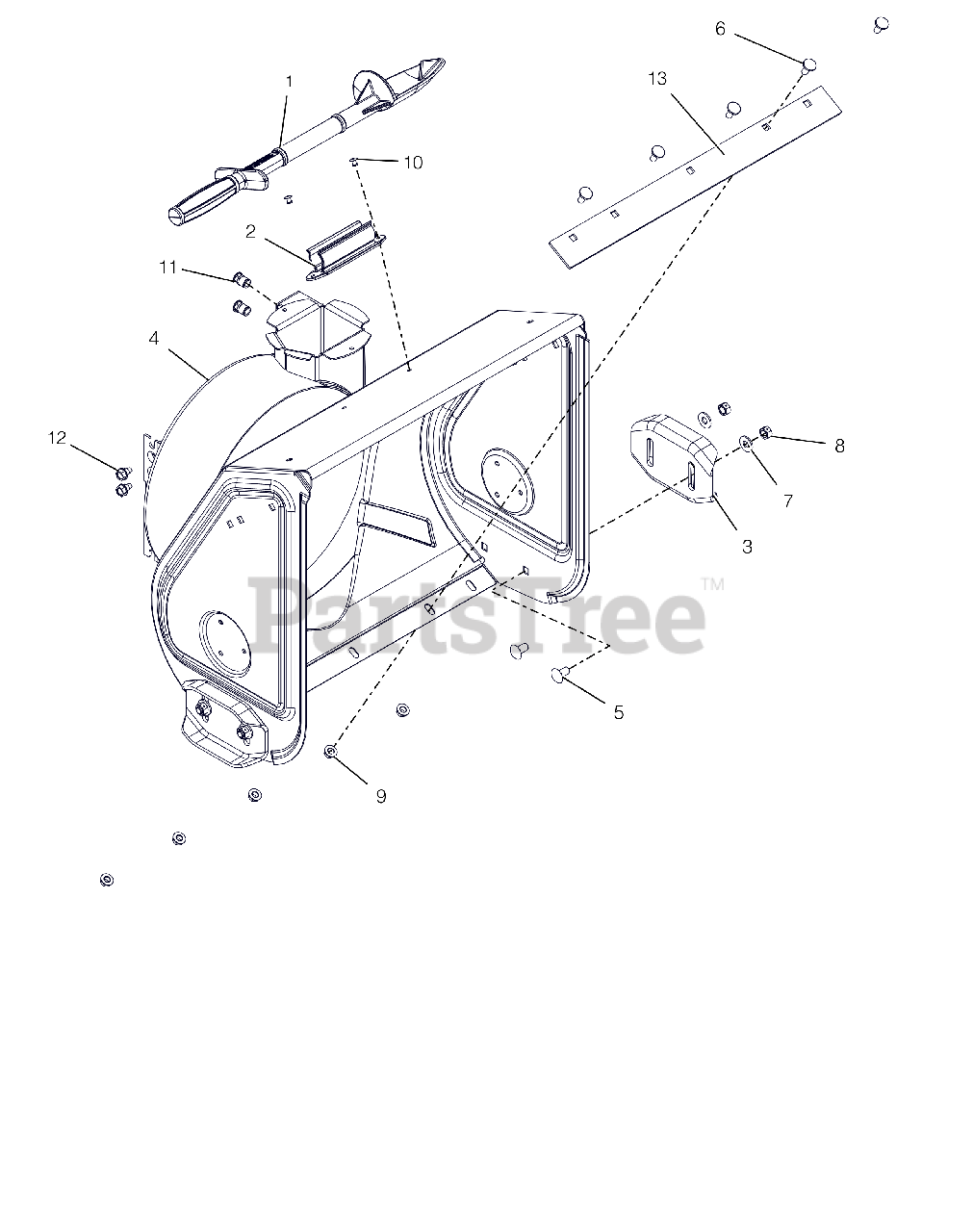

Housing - 20" Parts Diagram

  • Title

1

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

2

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

3

Ariens 02483851

SKID SHOE, REVERSIBLE - BLACK

$19.99

$

In Stock, Qty 5

0

4

Ariens 52008500

HOUSING, BLOWER-20" HB SERV BLK

$

$

Currently unavailable

5

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

11

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 04743451

SCRAPER BLADE, 20"

$

$

Currently unavailable
