9210 - Lawn-Boy Loafer Rear-Engine Riding Mower (SN: 900000001 - 999999999) (1959) MODEL 9210 LOAFER PARTS LIST Parts Diagram

Loafer Rear-Engine Riding Mower

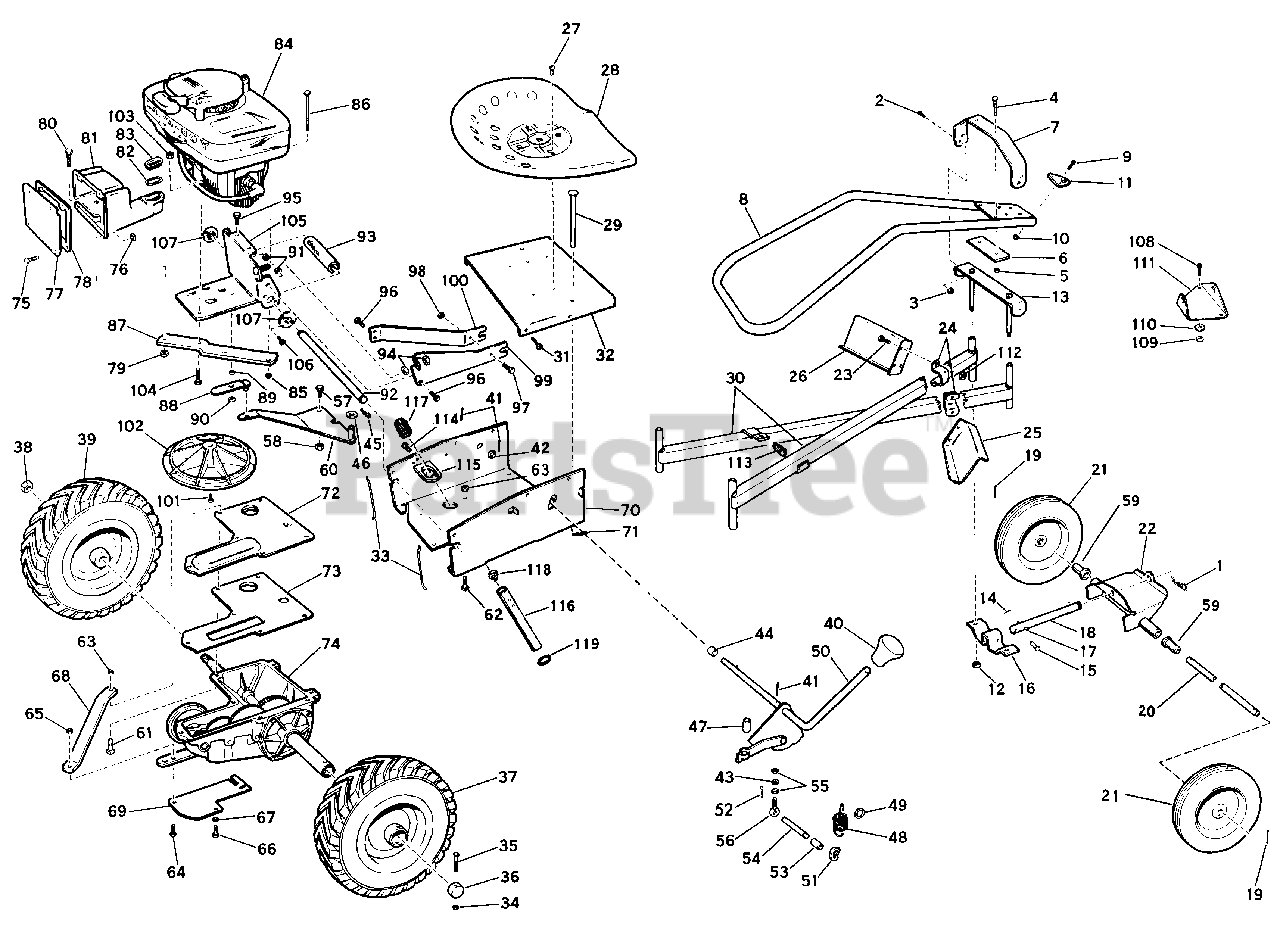

MODEL 9210 LOAFER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 603221

Hair Pin-Transverse Pivot Rod

$

$

Not available

2

Lawn-Boy 602109

Bolt-Handle

$

$

Currently unavailable

3

Lawn-Boy 602201

Nut-Nylok

$

$

Not available

4

Lawn-Boy 603325

Screw

$

$

Currently unavailable

5

Lawn-Boy 602830

Nut-Nylok

$

$

Not available

6

Lawn-Boy 603532

Clamp-Handle Pivot Bracket

$

$

Not available

7

Lawn-Boy 603531

Bracket-Handle Pivot

$

$

Not available

8

Lawn-Boy 677707

Handle, Tube and Tongue Bracket Assembly

$

$

Not available

9

Lawn-Boy 603105

Screw-Machine (Tongue)

$

$

Not available

10

Lawn-Boy 602201

Nut-Nylok (Tongue)

$

$

Not available

11

Lawn-Boy 603304

Tongue

$

$

Not available

12

Lawn-Boy 602830

Nut-Nylok

$

$

Not available

13

Lawn-Boy 677592

Top Pivot Bracket and Pin Assy.

$

$

Not available

14

Lawn-Boy 306372

Pin-Cotter (Transverse Pivot Rod Pin)

$

$

Currently unavailable

15

Lawn-Boy 603317

Pin-Transverse Pivot Rod

$

$

Not available

16

Lawn-Boy 603222

Pivot Bracket-Frame, Bottom

$

$

Currently unavailable

17

Lawn-Boy 603394

Groove Pin

$

$

Not available

18

Lawn-Boy 603225

Rod-Transverse Pivot

$

$

Not available

19

Lawn-Boy 603501

Pin-Spiral

$

$

Not available

20

Lawn-Boy 603499

Axle-Wheel Attachment

$

$

Not available

21

Lawn-Boy 677693

Wheel and Tire Assy., 8 x 1.75

$

$

Not available

22

Lawn-Boy 677684

Axle and Bracket Assembly (Front Wheel Attachment)

$

$

Not available

23

Lawn-Boy 603250

Screw-Foot Bracket

$

$

Not available

24

Lawn-Boy 603535

Bracket-Foot Pedal Clamp

$

$

Not available

25

Lawn-Boy 677624

Foot Pedal and Plate Assy., Right

$

$

Not available

26

Lawn-Boy 677625

Foot Pedal and Plate Assembly, Left

$

$

Not available

27

Lawn-Boy 603362

Screw-Seat to Cover

$

$

Currently unavailable

28

Lawn-Boy 677710

Seat Assembly

$

$

Currently unavailable

29

Lawn-Boy 603262

Pin-Rear Pivot, Frame

$

$

Not available

30

Lawn-Boy 677689

Tube and Pivot Assembly

$

$

Not available

31

Lawn-Boy 603279

Screw-Thread Cutting (Shroud to Cover)

$

$

Not available

32

Lawn-Boy 603206

Cover-Shroud

$

$

Currently unavailable

33

Lawn-Boy 603361

Spring-Engine Mounting Shaft

$

$

Not available

34

Lawn-Boy 603392

Nut-Nylok, Wheel Bolt, Right

$

$

Not available

35

Lawn-Boy 603244

Screw-Wheel, Right

$

$

Currently unavailable

36

Lawn-Boy 603275

Plug-Wheel Hub

$

$

Not available

37

Lawn-Boy 677588

Wheel and Tire Assy., Right

$

$

Not available

38

Lawn-Boy 603273

Nut-Nylok, Left Wheel

$

$

Not available

39

Lawn-Boy 677584

Wheel and Tire Assy., Left

$

$

Not available

40

Lawn-Boy 603280

Knob-Speed Control

$

$

Not available

41

Lawn-Boy 603036

Pin-Cotter, Speed Control Rod

$

$

Not available

42

Lawn-Boy 303259

Washer-Speed Control

$1.99

$

In Stock, Qty 8

0

43

Lawn-Boy 120177

Lockwasher-Shakeproof

$3.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 603377

Roller-Speed Control

$

$

Currently unavailable

45

Lawn-Boy 603019

Hair Pin-Bell Crank Pin
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

46

Lawn-Boy 304671

Washer-Bell Crank Pin

$

$

Not available

47

Lawn-Boy 603344

Sleeve-Rubber, Bell Crank

$

$

Not available

48

Lawn-Boy 603260

Spring-Clutch

$

$

Currently unavailable

49

Lawn-Boy 303259

Washer-Clutch Spring

$1.99

$

In Stock, Qty 8

0

50

Lawn-Boy 677570

Speed Control Rod and Lever Assembly

$3.36

$

Usually ships in 3-6 days

0

51

Lawn-Boy 603207

Clip-Clutch Spring

$

$

Not available

52

Lawn-Boy 603019

Hair Pin-Ramp Pin
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

53

Lawn-Boy 603214

Roller-Ramp Pin

$

$

Not available

54

Lawn-Boy 603213

Pin-Ramp

$

$

Not available

55

Lawn-Boy 304632

Nut-Eye Bolt

$

$

Currently unavailable

56

Lawn-Boy 603350

Bolt-Eye, Ramp Pin Adjustment

$

$

Currently unavailable

57

Lawn-Boy 603349

Bolt-Bell Crank

$

$

Not available

58

Lawn-Boy 602830

Nut-Nylok (Bell Crank Shoulder Bolt)

$

$

Not available

59

Lawn-Boy 602749

Bearing-Wheel, Nylon

$

$

Currently unavailable

60

Lawn-Boy 677572

Bell Crank and Pin Assembly

$

$

Not available

61

Lawn-Boy 603367

Screw-Shroud

$

$

Currently unavailable

62

Lawn-Boy 602941

Screw-Shroud

$

$

Not available

63

Lawn-Boy 602830

Nut-Nylok, Shroud

$

$

Not available

64

Lawn-Boy 602693

Screw-Brace, Bar

$

$

Not available

65

Lawn-Boy 602830

Nut-Nylok, Guard to Drawbar

$

$

Not available

66

Lawn-Boy 603010

Screw-Guard to Housing

$

$

Currently unavailable

67

Lawn-Boy 306325

Lockwasher-Guard to Housing Screw

$

$

Not available

68

Lawn-Boy 603254

Brace-Drawbar

$

$

Not available

69

Lawn-Boy 603355

Guard-Roller

$

$

Not available

70

Lawn-Boy 603507

Shroud-Frame

$

$

Currently unavailable

71

Lawn-Boy 603019

Hair Pin-Rear Pivot Frame
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

72

Lawn-Boy 603506

Plate-Transmission

$

$

Not available

73

Lawn-Boy 603505

Gasket-Transmission Plate

$

$

Not available

74

Transmission Assembly

$

$

Not available

75

Lawn-Boy 603299

Screw-Muffler

$

$

Not available

76

Lawn-Boy 603291

Nut-Muffler Screw

$

$

Not available

77

Lawn-Boy 603286

Cover-Muffler

$

$

Not available

78

Lawn-Boy 603354

Gasket-Muffler

$

$

Not available

79

Lawn-Boy 603259

Nut-Hug Lock

$

$

Currently unavailable

80

Lawn-Boy 603257

Screw-Muffler Clamp

$

$

Not available

81

Lawn-Boy 603284

Muffler

$

$

Not available

82

Lawn-Boy 602644

Gasket-Exhaust

$

$

Not available

83

Lawn-Boy 602717

Sleeve-Exhaust Gasket

$2.99

$

In Stock, Qty 20+

0

84

Lawn-Boy 677578

Engine-Model C-50

$

$

Not available

85

Lawn-Boy 602315

Nut-Muffler Clamp to Cylinder

$4.49

$

In Stock, only 2 left!

0

86

Lawn-Boy 603151

Screw-Muffler Clamp to Cyl.

$

$

Not available

87

Lawn-Boy 603285

Clamp-Muffler

$

$

Not available

88

Lawn-Boy 677610

Bell Crank Link and Pin Assembly

$

$

Not available

89

Lawn-Boy 603337

Sleeve-Bell Crank Link

$

$

Not available

90

Lawn-Boy 120196

Washer-Plain

$

$

Not available

91

Lawn-Boy 602830

Nut-Nylok

$

$

Not available

92

Lawn-Boy 603258

Shaft-Engine Mounting Plate

$

$

Currently unavailable

93

Lawn-Boy 603302

Oiler-Shaft

$

$

Not available

94

Lawn-Boy 304632

Nut-Clutch Adjusting

$

$

Currently unavailable

95

Lawn-Boy 603279

Screw-Thread Cutting, Engine Mounting Plate to Arm. Plate

$

$

Not available

96

Lawn-Boy 603349

Bolt-Clutch Arm and Clutch Arm Brace

$

$

Not available

97

Lawn-Boy 603105

Screw-Machine Hex Hd.

$

$

Not available

98

Lawn-Boy 602201

Nut-Nylok

$

$

Not available

99

Lawn-Boy 603208

Arm-Clutch

$

$

Currently unavailable

100

Lawn-Boy 603338

Brace-Clutch Arm

$

$

Not available

101

Lawn-Boy 603240

Screw-Cap Disc

$

$

Not available

102

Lawn-Boy 603188

Disc-Drive

$

$

Not available

103

Lawn-Boy 602830

Nut-Nylok, Engine Mtg. Screw

$

$

Not available

104

Lawn-Boy 603300

Screw-Engine Mounting

$

$

Not available

105

Lawn-Boy 677644

Engine Mounting Plate, Adjusting Screw and Bearing Assembly

$

$

Not available

106

Lawn-Boy 602012

Screw-Self Tapping

$

$

Not available

107

Lawn-Boy 603283

Bearing-Engine Mounting

$

$

Currently unavailable

Lawn-Boy 677643

Mower Attachment Assembly

$

$

Not available

108

Lawn-Boy 603389

Screw-Mower Mounting Plate

$

$

Currently unavailable

109

Lawn-Boy 602201

Nut-Mower Mounting Plate

$

$

Not available

110

Lawn-Boy 602945

Washer

$

$

Not available

111

Lawn-Boy 603269

Plate-Mower Mounting

$

$

Not available

112

Lawn-Boy 602830

Nut-Foot Pedal Screw

$

$

Not available

113

Lawn-Boy 603260

Spring-Tube and Pivot Assy.

$

$

Currently unavailable

114

Lawn-Boy 602012

Screw-Self Tapping

$

$

Not available

115

Lawn-Boy 603502

Bracket-Oil Filler

$

$

Not available

116

Lawn-Boy 603504

Tube-Oil Filler

$

$

Not available

117

Lawn-Boy 603508

Cap Tube-Oil Filler

$

$

Not available

118

Lawn-Boy 603521

Spring-Oil Filler

$

$

Not available

119

Lawn-Boy 603509

Seal, Tube-Oil Filler

$

$

Currently unavailable
