921001 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

24" Snow Blower, 8hp Tecumseh

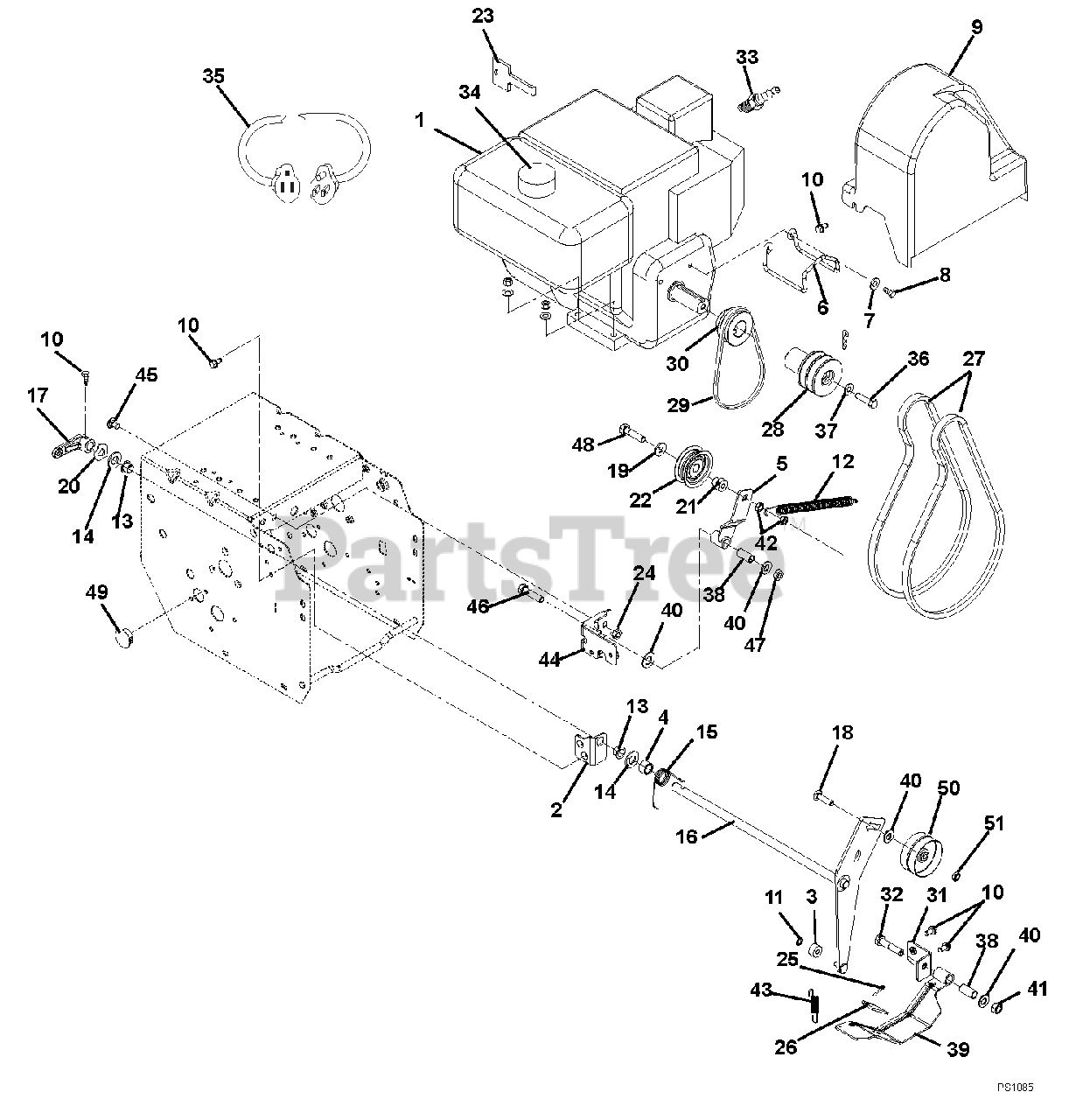

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 08200229

ENGINE, 8HP TEC L-HD 120V

Note: (001)

$

$

Not available

Ariens 08200230

ENGINE, 10HP TEC L-HD 120V 18W

Note: (002)

$

$

Not available

Ariens 08200231

ENGINE, 11HP TEC L-HD 120V 3/5

Note: (003)

$

$

Not available

Ariens 08200038

ENGINE,9.25HP TEC LH318SA 120V

Note: (004)

$

$

Not available

Ariens 08200233

ENGINE, 8HP TEC OHV 220V

Note: (300)

$

$

Not available

Ariens 08200234

ENGINE, 10HP TECH OHV 220V 18W

$

$

Not available

2

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$14.99

$

Usually ships in 4-12 days

0

3

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$3.49

$

In Stock, only 2 left!

0

4

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.99

$

In Stock, Qty 20+

0

5

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$20.99

$

In Stock, only 1 left!

0

6

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$20.99

$

In Stock, only 2 left!

0

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 00659600

PLZ SEE SERVICE LETTER #L-2166

$

$

Not available

10

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$1.49

$

In Stock, Qty 20+

0

12

Ariens 08300538

SPRING, SWIVEL HOOK EXTENSION

$15.99

$

In Stock, Qty 16

0

13

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$1.49

$

In Stock, Qty 15

0

15

Ariens 08300326

SG-TORS .075 X .955

$5.49

$

In Stock, only 1 left!

0

16

Ariens 02956700

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

17

Ariens 01987100

ARM, CLUTCH - ATTACHMENT
(Superseded to 09739301)

$8.49

$

Usually ships in 4-12 days

0

18

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$4.99

$

In Stock, Qty 6

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$3.49

$

In Stock, Qty 6

0

21

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$4.99

$

In Stock, only 2 left!

0

22

Ariens 02457400

IDLER
(Superseded to 52007000)

$47.99

$

In Stock, Qty 14

0

23

Ariens 07532000

KEY, PUSH/PULL - TECUMSEH
(Superseded to 07500108)

$9.99

$

In Stock, Qty 8

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (Included with item 39)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 00180500

PAD, BRAKE

Note: (Included with item 39)

$11.99

$

In Stock, only 3 left!

0

27

Ariens 07200431

V-BELT, HA-RAW EDGE (SET)

$63.99

$

In Stock, Qty 7

0

28

Ariens 02954300

SHEAVE, ATTACHMENT 2 GROOVE
(Superseded to 04957500)

$31.99

$

In Stock, only 2 left!

0

29

Ariens 07200111

V-BELT, 3L-WRAPPED

$25.99

$

In Stock, Qty 20+

0

30

Ariens 00659400

SHEAVE, DRIVE

$31.99

$

Usually ships in 4-12 days

0

31

Ariens 00657551

BRACKET, BRAKE MOUNT

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

33

Ariens 21533500

PLUG, SPARK

Note: (300, 301)

$3.99

$

Usually ships in 4-12 days

0

Ariens 21533400

PLUG, SPARK

Note: (001, 002, 003, 004)

$8.49

$

In Stock, Qty 20+

0

34

Ariens 07531800

CAP, FUEL - TECUMSEH

$21.99

$

In Stock, only 2 left!

0

35

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (001, 002, 003, 004)

$43.99

$

Usually ships in 4-12 days

0

36

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$5.99

$

In Stock, only 2 left!

0

37

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

38

Ariens 05500106

BSHG-SLV .385X.500X1.045

$2.49

$

In Stock, Qty 20+

0

39

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes items 25 and 26)

$25.99

$

In Stock, only 2 left!

0

40

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

41

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.99

$

In Stock, Qty 11

0

43

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$3.49

$

In Stock, Qty 12

0

44

Ariens 00657051

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

45

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.49

$

In Stock, Qty 20+

0

46

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 11

0

47

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.99

$

In Stock, Qty 20+

0

48

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

49

Ariens 07500023

PLUG, HOLE - .875" NYLON

$2.99

$

Usually ships in 4-12 days

0

50

Ariens 07314600

IDLER-FLAT 2.75X.38 PAINTED
(Superseded to 07333500)

$27.99

$

In Stock, only 2 left!

0

51

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0
