921003 (ST 1130 DLE) - Ariens 30" Snow Blower, 11hp Tecumseh (SN: 000101 & Above) Electrical Parts Diagram

30" Snow Blower, 11hp Tecumseh

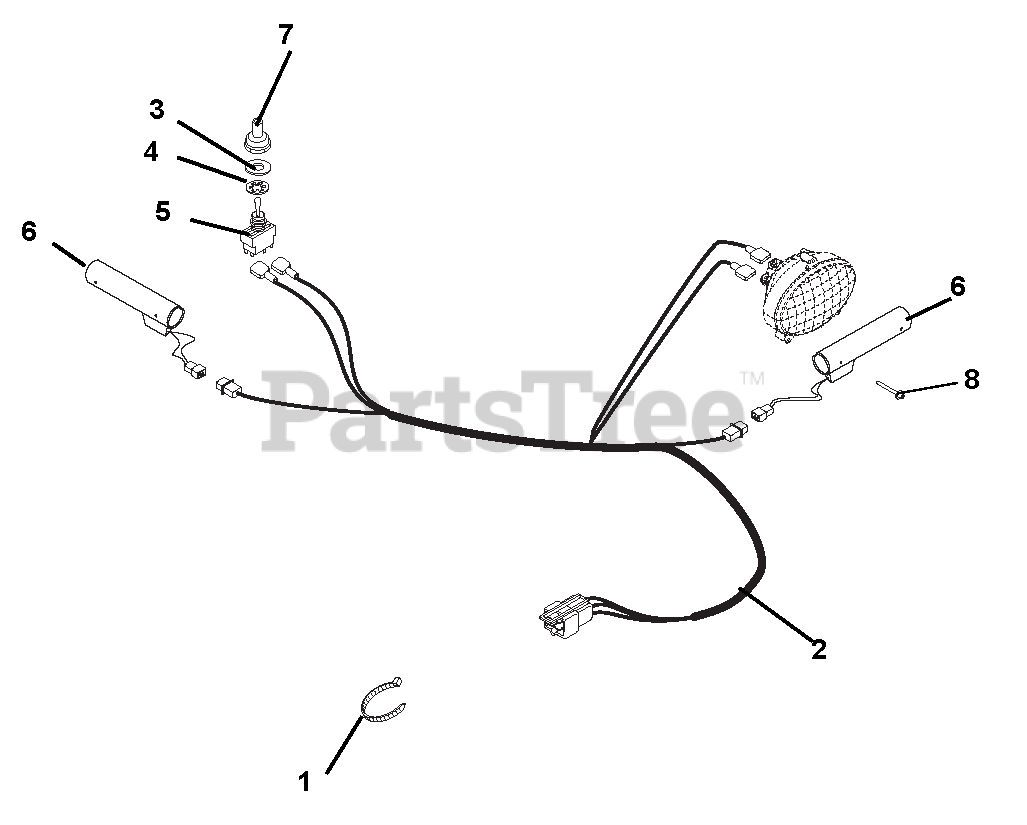

Electrical Parts Diagram

  • Title

1

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

2

Ariens 00432300

HARNESS, WIRE-LIGHT HANDWARMER
(Superseded to 00432301)

$74.99

$

Usually ships in 4-12 days

0

3

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

4

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

$2.49

$

In Stock, only 2 left!

0

5

Ariens 02485700

SWITCH, ON/OFF

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (Recommend Fast Drying Epoxy for Installation)

$49.99

$

In Stock, only 1 left!

0

7

Ariens 09207600

BOOT, SWITCH

Note: (Optional)

$65.99

$

Usually ships in 4-12 days

0

8

Ariens 06816500

RVT-POP .125 X .313 AL BLACK
(Superseded to 06800038)

$1.99

$

Usually ships in 4-12 days

0
