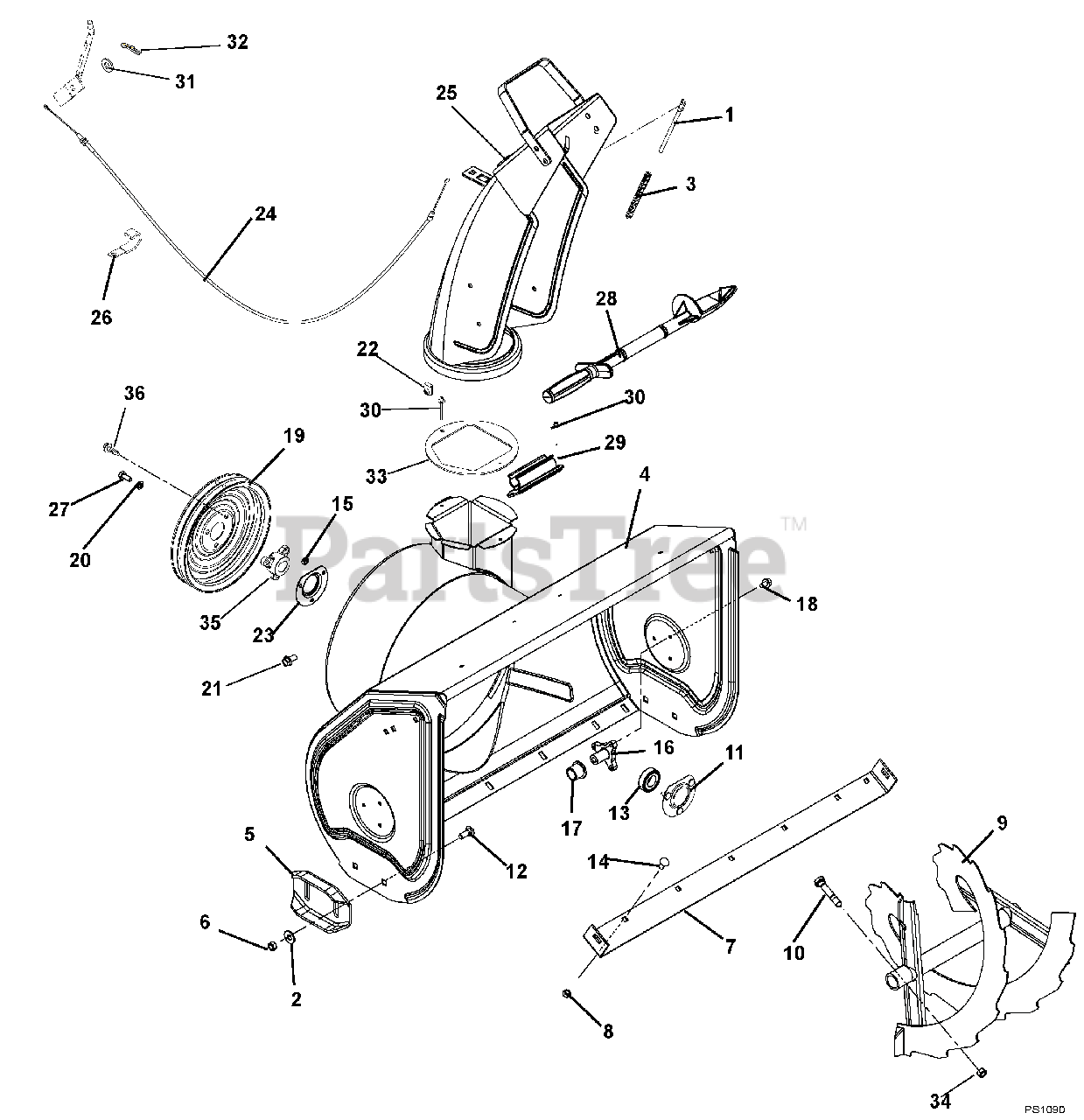

921005 (ST 927 LE) - Ariens 27" Snow Blower, 9hp Tecumseh (SN: 000101 & Above) Chute And Auger Parts Diagram

27" Snow Blower, 9hp Tecumseh

Chute And Auger Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$15.99

$

In Stock, only 3 left!

0

2

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$9.99

$

In Stock, only 1 left!

0

4

Ariens 52100600

HOUSING, BLOWER - 24" W/DECAL
(Superseded to 52101700)

Note: (921004, 007, 300, 302)

$395.99

$

Usually ships in 4-12 days

0

4

Ariens 52100700

HOUSING, BLOWER - 27" W/DECAL
(Superseded to 52101800)

Note: (921005, 008, 301, 303)

$380.99

$

Usually ships in 4-12 days

0

4

Ariens 52100800

HOUSING, BLOWER - 30" W/DECAL
(Superseded to 52101900)

Note: (921006, 009)

$380.99

$

Usually ships in 4-12 days

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

In Stock, Qty 9

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00658559

BLADE, SCRAPER-24"

Note: (921004, 007, 300, 302)

$36.99

$

In Stock, Qty 6

0

7

Ariens 00660659

BLADE, SCRAPER-27"

Note: (921005, 008, 301, 303)

$48.99

$

In Stock, only 1 left!

0

7

Ariens 00661159

BLADE, SCRAPER-30"

Note: (921006, 009)

$47.99

$

In Stock, Qty 17

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (004, 005, 007, 008, 300, 301, 302, 303)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (921006, 009)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 00658951

RAKE, LEFT HAND-24" DELUXE

Note: (14" O.D.) (921004, 007, 300, 302)

$

$

Not available

9

Ariens 00659051

RAKE, RIGHT HAND-24" DELUXE
(Superseded to 52102700)

Note: (14" O.D.) (921004, 007, 300, 302)

$96.99

$

Usually ships in 4-12 days

0

9

Ariens 00485951

RAKE, LEFT HAND-27" DELUXE
(Superseded to 52102800)

Note: (14" O.D.) (921005, 008, 301, 303)

$137.99

$

In Stock, only 1 left!

0

9

Ariens 00486051

RAKE, RIGHT HAND-27" DELUXE
(Superseded to 52102900)

Note: (14" O.D.) (921005, 008, 301, 303)

$120.99

$

Usually ships in 4-12 days

0

9

Ariens 00662351

RAKE, LEFT HAND-30" DELUXE
(Superseded to 52103000)

Note: (14" O.D.) (921006, 009)

$122.99

$

In Stock, only 3 left!

0

9

Ariens 00662451

RAKE, RIGHT HAND-30" DELUXE
(Superseded to 52103100)

Note: (14" O.D.) (921006, 009)

$112.99

$

In Stock, only 4 left!

0

10

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 34)

$3.49

$

In Stock, Qty 6

0

11

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 3 left!

0

12

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

14

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (921004, 005, 007, 008, 300, 301, 302, 303)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

Note: (921006, 009)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 00659200

SUPPORT, RAKE BUSHING

$21.99

$

In Stock, Qty 12

0

17

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 11

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$40.99

$

In Stock, only 2 left!

0

20

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

21

Ariens 07400030

SCR-TAP.31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

23

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

24

Ariens 06900018

CABLE, DEFLECTOR
(Superseded to 06900406)

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$50.99

$

In Stock, only 2 left!

0

25

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$162.99

$

Usually ships in 4-12 days

0

25

Ariens 52100500

CHUTE, DISCHARGE W/CAP & DECAL

Note: (921005, 300)

$193.99

$

Usually ships in 4-12 days

0

26

Ariens 06909400

J-CLAMP

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$3.99

$

In Stock, only 2 left!

0

27

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

28

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

29

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

30

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$0.99

$

In Stock, only 3 left!

0

32

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (921004, 006, 007, 008, 009, 301, 302, 303)

$0.99

$

In Stock, Qty 5

0

33

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 00268701

PULLEY HUB, BOLT-ON D-BORE .87
(Superseded to 00268703)

$9.99

$

In Stock, only 3 left!

0

36

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+
