921010 (ST 27 LE) - Ariens 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Auger And Chute Parts Diagram

27" Snow Blower, Briggs & Stratton

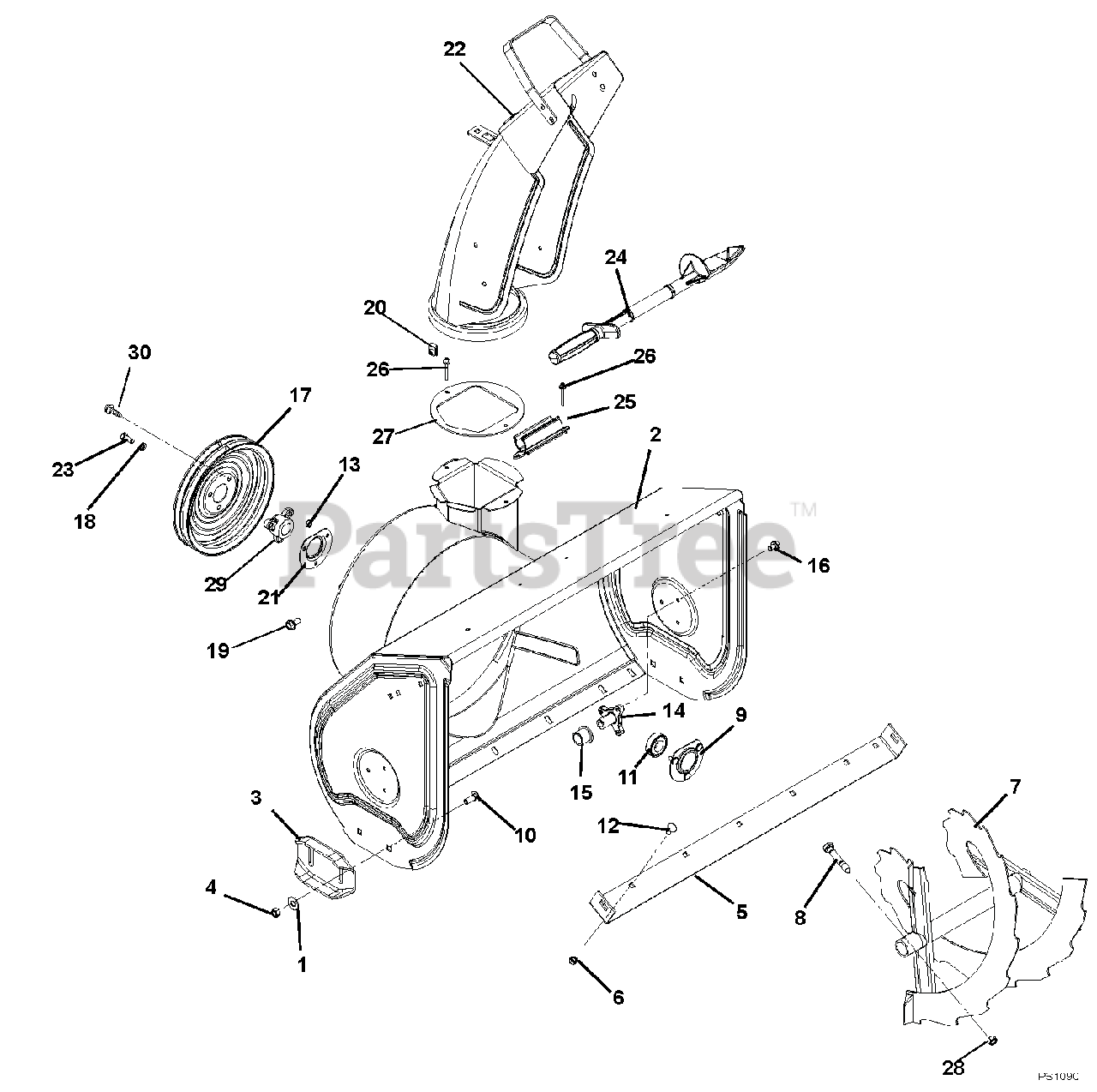

Auger And Chute Parts Diagram

  • Title

1

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

2

Ariens 52100700

HOUSING, BLOWER - 27" W/DECAL
(Superseded to 52101800)

$373.99

$

Usually ships in 4-12 days

0

3

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00660659

BLADE, SCRAPER-27"

$45.99

$

In Stock, only 1 left!

0

6

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00485951

RAKE, LEFT HAND-27" DELUXE
(Superseded to 52102800)

Note: (14" O.D.)

$134.99

$

Usually ships in 4-12 days

0

Ariens 00486051

RAKE, RIGHT HAND-27" DELUXE
(Superseded to 52102900)

Note: (14" O.D.)

$118.99

$

Usually ships in 4-12 days

0

8

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 28)

$2.99

$

In Stock, Qty 20+

0

9

Ariens 00428700

BEARING FLANGE

$18.99

$

Usually ships in 4-12 days

0

10

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$34.99

$

In Stock, Qty 8

0

12

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00659200

SUPPORT, RAKE BUSHING

$20.99

$

In Stock, Qty 20+

0

15

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 20+

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$39.99

$

In Stock, only 1 left!

0

18

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

19

Ariens 07400030

SCR-TAP.31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

21

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, only 3 left!

0

22

Ariens 52100500

CHUTE, DISCHARGE W/CAP & DECAL

$193.99

$

Usually ships in 4-12 days

0

23

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 12

0

25

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

26

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

27

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 00268701

PULLEY HUB, BOLT-ON D-BORE .87
(Superseded to 00268703)

$9.49

$

In Stock, Qty 6

0

30

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0
