921010 (ST 27 LE) - Ariens 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Handlebars And Controls Parts Diagram

27" Snow Blower, Briggs & Stratton

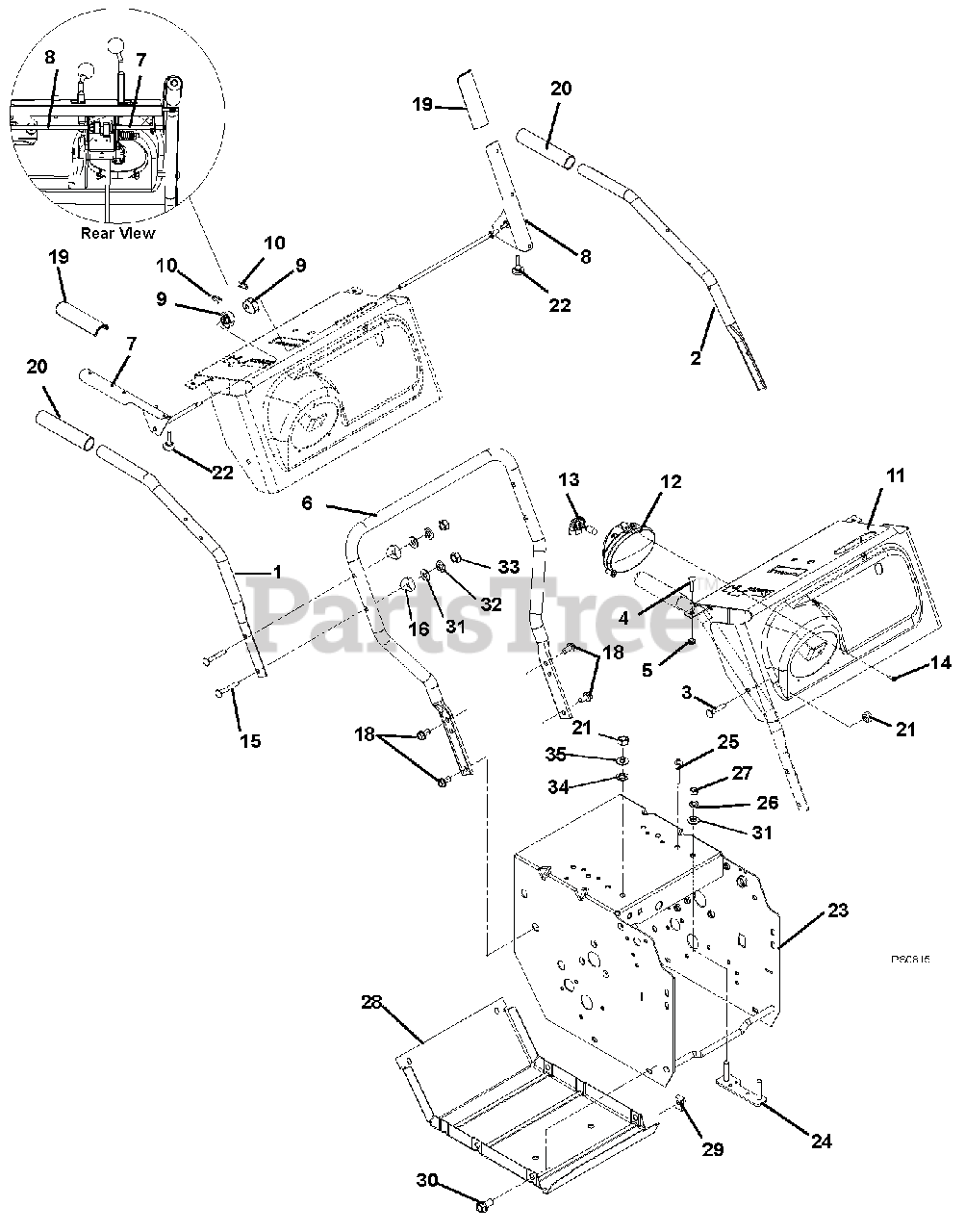

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 00428351

HANDLEBAR, UPPER-RH

$68.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

$75.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

6

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$183.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$56.99

$

In Stock, Qty 6

0

8

Ariens 00393151

LEVER, LH-TRACTION

$68.99

$

In Stock, only 2 left!

0

9

Ariens 02492100

CAM, INTERLOCK
(Superseded to 03888100)

$6.99

$

In Stock, Qty 11

0

10

Ariens 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

11

Ariens 52101300

CONTROL PANEL W/DECAL

$

$

Not available

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$18.99

$

In Stock, Qty 9

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

18

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

19

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500038

BUMPER, RUBBER - PULL MOUNT

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 03814959

WELDMENT, FRAME

$

$

Not available

24

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

$16.99

$

Usually ships in 4-12 days

0

25

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

26

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

27

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

28

Ariens 00492359

COVER, BOTTOM

$48.99

$

Usually ships in 4-12 days

0

29

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

32

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

34

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

35

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0
