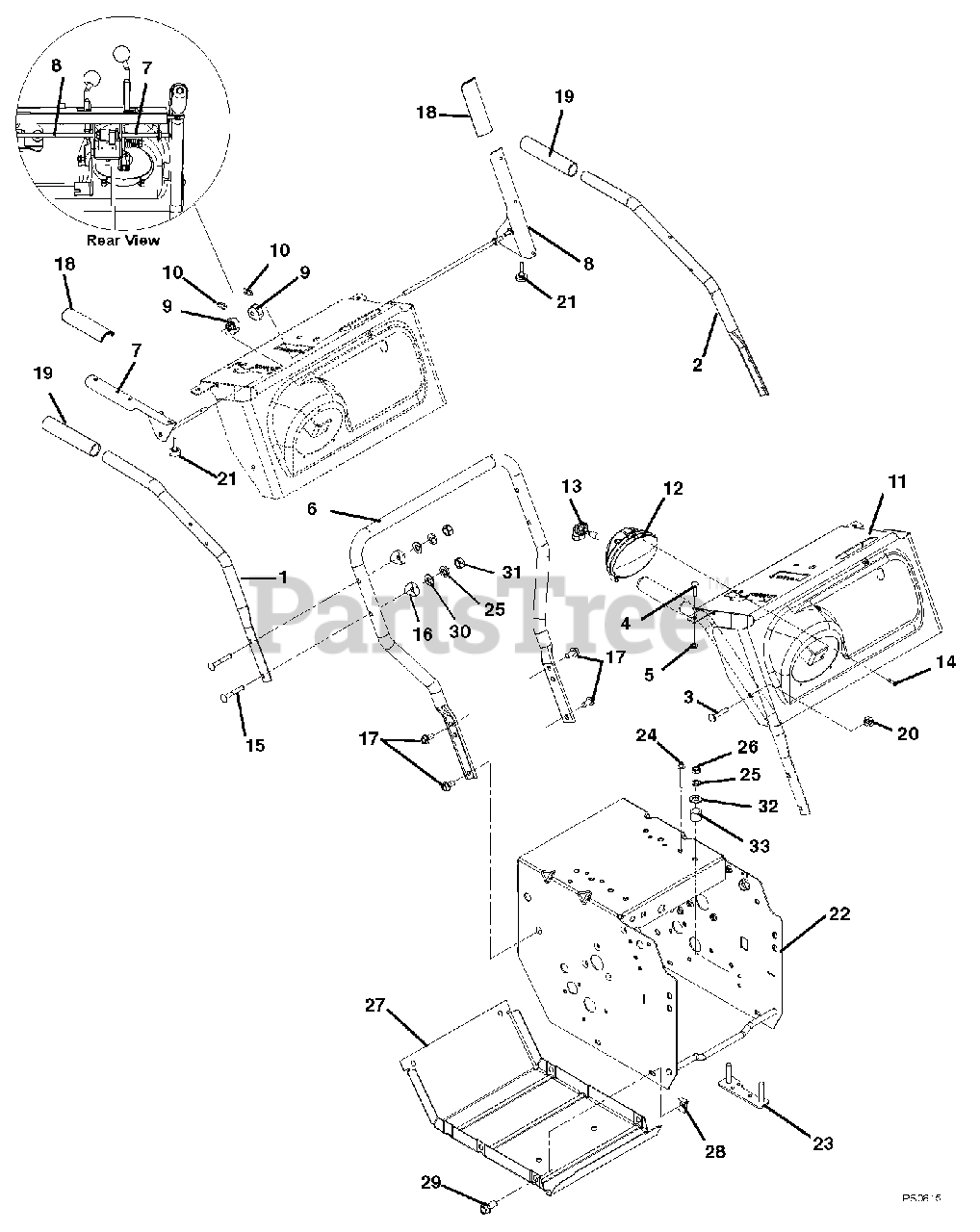

921012 - Ariens Deluxe 27" Snow Blower, Briggs & Stratton (SN: 000101 & Above) Handlebars And Controls Parts Diagram

Deluxe 27" Snow Blower, Briggs & Stratton

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 00428351

HANDLEBAR, UPPER-RH

Note: (921012, 013, 015, 016, 020, 305, 306, 307, 311, 312)

$69.99

$

Usually ships in 4-12 days

0

1

Ariens 52602000

HANDLEBAR, UPPER RH-W/HW

Note: (921017, 018)

$159.99

$

Usually ships in 4-12 days

0

2

Ariens 00428451

HANDLEBAR, UPPER-LH

Note: (921012, 013, 015, 016, 020, 305, 306, 307, 311, 312)

$76.99

$

Usually ships in 4-12 days

0

2

Ariens 52601900

HANDLEBAR, UPPER LH-W/HW

Note: (921017, 018)

$159.99

$

Usually ships in 4-12 days

0

3

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (921017, 018, 305, 306, 307)

$2.99

$

In Stock, only 2 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (921012, 013, 014, 015, 016, 020, 311, 312)

$2.99

$

In Stock, only 2 left!

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921017, 018, 305, 306, 307)

$1.49

$

In Stock, Qty 8

0

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921012, 013, 014, 015, 016, 020, 311, 312)

$1.49

$

In Stock, Qty 8

0

6

Ariens 00866251

HANDLEBAR, LOWER - DELUXE

$186.99

$

Usually ships in 4-12 days

0

7

Ariens 00393051

LEVER, RH-ATTACHMENT

$65.99

$

In Stock, only 2 left!

0

8

Ariens 00393151

LEVER, LH-TRACTION

$75.99

$

In Stock, only 2 left!

0

9

Ariens 03888100

CAM, INTERLOCK NYLON, LG DASH

$8.49

$

In Stock, only 2 left!

0

10

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

11

Ariens 52102200

CONTROL PANEL W/DECAL

Note: (921013, 020)

$143.99

$

Usually ships in 4-12 days

0

11

Ariens 52100400

DASH PANEL W/CONTROL DECAL

Note: (921017, 018)

$209.99

$

Usually ships in 4-12 days

0

11

Ariens 52101300

CONTROL PANEL W/DECAL

Note: (921012)

$

$

Not available

11

Ariens 52102000

CONTROL PANEL W/DECAL

Note: (921015)

$

$

Not available

11

Ariens 52102100

CONTROL PANEL W/DECAL

Note: (921305)

$

$

Not available

11

Ariens 52102300

CONTROL PANEL W/DECAL

Note: (921016, 311, 312)

$153.99

$

Usually ships in 4-12 days

0

11

Ariens 52102400

CONTROL PANEL W/DECAL

Note: (921306, 307)

$159.99

$

Usually ships in 4-12 days

0

12

Ariens 00432500

LIGHT, HALOGEN ASSY.

Note: (921012, 013, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$23.99

$

In Stock, only 2 left!

0

12

Ariens 03917500

LIGHT, HALOGEN ASSY 12W

Note: (921020)

$29.99

$

Usually ships in 4-12 days

0

13

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

Note: (921012, 013, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$17.99

$

In Stock, only 3 left!

0

13

Ariens 03917501

BULB, LIGHT, HALOGEN - 12W
(Superseded to 04676800)

Note: (921020)

$13.99

$

Usually ships in 4-12 days

0

14

Ariens 07416700

SCR-TAP 10-16X.75 HI-LO PPH

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, only 2 left!

0

16

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 5

0

17

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

18

Ariens 00384500

GRIP, CLUTCH LEVER, LH AND RH

$2.49

$

In Stock, Qty 7

0

19

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

Note: (921012, 013, 015, 016, 020, 305, 306, 307, 311, 312)

$3.99

$

In Stock, Qty 20+

0

20

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 07500038

BUMPER, RUBBER - PULL MOUNT

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 03884259

FRAME, 920/921

$263.99

$

Usually ships in 4-12 days

0

23

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

Note: (921012, 015, 017, 305, 311)

$21.99

$

Usually ships in 4-12 days

0

23

Ariens 00392000

STRAP, ENGINE BOLT-LARGE BRIGG

Note: (921013, 016, 018, 020, 306, 307, 312)

$17.99

$

Usually ships in 4-12 days

0

24

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

25

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

26

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

27

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

28

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

30

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (921012, 013, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (921020)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 05500937

BSHG-SLV .325X.400X.795

Note: (921020)

$3.99

$

Usually ships in 4-12 days

0
