921013 - Ariens Deluxe 30" Snow Blower, Briggs & Stratton (SN: 035000 - 074999) Wheels And Axles Parts Diagram

Deluxe 30" Snow Blower, Briggs & Stratton

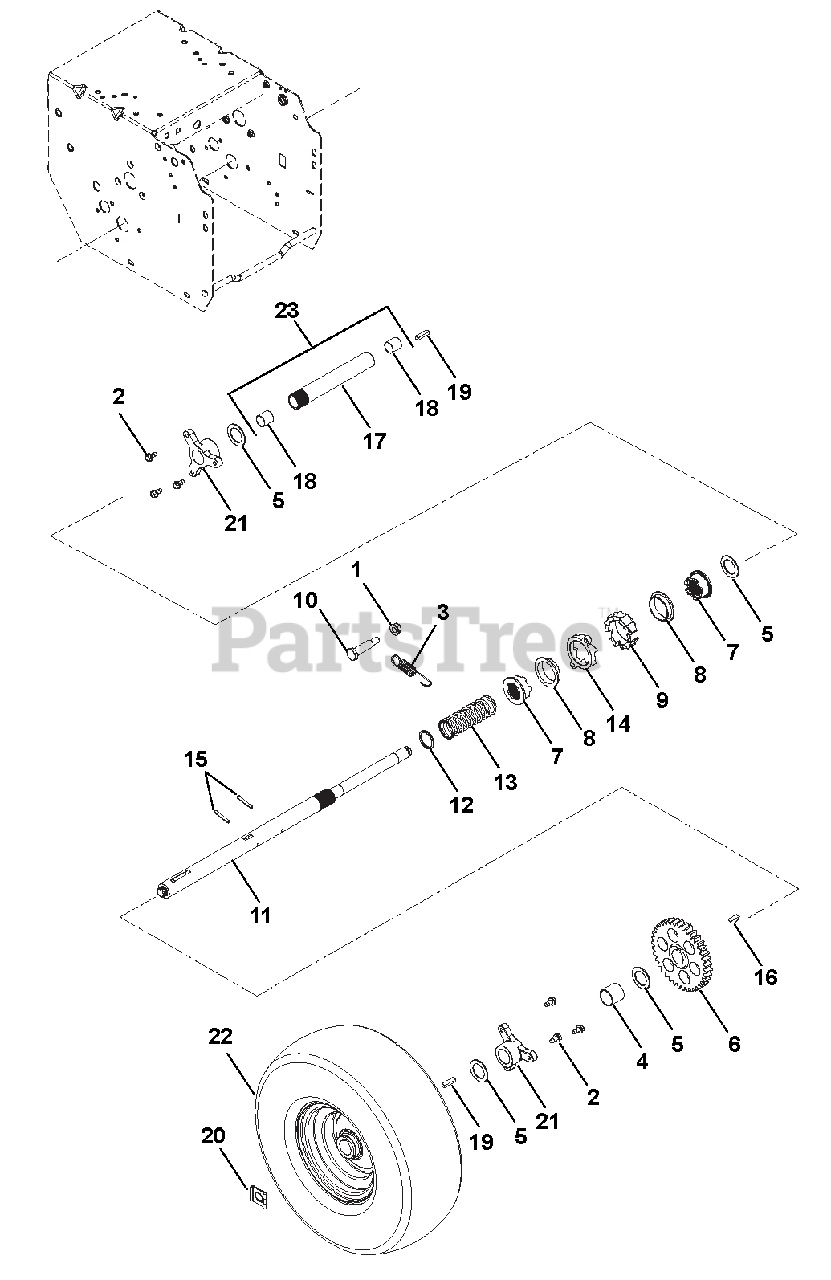

Wheels And Axles Parts Diagram

  • Title

1

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08300023

SG-TENS .06X.62X2.94

$9.99

$

In Stock, Qty 12

0

4

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 8

0

5

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 00371000

GEAR, SPUR

$54.99

$

Usually ships in 4-12 days

0

7

Ariens 00386900

CLUTCH, DOG - SLIDING

$21.99

$

In Stock, only 4 left!

0

8

Ariens 00391100

BUSHING, FLANGE

$2.49

$

In Stock, Qty 20+

0

9

Ariens 00387000

GEAR, RATCHET

$22.99

$

In Stock, only 1 left!

0

10

Ariens 05901432

BLT-SHLDR .50X1.52 .38-16X.635

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 00865600

AXLE, LONG - CLICKER

$263.99

$

In Stock, only 1 left!

0

12

Ariens 06400332

WSHR-FL-STL 1.010X1.250X.068YZ
(Superseded to 06401134)

$3.99

$

In Stock, Qty 5

0

13

Ariens 00427700

SPRING, COMPRESSION

$3.99

$

In Stock, only 3 left!

0

14

Ariens 00387100

GEAR, CLUTCH

$29.99

$

In Stock, only 1 left!

0

15

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 12

0

17

Ariens 00865700

AXLE, SHORT - CLICKER
(Superseded to 52101100)

Note: (Included in Item 23)

$112.99

$

In Stock, only 2 left!

0

18

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: (Included in Item 23)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

21

Ariens 05500829

BUSHING, AXLE

$10.99

$

In Stock, Qty 17

0

22

Ariens 07100917

TIRE/WHEEL,15X5-6 REMOTE K398A

$102.99

$

In Stock, only 3 left!

0

Ariens 07100815

TIRE, 15" K398A

$56.99

$

Usually ships in 4-12 days

0

23

Ariens 52101100

AXLE, CLICKER W/BUSHINGS

Note: (Includes Items 17 and 18)

$112.99

$

In Stock, only 2 left!

0
