921014 - Ariens Deluxe 24" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

Deluxe 24" Track Snow Blower, Briggs & Stratton

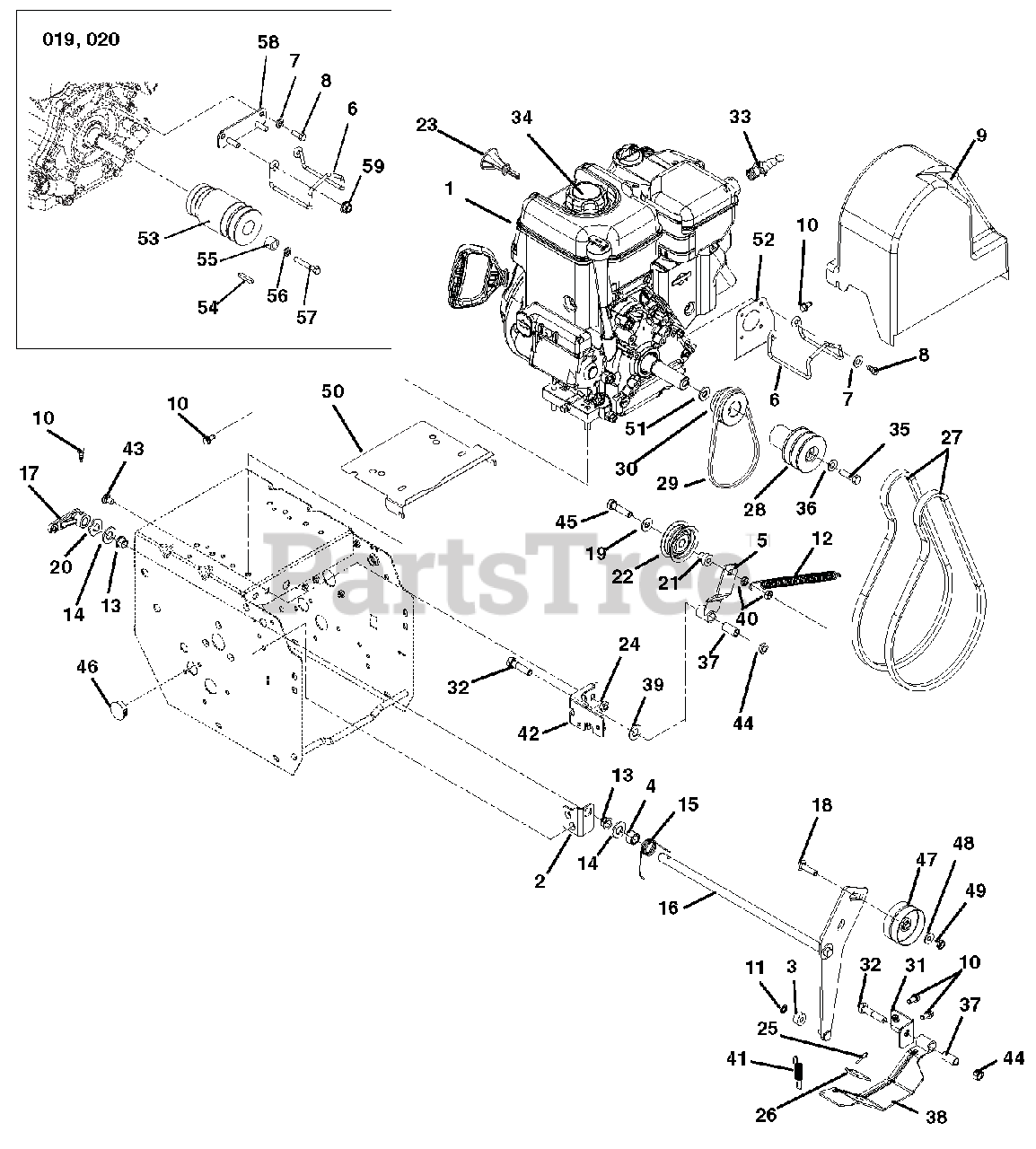

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 08200513

ENGINE, BRIGGS SNOW 1150, 120V

$

$

Not available

1

Ariens 08200508

ENGINE, BRIGGS SNOW 1150, 120V

Note: (011 - SN 003001 and up, 012 - SN 003500 and up (014, 015, 017)

$

$

Not available

1

Ariens 08200509

ENGINE, BRIGGS SNOW 1450, 120V

Note: (013, 016)

$

$

Not available

1

Ariens 08200510

ENGINE, BRIGGS SNOW 1650, 120V

Note: (018)

$

$

Not available

1

Ariens 08200515

ENGINE, SUBARU SX21 SNOW RECL

Note: (019)

$

$

Not available

1

Ariens 08200516

ENGINE, SUBARU SX30 SNOW 120V

Note: (020)

$

$

Not available

1

Ariens 08200502

ENGINE, BRIGGS SNOW 1150, 240V

Note: (305, 311)

$

$

Not available

1

Ariens 08200503

ENGINE, BRIGGS SNOW 1450, 240V

Note: (306, 312)

$

$

Not available

1

Ariens 08200504

ENGINE, BRIGGS SNOW 1650, 240V

Note: (307)

$

$

Not available

2

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$13.99

$

Usually ships in 4-12 days

0

3

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 16

0

5

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$17.99

$

Usually ships in 4-12 days

0

6

Ariens 03882100

FINGER, BELT

$23.99

$

In Stock, only 4 left!

0

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

9

Ariens 00659600

PLZ SEE SERVICE LETTER #L-2166

Note: (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)

$

$

Not available

9

Ariens 03965600

BELT COVER
(Superseded to 04084000)

Note: (020)

$35.99

$

In Stock, only 2 left!

0

10

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 5

0

12

Ariens 08300538

SPRING, SWIVEL HOOK EXTENSION

$15.99

$

In Stock, Qty 20+

0

13

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

14

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 9

0

15

Ariens 08300326

SG-TORS .075 X .955

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 02956700

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

17

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

18

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, Qty 8

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 7

0

21

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

22

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

23

Ariens 07500114

KEY, PUSH/PULL BRIGGS

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$

$

Not available

23

Ariens 07500117

KEY, PUSH/PULL SUBARU

Note: (019, 020)

$9.99

$

In Stock, only 3 left!

0

24

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (Included with item 38)

$1.49

$

In Stock, only 3 left!

0

26

Ariens 00180500

PAD, BRAKE

Note: (Included with item 38)

$10.99

$

In Stock, only 2 left!

0

27

Ariens 07200514

V-BELT, HA-RAW EDGE (SET)

Note: (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)

$60.99

$

In Stock, only 4 left!

0

27

Ariens 07200536

V-BELT, HA-RAW EDGE (SET)

Note: (020)

$62.99

$

In Stock, only 2 left!

0

28

Ariens 03876300

SHEAVE, ATTACHMENT 2-GRV
(Superseded to 52105700)

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$74.99

$

In Stock, only 1 left!

0

29

Ariens 07200111

V-BELT, 3L-WRAPPED

Note: (011, 012, 013, 014, 015, 016, 017, 018, 019, 305, 306, 307, 311, 312)

$24.99

$

In Stock, Qty 10

0

29

Ariens 07200522

V-BELT, 3L-WRAPPED
(Superseded to 07200717)

Note: (020)

$23.99

$

In Stock, Qty 5

0

30

Ariens 00659400

SHEAVE, DRIVE

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$29.99

$

Usually ships in 4-12 days

0

31

Ariens 00657551

BRACKET, BRAKE MOUNT

$18.99

$

Usually ships in 4-12 days

0

32

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

33

Ariens 21547500

PLUG, SPARK

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$

$

Not available

33

Ariens 21547200

PLUG, SPARK SUBARU

Note: (019, 020)

$3.99

$

In Stock, Qty 13

0

34

Ariens 07500115

CAP, FUEL - BRIGGS & STRATTON
(Superseded to 07500013)

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$17.99

$

In Stock, only 1 left!

0

34

Ariens 07500116

CAP, FUEL SUBARU

Note: (019, 020)

$45.99

$

Usually ships in 4-12 days

0

35

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$4.99

$

Usually ships in 4-12 days

0

36

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: (011, 012, 013, 014, 015, 016, 017, 018, 305, 306, 307, 311, 312)

$1.49

$

In Stock, Qty 17

0

37

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

38

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes items 25 and 26)

$23.99

$

In Stock, only 2 left!

0

39

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 5

0

41

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

$2.49

$

In Stock, Qty 16

0

42

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

43

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

44

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

46

Ariens 07500023

PLUG, HOLE - .875" NYLON

Note: (011, 012, 013, 017, 018, 019, 020, 305, 306, 307)

$1.99

$

Usually ships in 4-12 days

0

47

Ariens 07300515

IDLER, FLAT 2.75" DIA
(Superseded to 07333500)

$25.99

$

In Stock, only 2 left!

0

48

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

49

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

Note: (011, 012, 014, 015, 017, 019, 305, 311)

$65.99

$

Usually ships in 4-12 days

0

51

Ariens 03880751

BAFFLE, BRIGGS MDL 20/21 WATER

Note: (013, 016, 018, 020, 306, 307, 312)

$19.99

$

Usually ships in 4-12 days

0

51

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

Note: (013, 016, 018, 020, 306, 307, 312)

$4.99

$

In Stock, Qty 20+

0

52

Ariens 03815251

BAFFLE, PRIMARY WATER

Note: (013, 016, 018, 306, 307, 312)

$

$

Not available

53

Ariens 03972900

SHEAVE, ENGINE - SUBARU ES21

Note: (019)

$

$

Not available

53

Ariens 03974300

SHEAVE, ENGINE - SUBARU ES30

Note: (020)

$

$

Not available

54

Ariens 06609600

KEY-SQ .188X1.50X.188

Note: (019)

$2.99

$

Usually ships in 4-12 days

0

54

Ariens 06610300

KEY .25X.25X2.25

Note: (020)

$3.49

$

In Stock, Qty 10

0

55

Ariens 03973000

BUSHING, SLEEVE

Note: (019)

$

$

Not available

55

Ariens 05500938

BSHG-SPACER .47X1.25X.50

Note: (020)

$13.99

$

Usually ships in 4-12 days

0

56

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

Note: (019)

$0.99

$

In Stock, Qty 5

0

56

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

Note: (020)

$2.99

$

In Stock, only 2 left!

0

57

Ariens 05901416

@BLT-HEX .31-24X2.50 GR5 YWZC

Note: (019)

$

$

Not available

58

Ariens 03964600

PLATE, BELT FINGER MOUNT

Note: (020)

$22.99

$

Usually ships in 4-12 days

0

59

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (020)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

Note: (020)

$6.49

$

In Stock, only 2 left!

0
